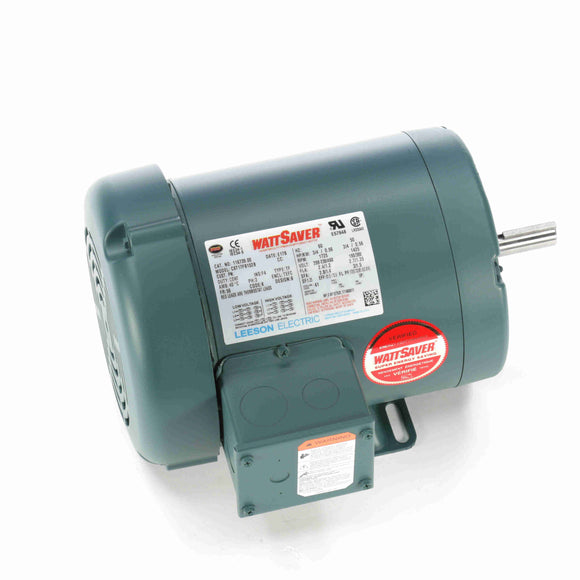

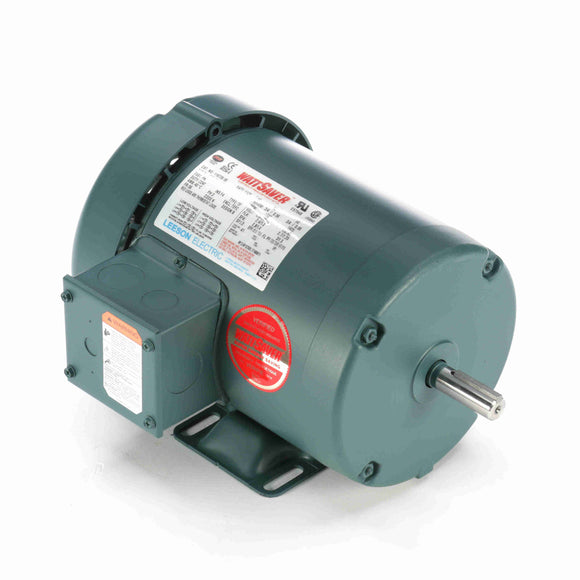

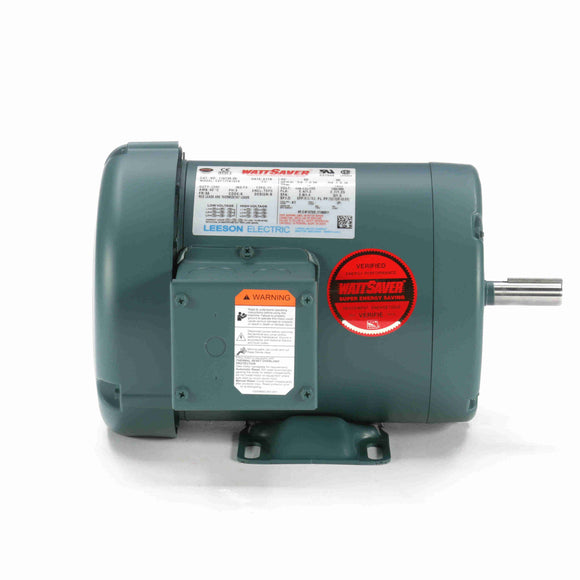

116739.00 Leeson 3/4HP Wattsaver General Purpose Electric Motor, 1725RPM

$565.97 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116739.00 Barcode: 691720347997

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56 Frame, 208-230/460VAC 3-Phase 60Hz, C6T17FB152B, Rigid Base, Rolled Steel, 5/8" Keyed Shaft, Wattsaver

Description Product Specs Manufacturer





Features




Features


  • Standard, EPAct efficient ratings

  • Inverter-rated; Continuous duty

  • Class B insulation systems – 42, 48 and 56 frames

  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications

  • Dynamically balanced rotors

  • Dynamically balanced rotors

  • Torques exceed NEMA performance standards; UL recognized and CSA certified






General Specifications





General Specifications






























Model :
C6T17FB152B
Catalog No :
116739.00

Part Description :
..3/4HP..1725RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.25SF.RIGID.C6T17FB152B.....WATTSAVER.AUTOMATIC.......
Category :
Totally Enclosed Fan Cooled (TEFC)

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
0.75 HP
Output KW :
0.56 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
2.4/1.2 A
Speed :
1725 RPM

Service Factor :
1.25
Phase :
3

Efficiency :
81.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
K
Frame :
56

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
Automatic

Ambient Temperature :
40 °C
Drive End Bearing Size :
6203

Opp Drive End Bearing Size :
6203
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
43






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line

Poles :
4
Rotation :
Reversible

Mounting :
Rigid base
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Rolled Steel
Shaft Type :
NEMA 56

Overall Length :
11.48 in
Frame Length :
6.00 in

Shaft Diameter :
0.625 in
Shaft Extension :
1.88 in

Assembly/Box Mounting :
F1 ONLY
UPC :
691720347997

Weight :
31.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Pull-Up
0.00 0.0 104.00 289.0 0 0.00 0.0 0.75

Break-Down
0.00 0.0 136.00 378.0 0 0.00 0.0 0.75

Full Load
2.40 0.0 36.00 100.0 0 0.00 0.0 0.75

Locked-Rotor
15.90 0.0 106.00 294.0 0 0.00 0.0 0.75





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 0.70

  • 0.065

  • 0.0

  • 11.7

  • 1,799

  • 0.0

  • 0.00





  • 25 %

  • 0.71

  • 0.199

  • 71.8

  • 35.2

  • 1,787

  • 0.0

  • 9.00





  • 50 %

  • 0.83

  • 0.357

  • 79.5

  • 54.3

  • 1,775

  • 0.0

  • 18.00





  • 75 %

  • 0.98

  • 0.520

  • 81.2

  • 66.6

  • 1,760

  • 0.0

  • 27.00





  • 100 %

  • 1.19

  • 0.683

  • 81.6

  • 72.3

  • 1,744

  • 32.0

  • 36.00





  • 125 %

  • 1.38

  • 0.859

  • 80.5

  • 78.4

  • 1,730

  • 0.0

  • 45.00





  • 150 %

  • 1.59

  • 1.036

  • 79.3

  • 82.0

  • 1,713

  • 0.0

  • 54.00








  • 208VAC
  • 230VAC
  • 460VAC
  • Electric Motor
  • 56
  • TEFC
  • 3/4HP
  • 1725RPM
