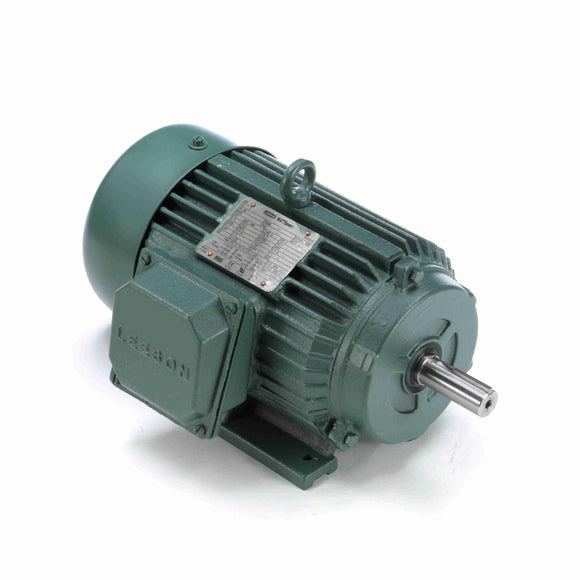

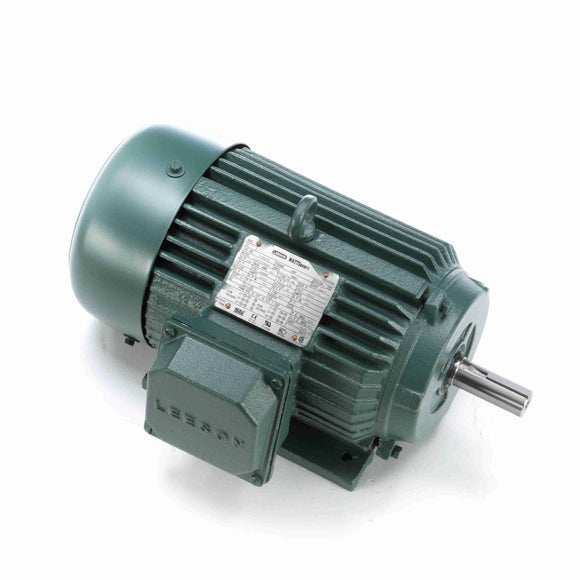

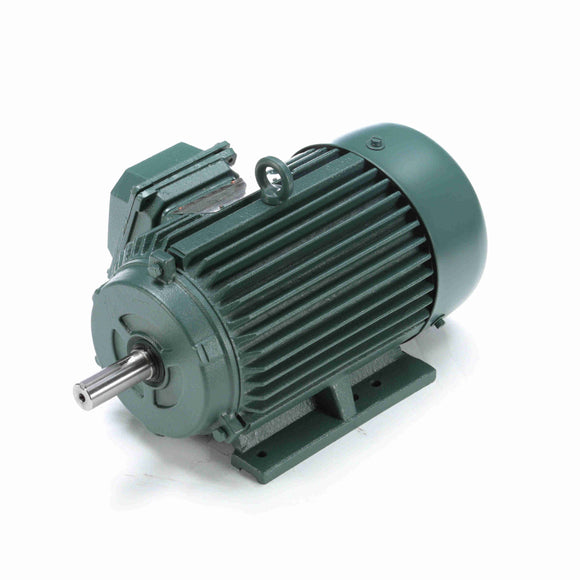

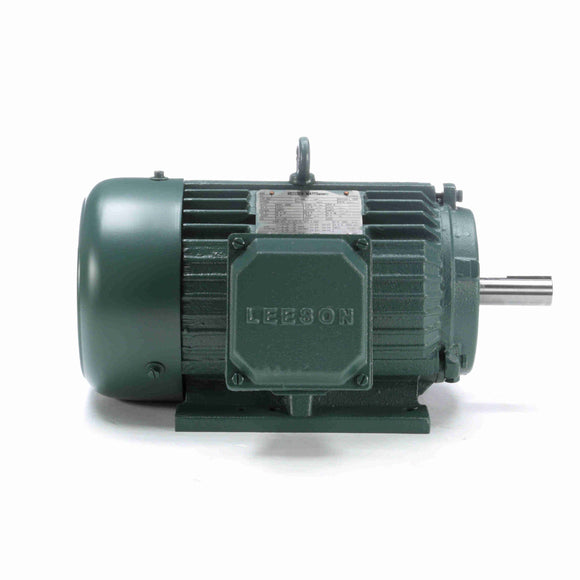

171640.60 Leeson 1HP General Purpose Electric Motor, 1725RPM

$707.97 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 171640.60 Barcode: 691720827512

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 143T Frame, 230/460VAC 3-Phase 60Hz, C145T17FB25AA, Rigid Base, Cast Iron, 7/8" Keyed Shaft

Description Product Specs Manufacturer





Features




Features


  • Premium efficient ratings

  • Inverter-rated; Continuous duty

  • Class F insulation system – 140 frame and higher

  • Class F insulation system – 140 frame and higher

  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications

  • Dynamically balanced rotors

  • Torques exceed NEMA performance standards; UL recognized and CSA certified






General Specifications





General Specifications






























Model :
C145T17FB25AA
Catalog No :
171640.60

Part Description :
1HP..1725RPM.143T.TEFC.230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID..
Category :
Totally Enclosed Fan Cooled (TEFC)

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
1 HP
Output KW :
0.75 kW

Frequency :
60 Hz
Voltage :
230/460 V

Current :
3.2/1.6 A
Speed :
1755 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
85.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
L
Frame :
145T

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6205

Opp Drive End Bearing Size :
6205
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
43






Technical Specifications





Technical Specifications






















































Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter

Poles :
4
Rotation :
Reversible

Mounting :
Rigid base
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Cast Iron
Shaft Type :
T

Overall Length :
13.46 in
Shaft Diameter :
0.875 in

Shaft Extension :
2.25 in
Assembly/Box Mounting :
F1/F2 CAPABLE

UPC :
691720827512
Weight :
61.00 LB






Speed & Load Characteristics





Speed Characteristics










































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Pull-Up
12.00 750.0 9.90 495.0 265 54.0 1.00

Break-Down
7.90 494.0 12.40 620.0 1,275 73.5 1.00

Full Load
1.60 100.0 2.00 100.0 1,755 67.0 1.00

Locked-Rotor
12.30 769.0 10.70 535.0 0 53.5 1.00

No Load
1.10 69.0 0.00 1,800 7.0 1.00





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 1.10

  • 0.060

  • 0.0

  • 7.0

  • 1,800

  •

  • 0.00





  • 25 %

  • 1.10

  • 0.250

  • 72.0

  • 29.0

  • 1,790

  •

  • 0.74





  • 50 %

  • 1.20

  • 0.450

  • 82.5

  • 46.0

  • 1,780

  •

  • 1.50





  • 75 %

  • 1.40

  • 0.650

  • 85.5

  • 58.5

  • 1,765

  •

  • 2.20





  • 100 %

  • 1.60

  • 0.860

  • 85.5

  • 67.0

  • 1,755

  • 22.5

  • 2.00





  • 115 %

  • 1.80

  • 1.000

  • 85.5

  • 71.0

  • 1,745

  • 26.5

  • 3.50





  • 125 %

  • 1.90

  • 1.100

  • 85.5

  • 73.0

  • 1,740

  • 29.0

  • 3.80








  • Electric Motor
  • 143T
  • TEFC
  • 1HP
  • 1725RPM
