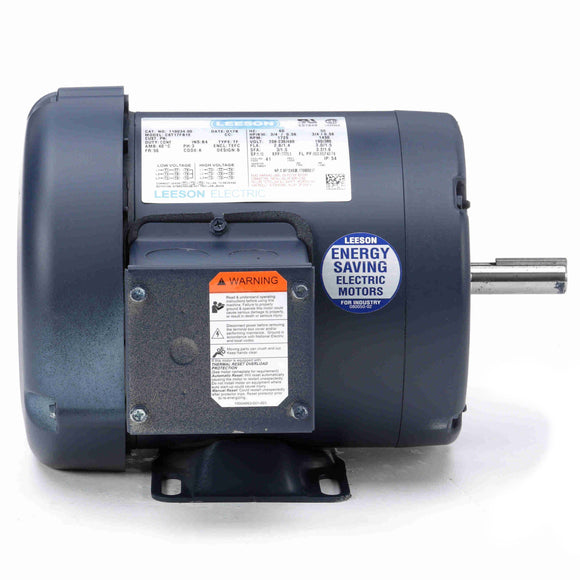

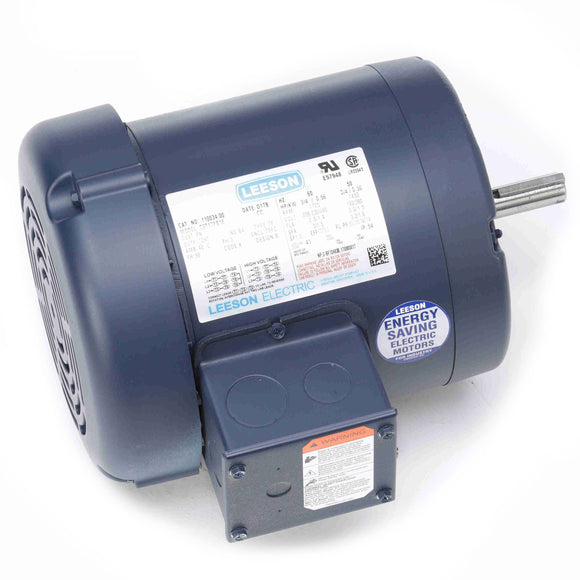

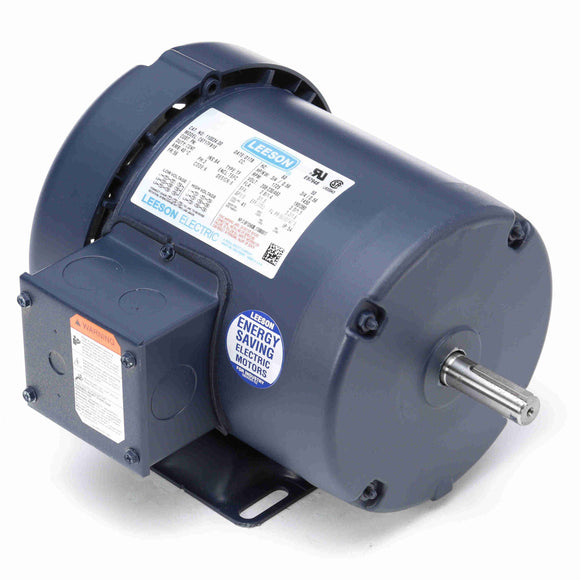

110034.00 Leeson 3/4HP General Purpose Electric Motor, 1725RPM

$424.97 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 110034.00 Barcode: 691720007525

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56 Frame, 208-230/460VAC 3-Phase 60Hz, C6T17FB1E, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Description Product Specs Manufacturer





Features




Features


  • Standard, EPAct efficient ratings

  • Inverter-rated; Continuous duty

  • Class B insulation systems – 42, 48 and 56 frames

  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications

  • Dynamically balanced rotors

  • Dynamically balanced rotors

  • Torques exceed NEMA performance standards; UL recognized and CSA certified






General Specifications





General Specifications






























Model :
C6T17FB1E
Catalog No :
110034.00

Part Description :
3/4HP..1725RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C6T17FB1E
Category :
Totally Enclosed Fan Cooled (TEFC)

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
0.75 HP
Output KW :
0.56 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
2.8/1.4 A
Speed :
1725 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
77 %
Duty :
Continuous

Insulation Class :
B
Design Code :
B

KVA Code :
K
Frame :
56

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6203

Opp Drive End Bearing Size :
6203
UL :
Recognized

CSA :
Y
CE :
N

IP Code :
54






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line

Poles :
4
Rotation :
Reversible

Mounting :
Rigid Base
Motor Orientation :
Horizontal

Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball

Frame Material :
Rolled Steel
Shaft Type :
NEMA 56

Overall Length :
10.48 in
Frame Length :
5.00 in

Shaft Diameter :
0.625 in
Shaft Extension :
1.88 in

Assembly/Box Mounting :
F1 ONLY
UPC :
691720007525

Weight :
25.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Locked-Rotor
8.10 106.00 294.0 0 0.75

Full Load
1.40 36.00 100.0 1,746 0.75

Pull-Up
0.00 103.00 286.0 0 0.75

Break-Down
0.00 134.00 372.0 0 0.75





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 1.10

  • 0.114

  • 0.0

  • 13.0

  • 1,798

  • 0.0

  • 0.00





  • 25 %

  • 1.14

  • 0.260

  • 54.9

  • 28.6

  • 1,787

  • 0.0

  • 9.00





  • 50 %

  • 1.19

  • 0.403

  • 70.4

  • 42.5

  • 1,774

  • 0.0

  • 18.00





  • 75 %

  • 1.28

  • 0.558

  • 75.6

  • 54.7

  • 1,760

  • 0.0

  • 27.00





  • 100 %

  • 1.39

  • 0.721

  • 77.4

  • 65.1

  • 1,746

  • 60.0

  • 36.00





  • 125 %

  • 1.56

  • 0.871

  • 79.4

  • 70.1

  • 1,730

  • 0.0

  • 45.00





  • 150 %

  • 1.77

  • 1.076

  • 76.3

  • 76.3

  • 1,711

  • 0.0

  • 54.00








  • 208VAC
  • 230VAC
  • 460VAC
  • Electric Motor
  • 56
  • TEFC
  • 3/4HP
  • 1725RPM
