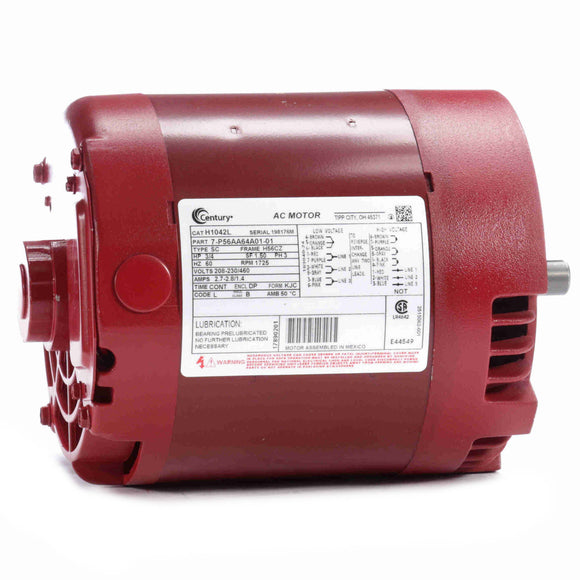

H1042L Century 3/4HP Circulator Pump Electric Motor, 1800RPM

$559.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: H1042L Barcode: 786674022615

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 56CZ Frame, 208-230/460VAC 60Hz 3-Phase, 7-P56AA64A01-01, Rolled Steel, C-Face, Round Body, 5/8"

Description Product Specs Manufacturer





Features






  • Reversible

  • Cushion ring, no base and C-face

  • No protector





General Specifications























UPC: 786674022615 Weight: 21.00 LB
Packaged Length: 14 IN Packaged Width: 8 IN
Packaged Height: 8.5 IN


Nameplate Specifications



























































Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 2.7-2.8/1.4 A Speed: 1725 rpm
Service Factor: 1.5 Phase: 3
Duty: Continuous Insulation Class: B
Frame: H56CZ Enclosure: Drip Proof
Thermal Protection: None Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N


Technical Specifications















































Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 9.25 in
Frame Length: 4.13 in Shaft Diameter: 0.625 in
Shaft Extension: 1.25 in


  • 208VAC
  • 230VAC
  • 460VAC
  • Electric Motor
  • 56CZ
  • ODP
  • 3-Phase
  • 3/4HP
  • 1800RPM
