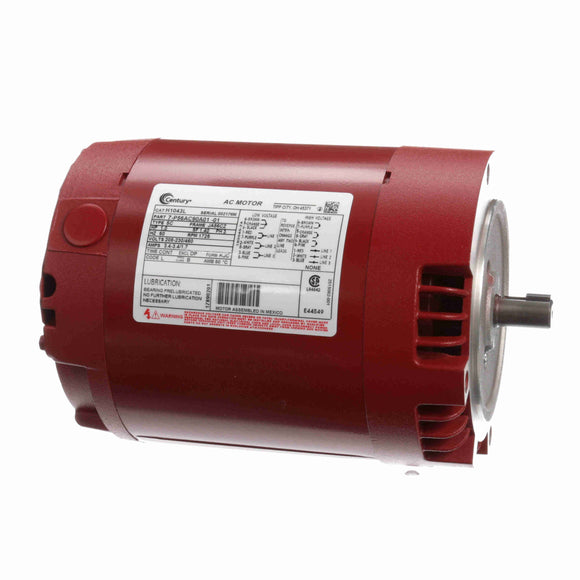

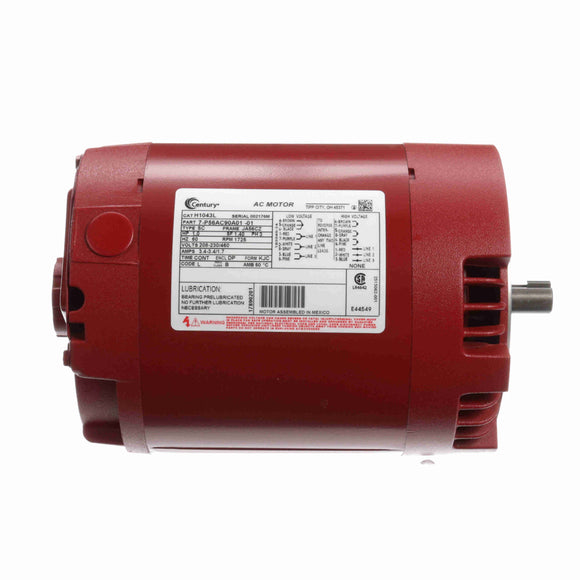

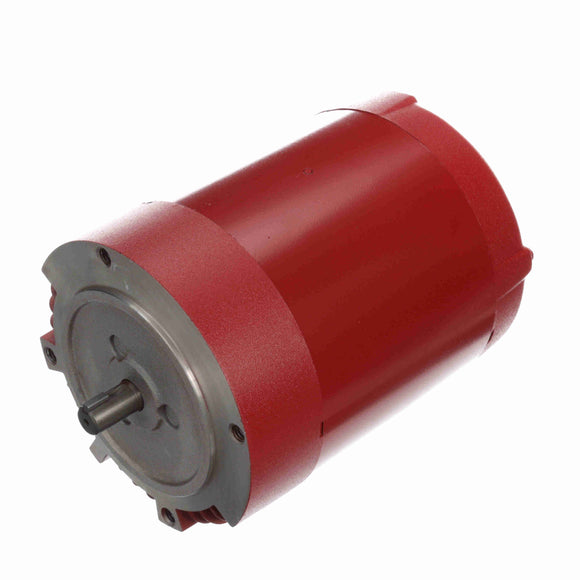

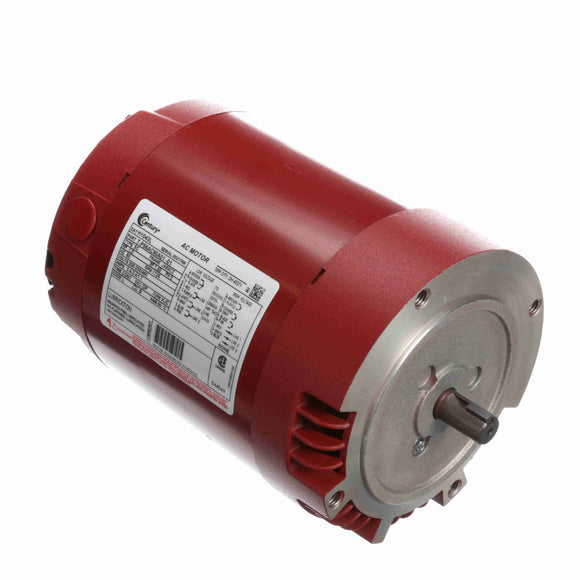

H1043L Century 1HP Circulator Pump Electric Motor, 1725RPM
H1043L Century 1HP Circulator Pump Electric Motor, 1725RPM
H1043L Century 1HP Circulator Pump Electric Motor, 1725RPM
H1043L Century 1HP Circulator Pump Electric Motor, 1725RPM

H1043L Century 1HP Circulator Pump Electric Motor, 1725RPM

$419.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: H1043L Barcode: 786674056993

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 56CZ Frame, 208-230/460VAC 60Hz 3-Phase, 7-P56AC90A01-01, Rolled Steel, Round Body, 5/8" Keyed Shaft

Description Product Specs Manufacturer





Features






  • Reversible

  • Cushion ring, no base and C-face

  • No protector





General Specifications























UPC: 786674056993 Weight: 25.00 LB
Packaged Length: 13 IN Packaged Width: 10 IN
Packaged Height: 10 IN


Nameplate Specifications



























































Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 3.4-3.4/1.7 A Speed: 1725 rpm
Service Factor: 1.4 Phase: 3
Duty: Continuous Insulation Class: B
Frame: JA56CZ Enclosure: Drip Proof
Thermal Protection: None Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N


Technical Specifications















































Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 10.25 in
Frame Length: 5.13 in Shaft Diameter: 0.625 in
Shaft Extension: 1.25 in


Enclosure
  • ODP
Frame Size
  • 56CZ
Horsepower
  • 1HP
Input Phase
  • 3-Phase
Input Voltage
  • 208VAC
  • 230VAC
  • 460VAC
Speed
  • 1725RPM
Type
  • Electric Motor
UPC
  • 786674056993
Weight
  • 25.0 lb

Century Electric Motor (Regal Rexnord)
