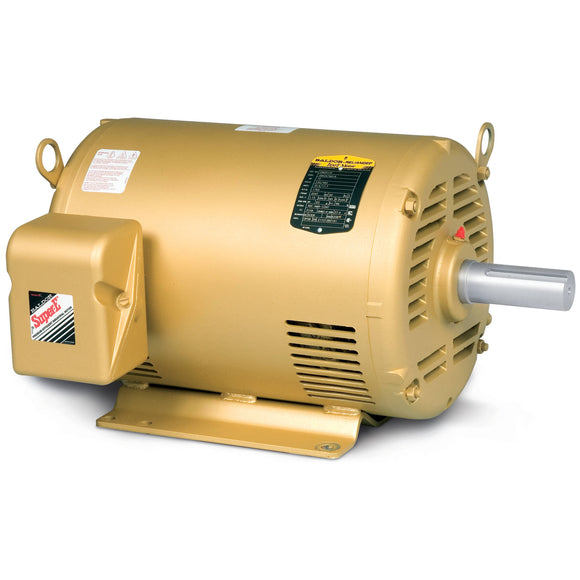

EM2532T Baldor 25HP Electric Motor, 1180RPM

$5,383.67 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EM2532T Barcode: 781568105016

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 324T Frame, 230/460VAC 60Hz 3-Phase, 4072M, Foot Mounted, Rolled Steel, 2-1/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Catalog NumberEM2532T
EnclosureOPSB
Frame324T
Frame MaterialSteel
Frequency60.00 Hz
Output @ Frequency25.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1200 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage70.000 A @ 208.0 V
68.000 A @ 230.0 V
34.000 A @ 460.0 V
Design CodeA
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load93.0 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps34.0 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassF
Inverter CodeInverter Ready
IP RatingNONE
KVA CodeJ
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size9 @ 10 AWG
Motor Type4072M
Mounting ArrangementF1
Number of Poles6
Overall Length27.69 IN
Power Factor76
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter2.125 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1180 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Fans
  • Pumps
  • Blowers
  • Conveyors
  • Compressors
  • Industrial machines
  • Other general purpose applications

Features

  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2
  • Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
  • Optimized airflow design providing higher horsepower in a smaller package

Nameplate

Nameplate

CAT.NO. EM2532T P/N ENCLOSURE OPSB
SPEC. 40E212X192 CC 010A FRAME 324T S/N
HP 25 CLASS F HZ 60
RPM 1180 PH 3 DES A
VOLT 230/460 KVA-CODE J ODE BRG 6309 DE BRG 6312
AMP 68/34 USABLE AT 208V 70
RATING 40C AMB-CONT GREASE POLYREX EM
NEMA-NOM-EFF 93 PF 76 SER.F. 1.15
50Hz 25Hp 190/380V 78/39A SF 1.0
HTR-VOLTS HTR-AMPS
NP2138LUA

Performance

Performance

Performance at 460 V, 60 Hz, 25 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C0.312 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load40° C
Temp. Rise @ S.F. Load48° C
Start ConfigurationDOL
Break-Down Torque410 LB-FT
Pull-Up Torque205 LB-FT
Locked-Rotor Torque217 LB-FT
Starting Current236 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 4.0 36.0 57.0 70.0 76.0 79.0 80.0 78.0
Efficiency 0.0 87.0 91.2 92.4 92.7 92.3 91.5 92.5
Speed (RPM) 1,199 1,196 1,192 1,188 1,185 1,181 1,176 1,183
Line Amps 16.70 18.50 22.30 27.40 33.50 40.30 47.80 37.60
