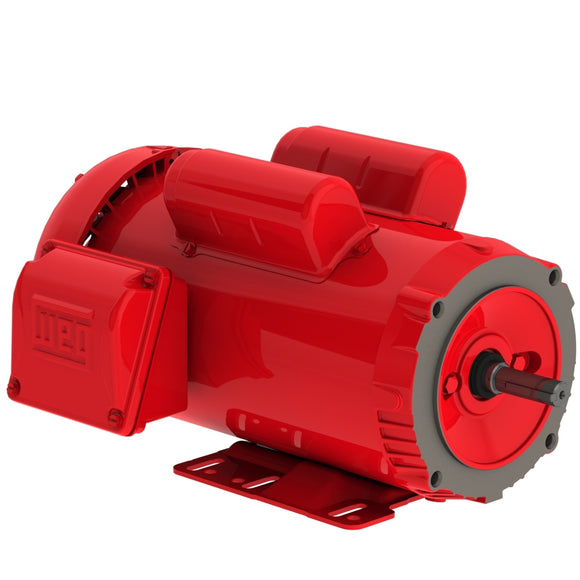

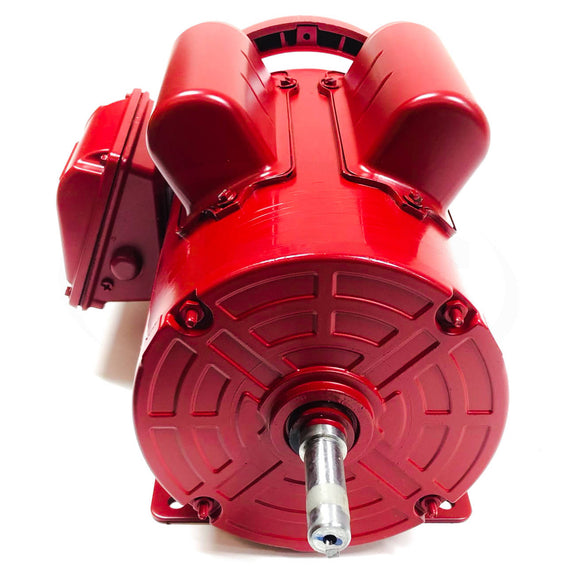

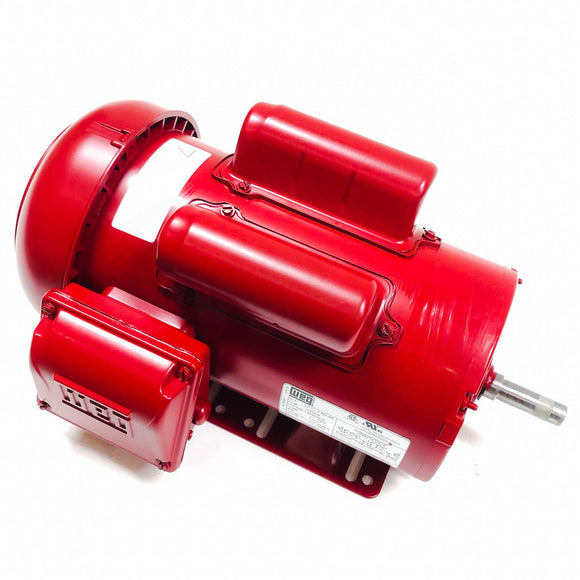

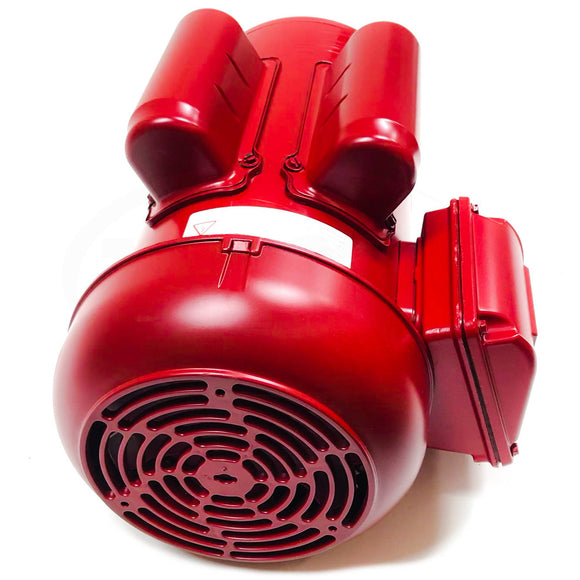

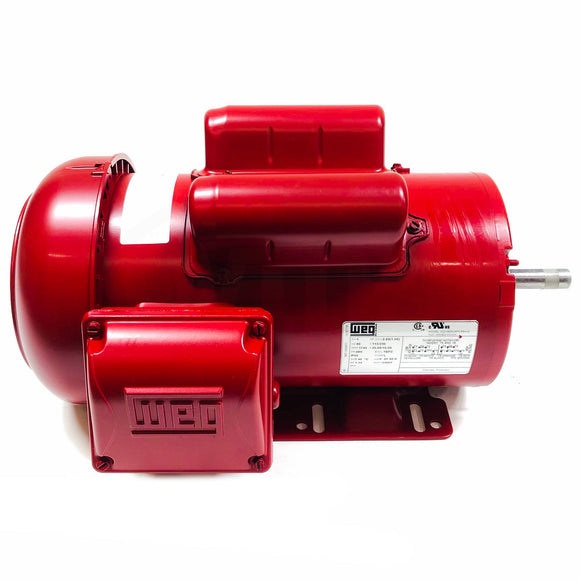

Electric Motors
| Frame | 56H |
|---|---|
| Output | 2 HP (1.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1745 rpm |
| Slip | 3.06 % |
| Rated voltage | 115/230 V |
| Rated current | 20.0/10.0 A |
| L. R. Amperes | 160/80.0 A |
| LRC | 8.0x(Code L) |
| No load current | 12.2/6.10 A |
| Rated torque | 5.94 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 260 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 0.1614 sq.ft.lb |
|---|---|
| Design | L |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 54.0 dB(A) |
| Approx. weight³ | 51.8 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 70.0 | 76.0 | 78.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.66 | 0.76 | 0.82 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 0.881" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | |
| Grounding Lugs | Single |
| Fan Cover material | Plastic |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
Bearing details
| Drive End | Non Drive End | |
|---|---|---|
| Bearing type | 6204 2RS | 6202 2RS |
| Sealing | V'Ring | V'Ring |
| Lubrication interval | - | - |
| Lubricant amount | - | - |
| Grease Type | Mobil Polyrex EM |
Foundation loads
| Max. traction | Max. compression |
|---|---|
| 126 lb | 177 lb |
