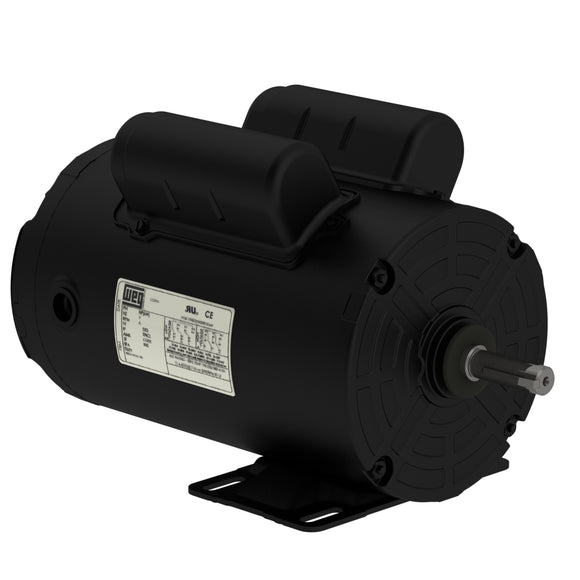

Features
- Capacitor start/capacitor run design for reduced amperage
- Designed for 50 Hz operation
- Fully Gasketed
- Shaft ext 3-13/16" L by 5/8" dia., 3.5" keyway
General Specifications
| UPC: | 722856028143 | Weight: | 49.00 LB |
| Packaged Length: | 15.14 IN | Packaged Width: | 10.19 IN |
| Packaged Height: | 9.5 IN |
Nameplate Specifications
| Output HP: | 1.5 Hp | Output KW: | 1.1 kW |
| Frequency: | 60 Hz | Voltage: | 115/208-230 V |
| Current: | 14.0,7.2-7.0 A | Speed: | 1725 rpm |
| Service Factor: | 1.3 | Phase: | 1 |
| Efficiency: | 78.5 % | Power Factor: | 0 |
| Duty: | Continuous | Insulation Class: | B |
| KVA Code: | K | Frame: | 56 |
| Enclosure: | Totally Enclosed Non Ventilated | Thermal Protection: | AUTO |
| Ambient Temperature: | 40 °C | Drive End Bearing Size: | 6203 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Yes | CE: | N |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | SM |
| Poles: | 4 | Rotation: | Counterclockwise/Clockwise |
| Mounting: | Resilient Base | Motor Orientation: | ANY |
| Drive End Bearing: | BALL | Opp Drive End Bearing: | BALL |
| Frame Material: | Rolled Steel | Overall Length: | 13.96 in |
| Frame Length: | 9.63 in | Shaft Diameter: | 0.63 in |
| Shaft Extension: | 1.88 in |
