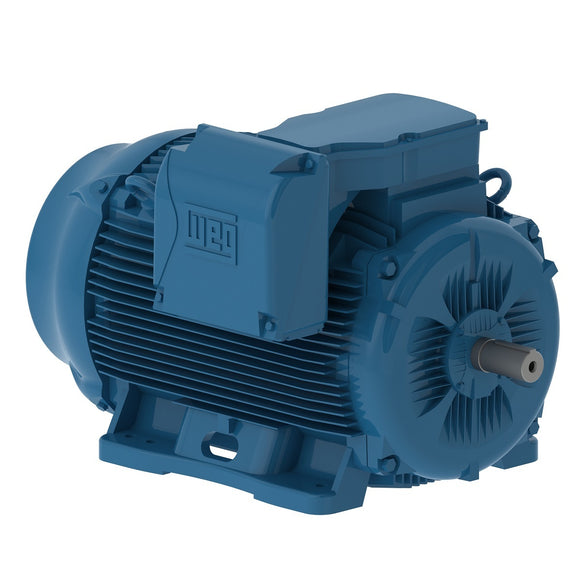

25012ET3G586/7-W22 WEG 250HP Severe Duty Electric Motor, 1200RPM

$35,271.59 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 25012ET3G586/7-W22 Barcode: 7891327156579

30 Day
Return Policy

Ships Fast
in 24 hours

IC411 - TEFC, IP55, 586T/587T Frame, 460VAC 60Hz 3 Phase, 11440692, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-7/8" Keyed Shaft

Description Product Specs Manufacturer






Electric Motors







































Frame 586/7T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1190 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 299 A
L. R. Amperes 1824 A
LRC 6.1x(Code G)
No load current 120 A
Rated torque 1100 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 54s (cold) 30s (hot)




































Moment of inertia (J) 226 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 77.0 dB(A)
Approx. weight³ 3462 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.0
95.4
95.8



Power factor















50% 75% 100%

0.68
0.77
0.81









































Frame 586/7T
Output 220 HP (160 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 310 A
L. R. Amperes 1705 A
LRC 5.5x(Code F)
No load current 118 A
Rated torque 1170 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 45s (cold) 25s (hot)




































Moment of inertia (J) 226 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 3462 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.8
95.3
95.6



Power factor















50% 75% 100%

0.69
0.79
0.82









































Frame 586/7T
Output 220 HP (160 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 298 A
L. R. Amperes 1818 A
LRC 6.1x(Code G)
No load current 128 A
Rated torque 1170 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 45s (cold) 25s (hot)




































Moment of inertia (J) 226 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 3462 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.9
95.5
95.6



Power factor















50% 75% 100%

0.65
0.77
0.81









































Frame 586/7T
Output 220 HP (160 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 291 A
L. R. Amperes 1892 A
LRC 6.5x(Code G)
No load current 137 A
Rated torque 1170 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 45s (cold) 25s (hot)




































Moment of inertia (J) 226 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 3462 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

94.5
95.4
95.6



Power factor















50% 75% 100%

0.62
0.74
0.80









































Frame 586/7T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 361 A
L. R. Amperes 1733 A
LRC 4.8x(Code E)
No load current 118 A
Rated torque 1330 ft.lb
Locked rotor torque 140 %
Breakdown torque 170 %
Locked rotor time 45s (cold) 25s (hot)




































Moment of inertia (J) 226 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 3462 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.4
95.0
95.0



Power factor















50% 75% 100%

0.74
0.80
0.82









































Frame 586/7T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 400 V
Rated current 341 A
L. R. Amperes 1841 A
LRC 5.4x(Code F)
No load current 128 A
Rated torque 1330 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 45s (cold) 25s (hot)




































Moment of inertia (J) 226 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 3462 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.4
95.4
95.4



Power factor















50% 75% 100%

0.70
0.78
0.82









































Frame 586/7T
Output 250 HP (185 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 333 A
L. R. Amperes 1931 A
LRC 5.8x(Code F)
No load current 137 A
Rated torque 1330 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 45s (cold) 25s (hot)




































Moment of inertia (J) 226 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 3462 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

95.0
95.4
95.4



Power factor















50% 75% 100%

0.67
0.76
0.81






Features














































Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Space Heater Voltage 200 - 240 V
Main terminal box hole 2xNPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12





  • 460VAC
  • Electric Motor
  • 586T/587T
  • TEFC
  • 3-Phase
  • 250HP
  • 1200RPM
  • Severe Duty
