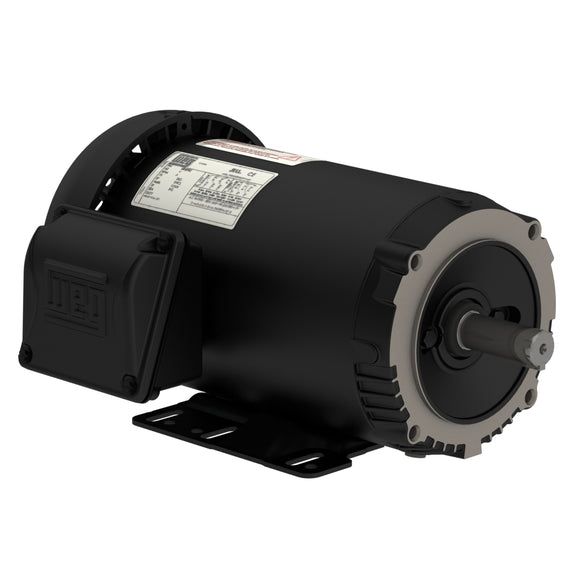

00236ET3E145TC-S WEG 2HP General Purpose Electric Motor, 3600RPM

$436.59 $539.00 Save $102.41

Shipping calculated at checkout

WEG Electric Corporation SKU: 00236ET3E145TC-S Barcode: 7909158532582

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 4.94/2.47 A
L. R. Amperes 48.9/24.5 A
LRC 9.9x(Code L)
No load current 2.13/1.06 A
Rated torque 2.98 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 40.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  85.5  85.5

Power factor

50% 75% 100%
0.73  0.83  0.89
Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2875 rpm
Slip 4.17 %
Rated voltage 190/380 V
Rated current 5.94/2.97 A
L. R. Amperes 44.0/22.0 A
LRC 7.4x(Code J)
No load current 2.10/1.05 A
Rated torque 3.65 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 40.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.6  83.3

Power factor

50% 75% 100%
0.79  0.88  0.92
Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 220/415 V
Rated current 5.39/2.86 A
L. R. Amperes 44.2/23.5 A
LRC 8.2x(Code K)
No load current 2.14/1.13 A
Rated torque 3.63 ft.lb
Locked rotor torque 260 %
Breakdown torque 310 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1279 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 40.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
83.7  84.9  84.1

Power factor

50% 75% 100%
0.76  0.86  0.90

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
