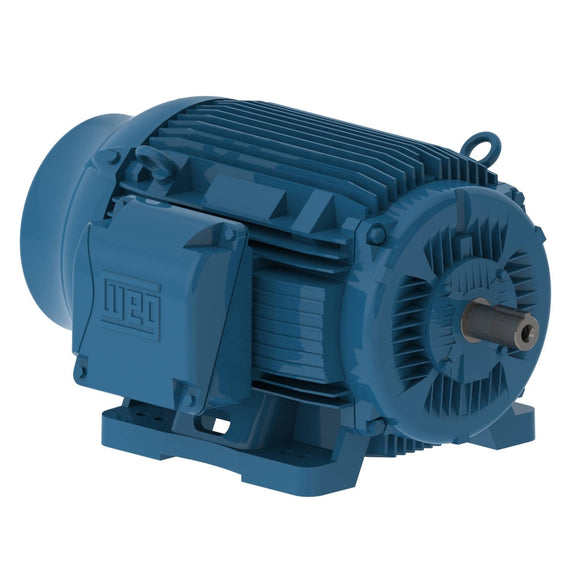

07512ET3H405T-W22 WEG 75HP Severe Duty Electric Motor, 1200RPM

$9,766.98 $12,058.00 Save $2,291.02

Shipping calculated at checkout

WEG Electric Corporation SKU: 07512ET3H405T-W22 Barcode: 7894171484942

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1184 rpm
Slip 1.33 %
Rated voltage 575 V
Rated current 67.9 A
L. R. Amperes 435 A
LRC 6.4x(Code G)
No load current 24.0 A
Rated torque 333 ft.lb
Locked rotor torque 229 %
Breakdown torque 229 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1188 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  94.5

Power factor

50% 75% 100%
0.74  0.83  0.86

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 4140 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
