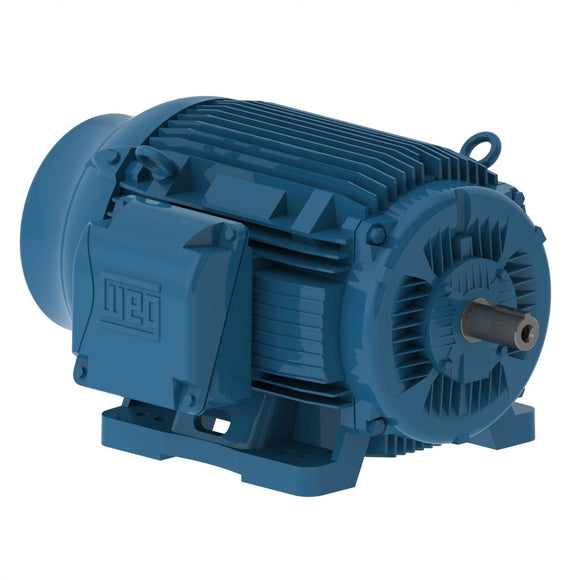

Electric Motors
| Frame | 444/5T |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 8 |
| Frequency | 60 Hz |
| Rated speed | 890 rpm |
| Slip | 1.11 % |
| Rated voltage | 230/460 V |
| Rated current | 187/93.4 A |
| L. R. Amperes | 1196/598 A |
| LRC | 6.4x(Code H) |
| No load current | 80.0/40.0 A |
| Rated torque | 443 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 200 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 73.6 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 1489 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
93.0 |
93.6 |
93.6 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.64 |
0.74 |
0.79 |
| Frame | 444/5T |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 740 rpm |
| Slip | 1.33 % |
| Rated voltage | 380 V |
| Rated current | 95.5 A |
| L. R. Amperes | 525 A |
| LRC | 5.5x(Code G) |
| No load current | 39.3 A |
| Rated torque | 426 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 210 % |
| Locked rotor time | 72s (cold) 40s (hot) |
| Moment of inertia (J) | 73.6 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 1489 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
92.6 |
93.0 |
93.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.56 |
0.69 |
0.77 |
| Frame | 444/5T |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 740 rpm |
| Slip | 1.33 % |
| Rated voltage | 400 V |
| Rated current | 95.8 A |
| L. R. Amperes | 565 A |
| LRC | 5.9x(Code H) |
| No load current | 43.6 A |
| Rated torque | 426 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 229 % |
| Locked rotor time | 64s (cold) 36s (hot) |
| Moment of inertia (J) | 73.6 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 1489 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.3 |
92.6 |
92.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.52 |
0.65 |
0.73 |
| Frame | 444/5T |
|---|---|
| Output | 60 HP (45 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 740 rpm |
| Slip | 1.33 % |
| Rated voltage | 415 V |
| Rated current | 94.9 A |
| L. R. Amperes | 607 A |
| LRC | 6.4x(Code J) |
| No load current | 47.0 A |
| Rated torque | 426 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 250 % |
| Locked rotor time | 61s (cold) 34s (hot) |
| Moment of inertia (J) | 73.6 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 1489 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.2 |
92.5 |
92.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.49 |
0.62 |
0.71 |
| Frame | 444/5T |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 735 rpm |
| Slip | 2.00 % |
| Rated voltage | 380 V |
| Rated current | 114 A |
| L. R. Amperes | 536 A |
| LRC | 4.7x(Code E) |
| No load current | 39.3 A |
| Rated torque | 536 ft.lb |
| Locked rotor torque | 140 % |
| Breakdown torque | 170 % |
| Locked rotor time | 46s (cold) 26s (hot) |
| Moment of inertia (J) | 73.6 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 1489 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.5 |
91.7 |
91.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.70 |
0.77 |
0.80 |
| Frame | 444/5T |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 735 rpm |
| Slip | 2.00 % |
| Rated voltage | 400 V |
| Rated current | 109 A |
| L. R. Amperes | 567 A |
| LRC | 5.2x(Code F) |
| No load current | 43.6 A |
| Rated torque | 536 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 190 % |
| Locked rotor time | 46s (cold) 26s (hot) |
| Moment of inertia (J) | 73.6 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 1489 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
92.0 |
92.4 |
92.4 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.66 |
0.75 |
0.79 |
| Frame | 444/5T |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 740 rpm |
| Slip | 1.33 % |
| Rated voltage | 415 V |
| Rated current | 106 A |
| L. R. Amperes | 604 A |
| LRC | 5.7x(Code G) |
| No load current | 47.0 A |
| Rated torque | 532 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 210 % |
| Locked rotor time | 48s (cold) 27s (hot) |
| Moment of inertia (J) | 73.6 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 1489 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
92.0 |
92.4 |
92.4 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.63 |
0.73 |
0.78 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | 2xNPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
