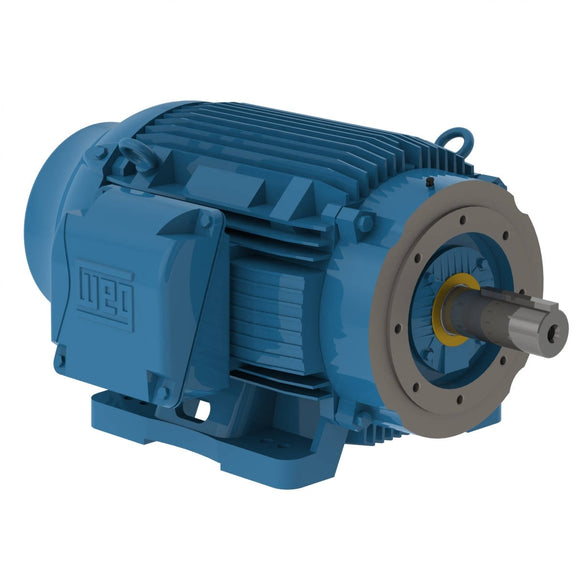

05009ST3QIE404TC-W22 WEG 50HP Severe Duty Electric Motor, 900RPM

$16,083.36 USD $19,856.00 USD Save $3,772.64 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 05009ST3QIE404TC-W22 Barcode: 7899058010153

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 404/5TC
Output 50 HP (37 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 460 V
Rated current 60.0 A
L. R. Amperes 408 A
LRC 6.8x(Code H)
No load current 25.0 A
Rated torque 298 ft.lb
Locked rotor torque 170 %
Breakdown torque 260 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 1012 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  93.0

Power factor

50% 75% 100%
0.68  0.78  0.83
Frame 404/5TC
Output 40 HP (30 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 58.6 A
L. R. Amperes 375 A
LRC 6.4x(Code G)
No load current 24.7 A
Rated torque 290 ft.lb
Locked rotor torque 170 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1012 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.9  92.3  91.3

Power factor

50% 75% 100%
0.65  0.78  0.84
Frame 404/5TC
Output 40 HP (30 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 56.8 A
L. R. Amperes 398 A
LRC 7.0x(Code H)
No load current 26.4 A
Rated torque 288 ft.lb
Locked rotor torque 200 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1012 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.8  92.2  91.7

Power factor

50% 75% 100%
0.63  0.76  0.82
Frame 404/5TC
Output 40 HP (30 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 56.1 A
L. R. Amperes 421 A
LRC 7.5x(Code J)
No load current 28.0 A
Rated torque 288 ft.lb
Locked rotor torque 229 %
Breakdown torque 310 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1012 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.8  92.2  91.8

Power factor

50% 75% 100%
0.60  0.73  0.80
Frame 404/5TC
Output 50 HP (37 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 720 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 73.3 A
L. R. Amperes 374 A
LRC 5.1x(Code E)
No load current 24.7 A
Rated torque 365 ft.lb
Locked rotor torque 140 %
Breakdown torque 200 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1012 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  91.7  90.2

Power factor

50% 75% 100%
0.74  0.82  0.85
Frame 404/5TC
Output 50 HP (37 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 69.9 A
L. R. Amperes 398 A
LRC 5.7x(Code F)
No load current 26.4 A
Rated torque 362 ft.lb
Locked rotor torque 160 %
Breakdown torque 229 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 1012 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  91.7  91.0

Power factor

50% 75% 100%
0.71  0.80  0.84
Frame 404/5TC
Output 50 HP (37 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 68.2 A
L. R. Amperes 423 A
LRC 6.2x(Code G)
No load current 28.0 A
Rated torque 362 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 34.6 sq.ft.lb
Design B
Insulation Class F
