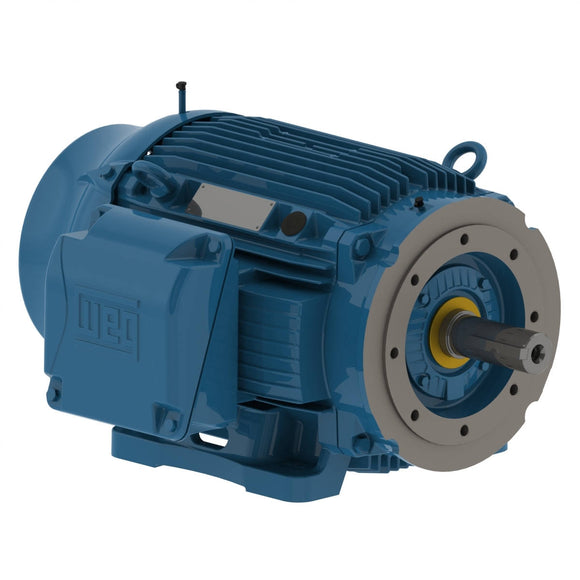

Electric Motors
| Frame | 364/5TC |
|---|---|
| Output | 40 HP (30 kW) |
| Number of Poles | 8 |
| Frequency | 60 Hz |
| Rated speed | 882 rpm |
| Slip | 2.00 % |
| Rated voltage | 460 V |
| Rated current | 50.9 A |
| L. R. Amperes | 300 A |
| LRC | 5.9x(Code G) |
| No load current | 21.5 A |
| Rated torque | 238 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 210 % |
| Locked rotor time | 46s (cold) 26s (hot) |
| Moment of inertia (J) | 29.0 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 914 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
92.4 |
93.0 |
92.4 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.65 |
0.75 |
0.80 |
| Frame | 364/5TC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 735 rpm |
| Slip | 2.00 % |
| Rated voltage | 380 V |
| Rated current | 47.8 A |
| L. R. Amperes | 292 A |
| LRC | 6.1x(Code H) |
| No load current | 20.7 A |
| Rated torque | 214 ft.lb |
| Locked rotor torque | 600 % |
| Breakdown torque | 240 % |
| Locked rotor time | 81s (cold) 45s (hot) |
| Moment of inertia (J) | 29.0 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 914 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.5 |
91.6 |
90.9 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.60 |
0.71 |
0.77 |
| Frame | 364/5TC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 736 rpm |
| Slip | 1.87 % |
| Rated voltage | 400 V |
| Rated current | 46.3 A |
| L. R. Amperes | 310 A |
| LRC | 6.7x(Code J) |
| No load current | 22.2 A |
| Rated torque | 214 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 270 % |
| Locked rotor time | 52s (cold) 29s (hot) |
| Moment of inertia (J) | 29.0 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 914 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.5 |
91.9 |
91.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.55 |
0.68 |
0.75 |
| Frame | 364/5TC |
|---|---|
| Output | 30 HP (22 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 737 rpm |
| Slip | 1.73 % |
| Rated voltage | 415 V |
| Rated current | 45.7 A |
| L. R. Amperes | 324 A |
| LRC | 7.1x(Code J) |
| No load current | 23.4 A |
| Rated torque | 214 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 300 % |
| Locked rotor time | 52s (cold) 29s (hot) |
| Moment of inertia (J) | 29.0 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 914 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
90.9 |
91.8 |
91.7 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.52 |
0.65 |
0.73 |
| Frame | 364/5TC |
|---|---|
| Output | 40 HP (30 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 725 rpm |
| Slip | 3.33 % |
| Rated voltage | 380 V |
| Rated current | 62.9 A |
| L. R. Amperes | 283 A |
| LRC | 4.5x(Code E) |
| No load current | 20.7 A |
| Rated torque | 290 ft.lb |
| Locked rotor torque | 140 % |
| Breakdown torque | 180 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 29.0 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 914 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.7 |
91.0 |
89.5 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.70 |
0.78 |
0.81 |
| Frame | 364/5TC |
|---|---|
| Output | 40 HP (30 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 727 rpm |
| Slip | 3.07 % |
| Rated voltage | 400 V |
| Rated current | 60.0 A |
| L. R. Amperes | 300 A |
| LRC | 5.0x(Code F) |
| No load current | 22.2 A |
| Rated torque | 289 ft.lb |
| Locked rotor torque | 160 % |
| Breakdown torque | 200 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 29.0 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 914 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.7 |
91.7 |
90.2 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.66 |
0.76 |
0.80 |
| Frame | 364/5TC |
|---|---|
| Output | 40 HP (30 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 730 rpm |
| Slip | 2.67 % |
| Rated voltage | 415 V |
| Rated current | 58.1 A |
| L. R. Amperes | 320 A |
| LRC | 5.5x(Code G) |
| No load current | 23.4 A |
| Rated torque | 288 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 210 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 29.0 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 914 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
|
91.7 |
91.7 |
91.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
|
0.62 |
0.74 |
0.79 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Regreasing System | Stainless Steel, at Drive end and Non-drive end |
| Main terminal box hole | NPT 3" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Type T, Threaded |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | According to IEEE-841 (96h) |
| Joints Seal | Molykote |
| Foot flatness | (0.005 pol) 0.127 mm |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Connection Cables Quantity | 3 |
| Fan material | Conductive Plastic |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | Inpro/Seal |
| DE bearing Seal | Inpro/Seal |
