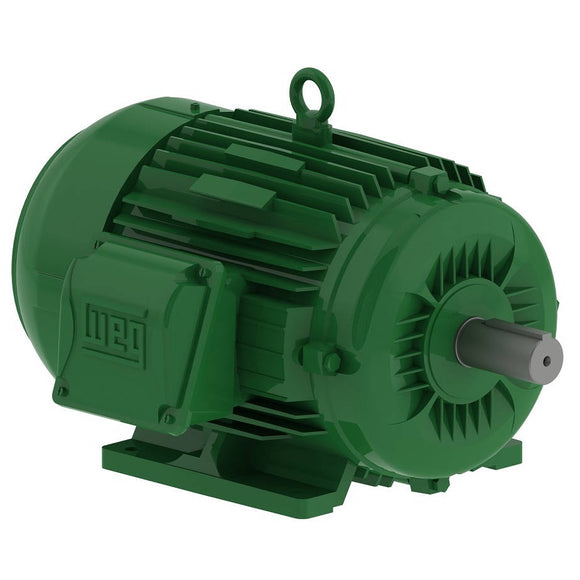

00336EG3E182T-W22 WEG 3HP Electric Motor, 3600RPM

$679.59 $839.00 Save $159.41

Shipping calculated at checkout

WEG Electric Corporation SKU: 00336EG3E182T-W22 Barcode: 7909158389520

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 7.34/3.67 A
L. R. Amperes 62.4/31.2 A
LRC 8.5x(Code K)
No load current 2.20/1.10 A
Rated torque 4.48 ft.lb
Locked rotor torque 240 %
Breakdown torque 360 %
Locked rotor time 90s (cold) 50s (hot)
Moment of inertia (J) 0.1920 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 97.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  86.5  88.5

Power factor

50% 75% 100%
0.70  0.81  0.85
Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 4.32 A
L. R. Amperes 32.0 A
LRC 7.4x(Code H)
No load current 1.00 A
Rated torque 5.43 ft.lb
Locked rotor torque 220 %
Breakdown torque 330 %
Locked rotor time 68s (cold) 38s (hot)
Moment of inertia (J) 0.1920 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 97.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.0  86.5  88.0

Power factor

50% 75% 100%
0.74  0.83  0.88
Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 4.14 A
L. R. Amperes 33.5 A
LRC 8.1x(Code J)
No load current 1.10 A
Rated torque 5.41 ft.lb
Locked rotor torque 250 %
Breakdown torque 370 %
Locked rotor time 68s (cold) 38s (hot)
Moment of inertia (J) 0.1920 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 97.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  88.2

Power factor

50% 75% 100%
0.72  0.82  0.87
Frame 182/4T
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2920 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 4.04 A
L. R. Amperes 34.7 A
LRC 8.6x(Code K)
No load current 1.20 A
Rated torque 5.40 ft.lb
Locked rotor torque 280 %
Breakdown torque 400 %
Locked rotor time 68s (cold) 38s (hot)
Moment of inertia (J) 0.1920 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 97.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  88.2

Power factor

50% 75% 100%
0.69  0.80  0.86

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 6002 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
