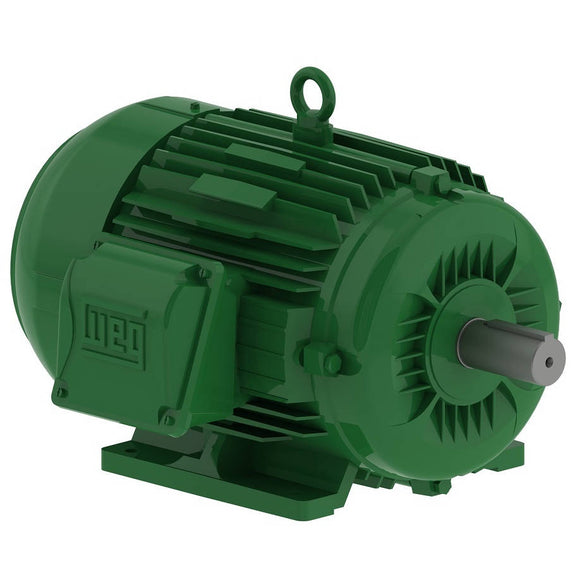

00218EG3EL145T-W22 WEG 2HP Electric Motor, 1800RPM

$545.13 $673.00 Save $127.87

Shipping calculated at checkout

WEG Electric Corporation SKU: 00218EG3EL145T-W22 Barcode: 7891327884632

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame L143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 5.26/2.63 A
L. R. Amperes 45.2/22.6 A
LRC 8.6x(Code L)
No load current 3.08/1.54 A
Rated torque 5.97 ft.lb
Locked rotor torque 290 %
Breakdown torque 360 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.1815 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 58.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  87.5  88.5

Power factor

50% 75% 100%
0.61  0.74  0.81
Frame L143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 3.10 A
L. R. Amperes 21.1 A
LRC 6.8x(Code H)
No load current 1.59 A
Rated torque 7.24 ft.lb
Locked rotor torque 220 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.1815 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 58.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  86.5

Power factor

50% 75% 100%
0.69  0.79  0.85
Frame L143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 3.02 A
L. R. Amperes 22.3 A
LRC 7.4x(Code J)
No load current 1.65 A
Rated torque 7.22 ft.lb
Locked rotor torque 250 %
Breakdown torque 320 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.1815 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 58.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  86.5

Power factor

50% 75% 100%
0.64  0.78  0.83
Frame L143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 2.91 A
L. R. Amperes 22.7 A
LRC 7.8x(Code K)
No load current 1.76 A
Rated torque 7.19 ft.lb
Locked rotor torque 270 %
Breakdown torque 350 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.1815 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 58.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  87.5  87.5

Power factor

50% 75% 100%
0.61  0.74  0.82

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 6002 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
