| range of product |
Harmony XB4 Harmony XB5 |
|
|---|---|---|
| product or component type |

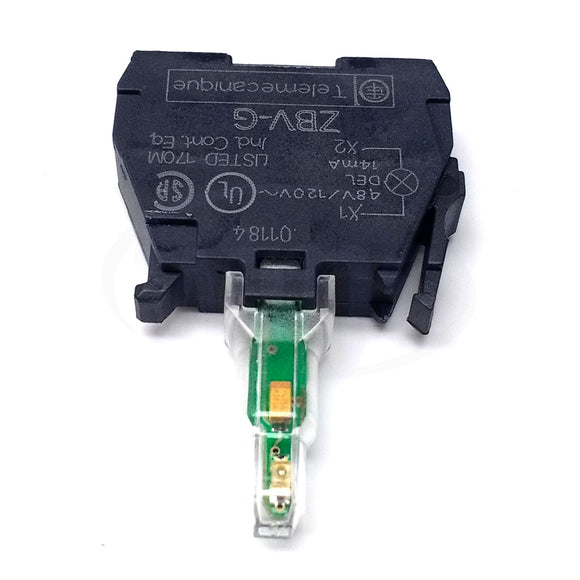

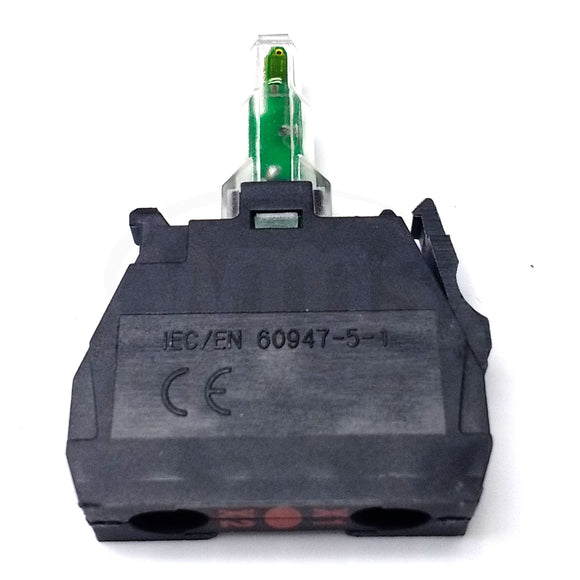

Light block |
|
| device short name |
ZBV |
|
| sale per indivisible qty |
5 |
|
| connections - terminals |
Screw clamp terminals: <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals: >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
|
| signalling type |
Steady |
|
| light source |
Protected LED |
|
| bulb base |
Integral LED |
|
| light block supply |
Direct |
|
| light source colour |
Blue |
|
| Us rated supply voltage |
110...120 V AC, 50/60 Hz |
|
| product weight |
0.04 lb(US) (0.017 kg) |
|
|---|---|---|
| tightening torque |
7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1 |
|
| shape of screw head |
Cross head compatible with Philips no 1 screwdriver Cross head compatible with pozidriv No 1 screwdriver Slotted head compatible with flat Ø 4 mm screwdriver Slotted head compatible with flat Ø 5.5 mm screwdriver |
|
| current consumption |
14 mA |
|
| service life |
100000 h at rated voltage and 25 °C |
|
| surge withstand |
1 kV conforming to IEC 61000-4-5 |
|
| mounting of block |
Front mounting |
|
| electrical composition code |
M1 M2 M3 M4 M5 M6 M10 MF1 P1 P2 PF1 |
|
| compatibility code |
ZBV |
|
| protective treatment |
TH |
|
|---|---|---|
| ambient air temperature for storage |
-40...158 °F (-40...70 °C) |
|
| ambient air temperature for operation |
-40...158 °F (-40...70 °C) |
|
| IP degree of protection |
IP20 conforming to IEC 60529 |
|
| standards |
EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C 4520 UL 508 CSA C22.2 No 14 |
|
| product certifications |
CSA UL listed |
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4 |
|
| resistance to electromagnetic fields |
9.14 V/yd (10 V/m) conforming to IEC 61000-4-3 |
|
| resist electrostatic dischrg |
6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
|
| electromagnetic emission |
Class B conforming to IEC 55011 |
|
| Category |
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW |
|
|---|---|---|
| Discount Schedule |
CS2 |
|
| GTIN |
00785901355472 |
|
| Nbr. of units in pkg. |
5 |
|
| Package weight(Lbs) |
0.02 |
|
| Returnability |
Y |
|
| Country of origin |
France |
|
