| range of product |
Harmony XB4 Harmony XB5 |
|
|---|---|---|
| product or component type |

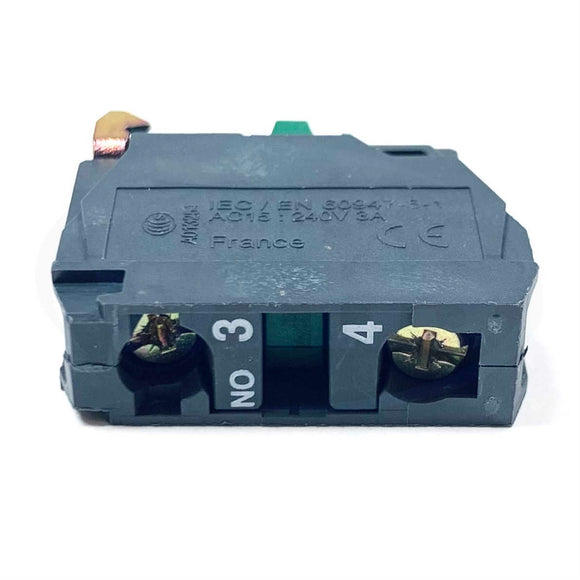

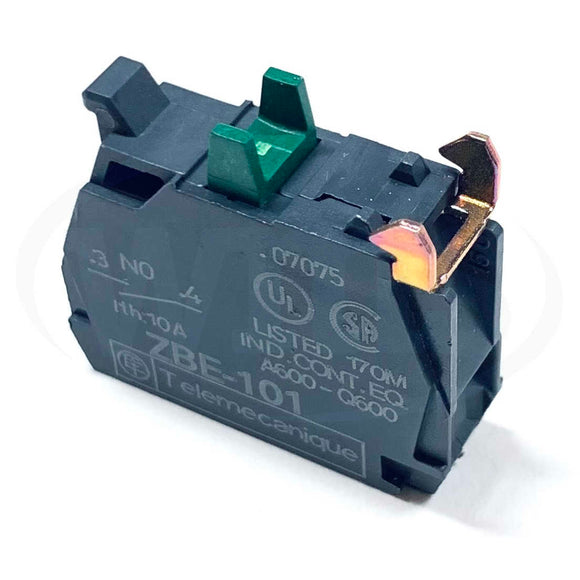

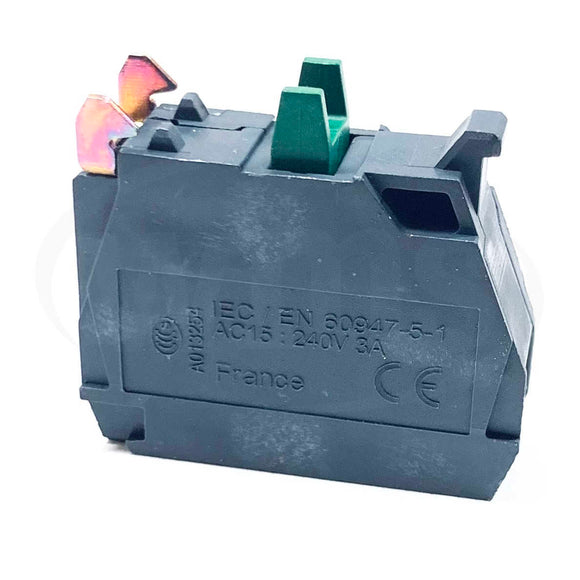

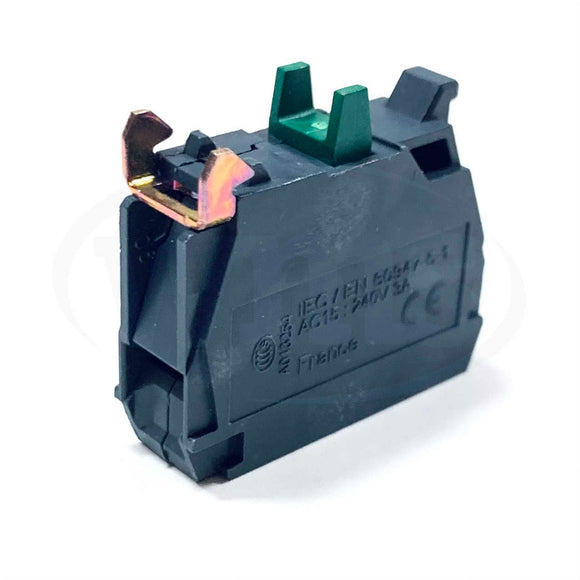

Contact block |
|
| device short name |
ZBE |
|
| IP degree of protection |
IP20 IEC 60529 |
|
| contacts type and composition |
1 NO |
|
| contacts operation |
Slow-break |
|
| contact block type |
Single |
|
| contacts usage |
Standard contacts |
|
| connections - terminals |
Screw clamp terminals <= 2 x 1.5 mm² with cable end EN 60947-1 Screw clamp terminals >= 1 x 0.22 mm² without cable end EN 60947-1 |
|
| product weight |
0.02 lb(US) (0.011 kg) |
|
|---|---|---|
| positive opening |
Without |
|
| operating travel |
0.1 in (2.6 mm) NO changing electrical state 0.17 in (4.3 mm) total travel |
|
| operating force |
2.3 N NO changing electrical state |
|
| mechanical durability |
10000000 cycles |
|
| tightening torque |
7.08...10.62 lbf.in (0.8...1.2 N.m) EN 60947-1 |
|
| shape of screw head |
Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
|
| contacts material |
Silver alloy (Ag/Ni) |
|
| short-circuit protection |
10 A cartridge fuse gG EN/IEC 60947-5-1 |
|
| [Ith] conventional free air thermal current |
10 A EN/IEC 60947-5-1 |
|
| Ui rated insulation voltage |
600 V 3 EN 60947-1 |
|
| [Uimp] rated impulse withstand voltage |
6 kV EN 60947-1 |
|
| [Ie] rated operational current |
1.2 A 600 V AC-15 A600 EN/IEC 60947-5-1 0.27 A 250 V DC-13 Q600 EN/IEC 60947-5-1 0.1 A 600 V DC-13 Q600 EN/IEC 60947-5-1 3 A 240 V AC-15 A600 EN/IEC 60947-5-1 0.55 A 125 V DC-13 Q600 EN/IEC 60947-5-1 6 A 120 V AC-15 A600 EN/IEC 60947-5-1 |
|
| electrical durability |
1000000 cycles AC-15 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles DC-13 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles DC-13 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
|
| electrical reliability |
? < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 ? < 10exp(-7) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 |
|
| mounting of block |
Front mounting |
|
| condition of use |
Mounting on push-button collar |
|
| electrical composition code |
C1 <= 9 C2 <= 7 C3 <= 6 C4 <= 4 C5 <= 5 C6 <= 3 C7 <= 4 C8 <= 2 C9 <= 3 C12 <= 6 M1 <= 6 M2 <= 4 M3 <= 4 M5 <= 2 M6 <= 2 M7 <= 6 M8 <= 4 M9 <= 2 SF1 <= 3 SF2 <= 2 MF1 <= 2 MF2 <= 2 C10 <= 2 M4 <= 2 C13 <= 1 |
|
| compatibility code |
ZBE |
|
| protective treatment |
TH |
|
|---|---|---|
| ambient air temperature for storage |
-40...158 °F (-40...70 °C) |
|
| ambient air temperature for operation |
-40...158 °F (-40...70 °C) |
|
| standards |
EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C 4520 UL 508 CSA C22.2 No 14 |
|
| product certifications |
BV CCC CSA DNV GL GOST LROS (Lloyds register of shipping) RINA UL |
|
| vibration resistance |
5 gn 2...500 Hz IEC 60068-2-6 |
|
| shock resistance |
30 gn 18 ms half sine wave acceleration IEC 60068-2-27 50 gn 11 ms half sine wave acceleration IEC 60068-2-27 |
|
| Category |
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW |
|
|---|---|---|
| Discount Schedule |
CS2 |
|
| GTIN |
00785901355632 |
|
| Package weight(Lbs) |
0.02 |
|
| Country of origin |
France |
|
