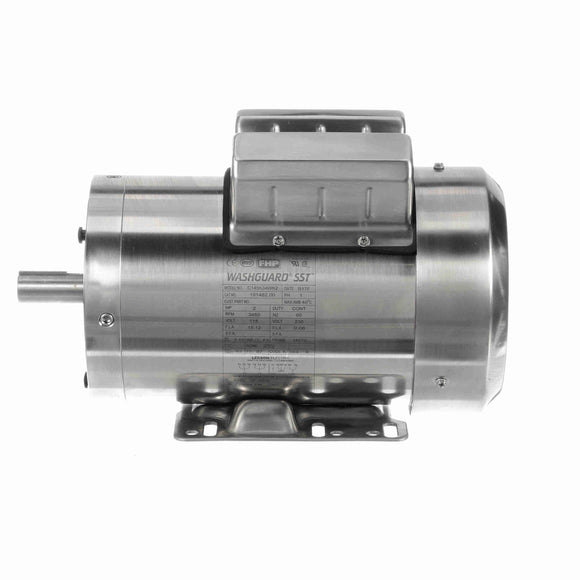

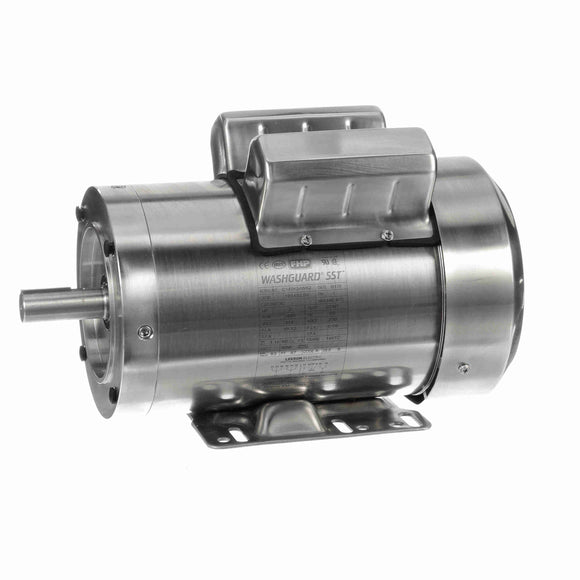

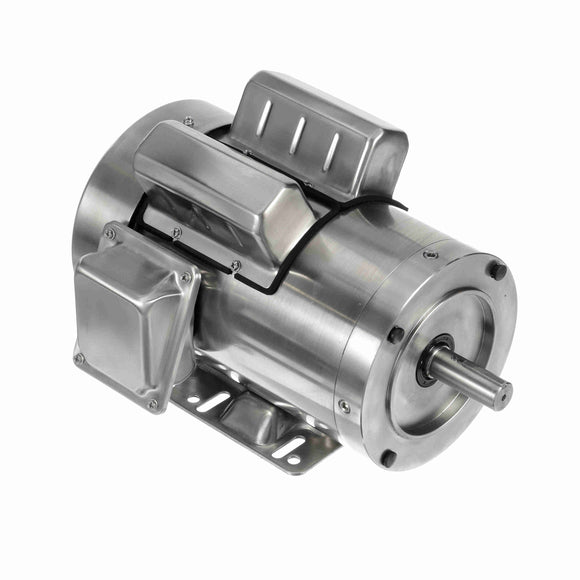

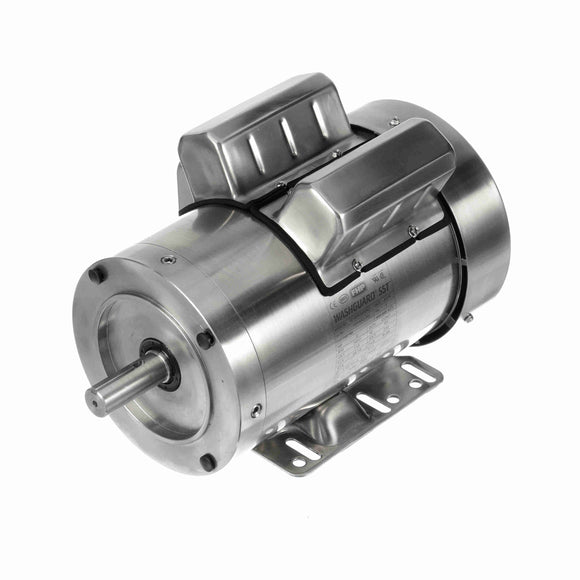

191482.00 2HP Leeson Electric SS Motor, Washdown

$1,230.22 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191482.00 Barcode: 691720399514

30 Day
Return Policy

Ships Fast
in 24 hours

3600 RPM, 145TC Frame, TEFC, Single Phase, 115/208-230V

Description Product Specs Manufacturer

Product Features

>
Catalog No 191482.00 Model C145K34WK2A
Product type AC MOTOR Stock Stock
Description 2HP..3600RPM.145.TEFC./V.1PH.60HZ..NOT.40C..RIGID C..CA
Information shown is for current motor's design
 Engineering Data
Volts 115 Volts 230 Volts
F.L. Amps 19 F.L. Amps 9.5 F.L. Amps
S. F Amps 20.8 S. F Amps 10.4 S. F Amps
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE KF
KW 1.49
Frame 145TC Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 81.5 Eff 75% PF 86.3
UL Y-(LEESON UL REC) CSA Yes Bearing OPE
CC Number EXEMPT CE Yes Bearing PE
Load Type Inverter Type Speed Range NONE
Motor Wt. 41 LB Enclosure TEFC Lubrication VERIFY
Nameplate Mounting RIGID Rotation SELECTIVE CCW
Assembly L Shaft Dia. 7/8 IN Ext. Diag. 005054.01
Cust Part No Outline 16999900 Ext. Diag2
Packaging Winding QK6328
Carton Label     GROUP: 3
Iris Paint NO PAINT Test Card 01
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Load Curve Data @60 Hz, 230 Volts, 2 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise

Load Curve Data Not Available
