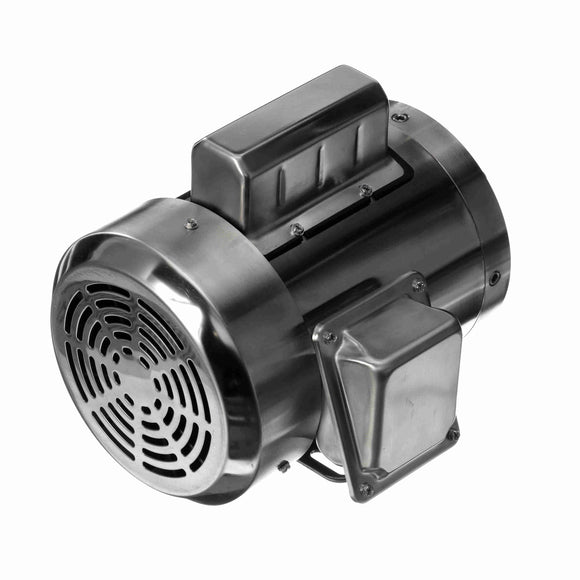

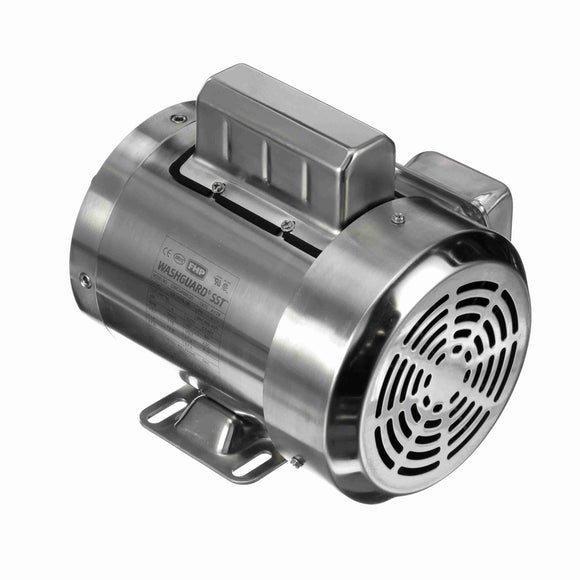

191478.00 1HP Leeson Electric SS Motor, Washdown

$905.66 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 191478.00 Barcode: 691720399477

30 Day
Return Policy

Ships Fast
in 24 hours

3600 RPM, 56C Frame, TEFC, Single Phase, 115/208-230V

Description Product Specs Manufacturer

Product Features

Catalog No 191478.00 Model C6C34WK20A
Product type AC MOTOR Stock Stock
Description 1HP..3600RPM.56.TEFC./V.1PH.60HZ..NOT.40C..RIGID C..A
Information shown is for current motor's design
 Engineering Data
Volts 115 Volts 230 Volts
F.L. Amps 12.4 F.L. Amps 6.2 F.L. Amps
S. F Amps TBD S. F Amps S. F Amps
RPM 3600 Hertz 60
HP 1 Duty CONTINUOUS TYPE CF
KW 0.75
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 70 Eff 75% PF 76
UL Y-(LEESON UL REC) CSA Yes Bearing OPE
CC Number EXEMPT CE Yes Bearing PE
Load Type Inverter Type Speed Range NONE
Motor Wt. 35.8 LB Enclosure TEFC Lubrication VERIFY
Nameplate NONE Mounting RIGID Rotation SELECTIVE CCW
Assembly L Shaft Dia. 5/8 IN Ext. Diag. 005005.01
Cust Part No Outline 16999700 Ext. Diag2
Packaging Winding QC6329
Carton Label INDIVIDUAL     GROUP: 3
Iris Paint NO PAINT Test Card 01
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Load Curve Data @60 Hz, 230 Volts, 1 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise

Load Curve Data Not Available
