Features
Features

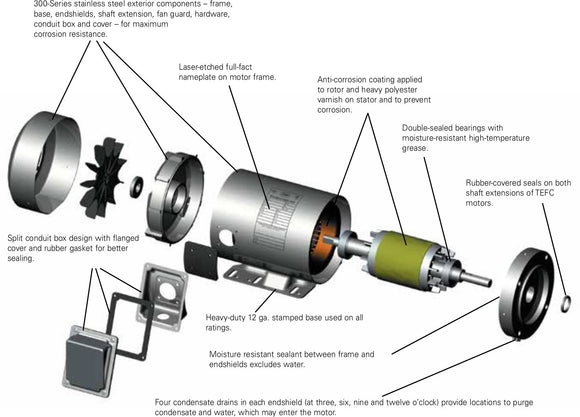

- Paint free exterior
- BISSC certified for the Baking Industry
- Stainless Steel Output shafts
- Repositional drain plugs for all angle mounting
- Double Sealed bearings
- Output shaft seal
- Inverter Duty IRIS™ insulation system
- Laser etched full-fact nameplate on frame
- All Stainless exterior
- Anti-corrosion coating applied to interior components
General Specifications
General Specifications

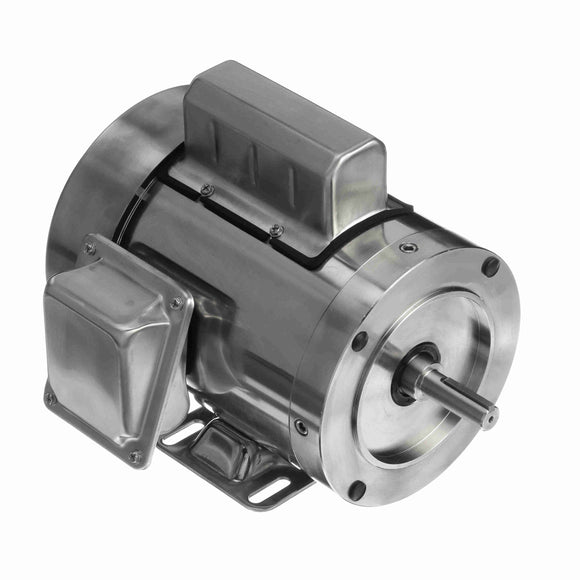

| Model : | C6C17WK15A | Catalog No : | 191477.00 |
| Part Description : | ..3/4HP..1800RPM.56.TEFC./V.1PH.60HZ..40C..RIGID C.A......NOT....... | Category : | Paint Free |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.75 HP | Output KW : | 0.56 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 9.8/4.9 A | Speed : | 1725 RPM |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 72 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | N |
| KVA Code : | K | Frame : | 56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Stainless Steel | Shaft Type : | T |
| Overall Length : | 11.73 in | Frame Length : | 6.10 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720399460 |
| Weight : | 39.00 LB |
