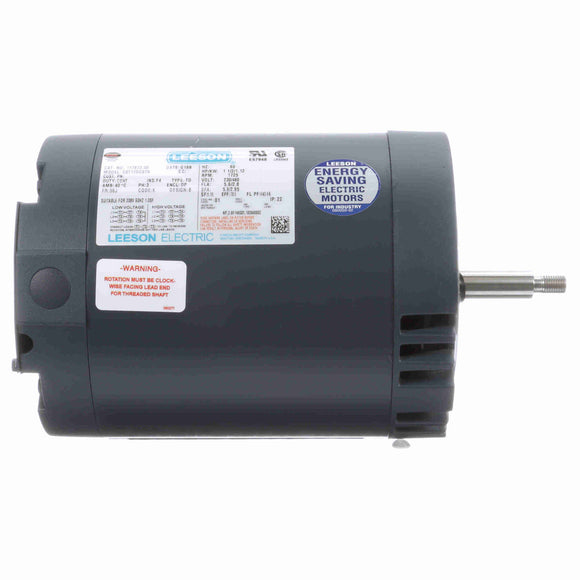

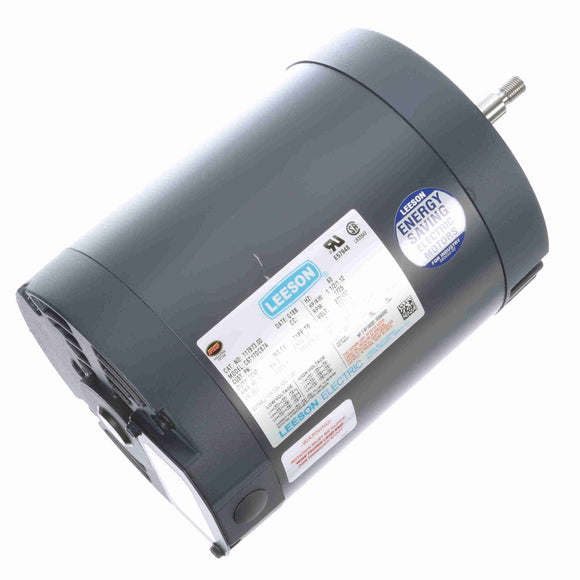

117873.00 Leeson 1.5HP Jet Pump Electric Motor, 1725RPM

$148.97 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 117873.00 Barcode: 691720003909

30 Day
Return Policy

Ships Fast
in 24 hours

DP, 56J Frame, 230/460VAC 3-Phase 60Hz, C6T17DC87A, Round Body, Rolled Steel, 5/8" Shaft

Description Product Specs Manufacturer





Features




Features


  • NEMA 56 C face mounting flange

  • Threaded shafts made of 303 grade stainless steel

  • CCW rotation facing lead end

  • Double sealed bearings on shaft end

  • Terminal board with quick connects

  • Locked shaft end bearings






General Specifications





General Specifications






























Model :
C6T17DC87A
Catalog No :
117873.00

Part Description :
..1 1/2HP..1725RPM.56J.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.C-FACE.C6T17DC87.....JET PUMP.NONE.......
Category :
Jet Pump

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
1.50 HP
Output KW :
1.1 kW

Frequency :
60 Hz
Voltage :
230/460 V

Current :
5.6/2.8 A
Speed :
1725 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
78.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
K
Frame :
56J

Enclosure :
Drip Proof
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6203

Opp Drive End Bearing Size :
6203
UL :
Recognized

CSA :
Y
CE :
N

IP Code :
22






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line

Poles :
4
Rotation :
Reversible

Mounting :
Round
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Rolled Steel
Shaft Type :
J

Overall Length :
11.37 in
Frame Length :
6.00 in

Shaft Diameter :
0.625 in
Shaft Extension :
2.44 in

Assembly/Box Mounting :
F1 ONLY
UPC :
691720003909

Weight :
28.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Break-Down
0.00 0.0 17.50 389.0 0 0.00 0.0 1.50

Pull-Up
0.00 0.0 13.40 298.0 0 0.00 0.0 1.50

Locked-Rotor
33.60 600.0 13.50 300.0 0 0.00 0.0 1.50

Full Load
5.60 100.0 4.50 100.0 0 0.00 0.0 1.50





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 2.15

  • 0.200

  • 0.0

  • 11.7

  • 1,798

  • 0.0

  • 0.00





  • 25 %

  • 2.17

  • 0.507

  • 56.6

  • 29.4

  • 1,787

  • 0.0

  • 1.13





  • 50 %

  • 2.29

  • 0.824

  • 68.8

  • 45.3

  • 1,774

  • 0.0

  • 2.25





  • 75 %

  • 2.51

  • 1.133

  • 74.7

  • 56.7

  • 1,762

  • 0.0

  • 3.38





  • 100 %

  • 2.80

  • 1.426

  • 78.5

  • 64.0

  • 1,750

  • 60.0

  • 4.50





  • 125 %

  • 3.08

  • 1.789

  • 77.5

  • 72.9

  • 1,734

  • 0.0

  • 5.63





  • 150 %

  • 3.46

  • 2.148

  • 76.7

  • 77.9

  • 1,718

  • 0.0

  • 6.75








  • Electric Motor
  • 56J
  • DP
  • 1.5HP
  • 1725RPM
