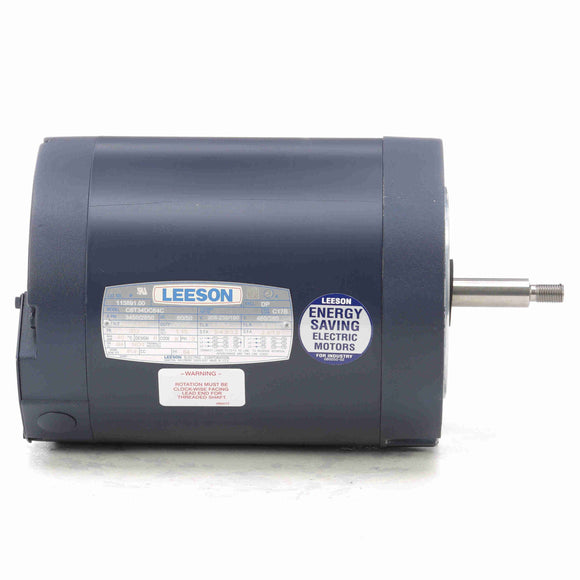

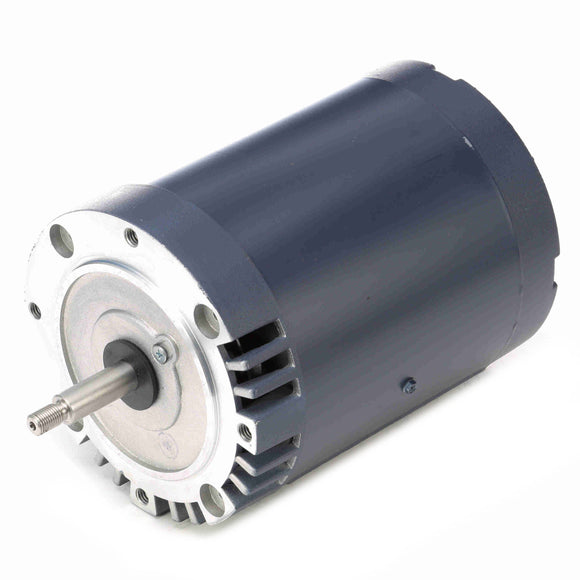

113891.00 Leeson 1.5HP Jet Pump Electric Motor, 3450RPM

$513.97 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 113891.00 Barcode: 691720012598

30 Day
Return Policy

Ships Fast
in 24 hours

DP, 56J Frame, 208-230/460VAC 3-Phase 60Hz, C6T34DC64C, Round Body, Rolled Steel, 5/8" Threaded Shaft

Description Product Specs Manufacturer





Features




Features


  • NEMA 56 C face mounting flange

  • Threaded shafts made of 303 grade stainless steel

  • Double sealed bearings on shaft end

  • Terminal board with quick connects

  • Locked shaft end bearings






General Specifications





General Specifications






























Model :
C6T34DC64C
Catalog No :
113891.00

Part Description :
..1 1/2HP..3450RPM.56.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T34DC64C.....JET PUMP.NOT.......
Category :
Jet Pump

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
1.50 HP
Output KW :
1.1 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
4.4-4.2/2.1 A
Speed :
3450 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
81.5 %
Duty :
Continuous

Insulation Class :
B
Design Code :
B

KVA Code :
K
Frame :
56J

Enclosure :
Drip Proof
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6203

Opp Drive End Bearing Size :
6203
UL :
Recognized

CSA :
Y
CE :
N

IP Code :
22






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line

Poles :
2
Rotation :
Reversible

Mounting :
Round
Motor Orientation :
Horizontal

Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball

Frame Material :
Rolled Steel
Shaft Type :
J

Overall Length :
11.34 in
Frame Length :
6.00 in

Shaft Diameter :
0.625 in
Shaft Extension :
2.44 in

Assembly/Box Mounting :
F1 Only
UPC :
691720012598

Weight :
31.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Locked-Rotor
15.00 6.40 284.0 0 1.50

Break-Down
0.00 8.10 360.0 2,400 1.50

Full Load
2.10 2.25 100.0 3,480 1.50

Pull-Up
0.00 6.00 267.0 400 1.50





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 1.00

  • 0.118

  • 0.0

  • 14.8

  • 3,598

  • 0.0

  • 0.00





  • 25 %

  • 1.09

  • 0.383

  • 79.5

  • 44.1

  • 3,572

  • 0.0

  • 0.60





  • 50 %

  • 1.35

  • 0.705

  • 80.6

  • 65.5

  • 3,540

  • 0.0

  • 1.13





  • 75 %

  • 1.65

  • 1.030

  • 81.9

  • 78.4

  • 3,512

  • 0.0

  • 1.69





  • 100 %

  • 2.03

  • 1.358

  • 81.9

  • 84.0

  • 3,480

  • 0.0

  • 2.25





  • 125 %

  • 2.45

  • 1.663

  • 82.8

  • 85.2

  • 3,444

  • 0.0

  • 2.81





  • 150 %

  • 2.88

  • 1.996

  • 81.8

  • 87.0

  • 3,406

  • 0.0

  • 3.37








  • 208VAC
  • 230VAC
  • 460VAC
  • Electric Motor
  • 56J
  • DP
  • 1.5HP
  • 3450RPM
