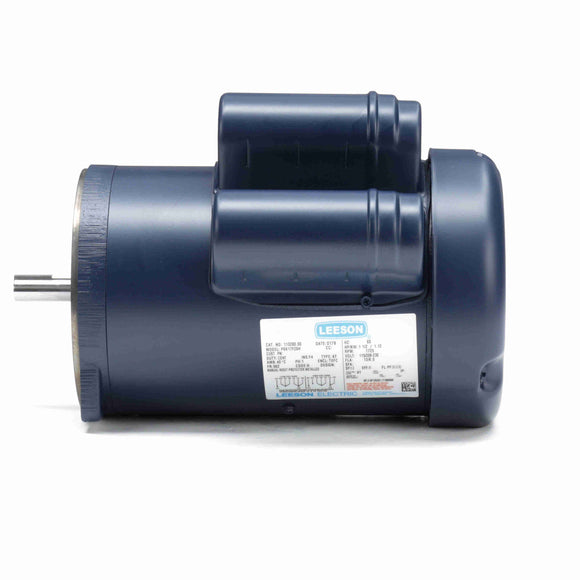

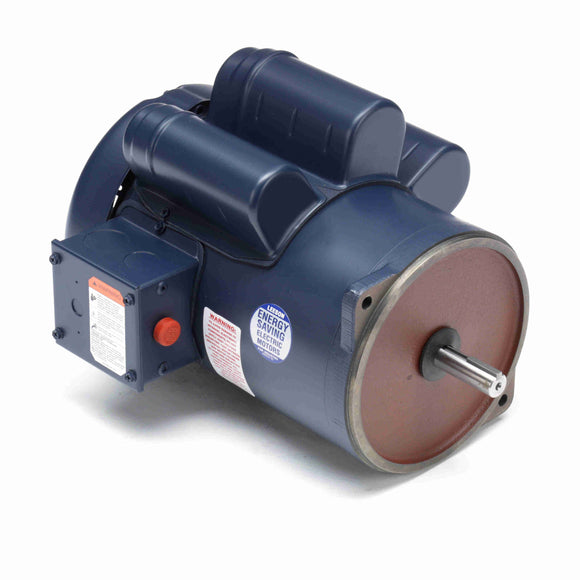

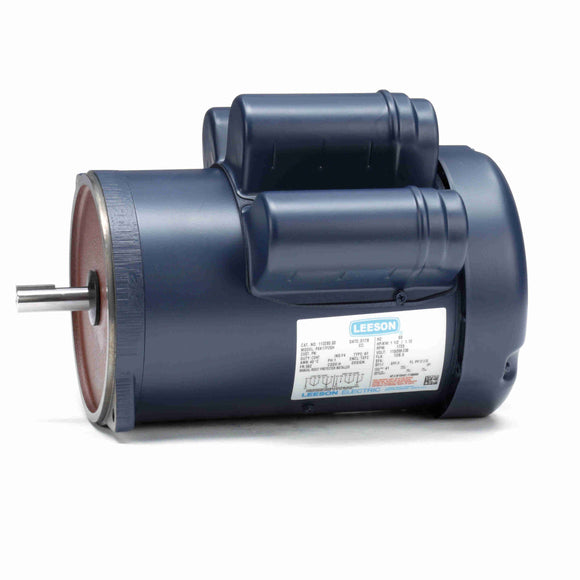

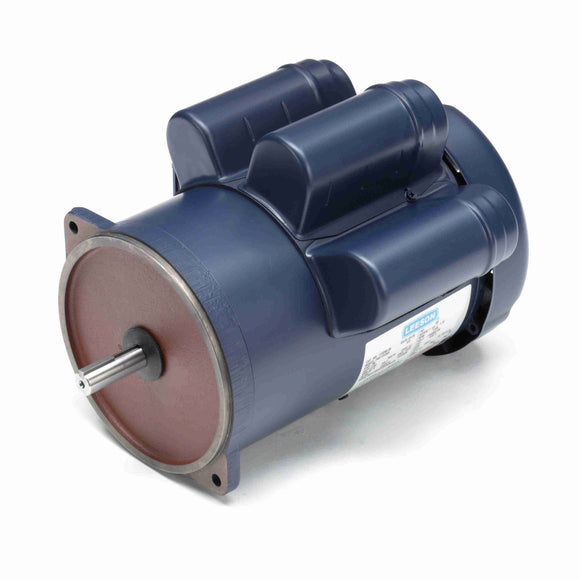

Replacement motors for poultry feed auger drive systems
Features:
• Choice of mechanical or solid state starting switch
• Mechanical switch has over-speed protection - Note 51
• Manual overload protected
Features
General Specifications
General Specifications
| UPC: |
691720011898 |
Weight: |
50.00 LB |
| Packaged Length: |
17.94 IN |
Packaged Width: |
13.06 IN |
| Packaged Height: |
12.88 IN |
Nameplate Specifications
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
13.0/6.5 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
81 % |
Power Factor: |
93 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
H |
| Frame: |
56Z | Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
Manual |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized ( Not Protector) |
CSA: |
N |
| CE: |
N |
IP Code: |
43 |
| Number of Speeds: |
1 |
Technical Specifications
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
1.771 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
12.77 in |
| Frame Length: |
8.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.97 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (LB-FT) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) | Rated Output (Hp) |
| Pull-Up |
0.00 |
0.0 |
9.00 |
200.0 |
0 |
0.00 |
0.0 |
1.50 |
| Locked-Rotor |
45.00 |
0.0 |
12.50 |
278.0 |
0 |
0.00 |
0.0 |
1.50 |
| Break-Down |
0.00 |
0.0 |
9.90 |
220.0 |
0 |
0.00 |
0.0 |
1.50 |
Load Characteristics
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
2.10 |
2.65 |
3.73 |
5.00 |
6.45 |
8.12 |
10.14 |
| Rated Output (KW) |
0.21 |
0.46 |
0.74 |
1.05 |
1.38 |
1.73 |
2.15 |
| Efficiency (%) |
0.0 |
60.6 |
75.7 |
80.2 |
81.2 |
80.9 |
78.0 |
| Power Factor (%) |
43.7 |
75.6 |
86.4 |
91.0 |
93.0 |
92.7 |
92.2 |
| Speed (RPM) |
1,798 |
1,789 |
1,779 |
1,768 |
1,755 |
1,739 |
1,717 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
68.0 |
0.0 |
0.0 |
| Torque (LB-FT) |
0.00 |
1.10 |
2.22 |
3.34 |
4.49 |
5.67 |
6.88 |
Leeson Electric (Regal Rexnord)
