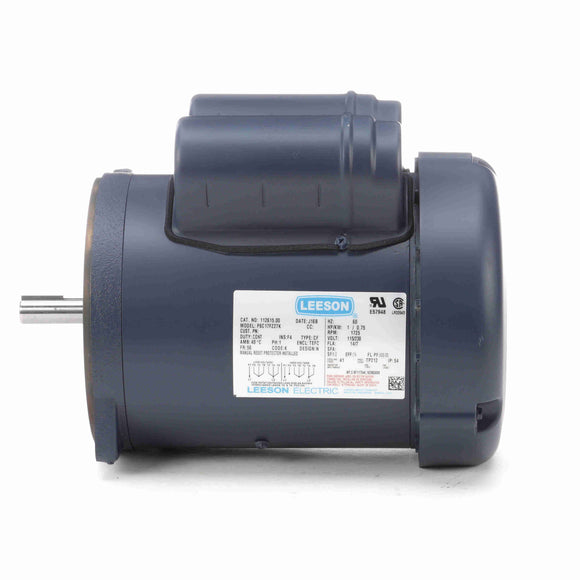

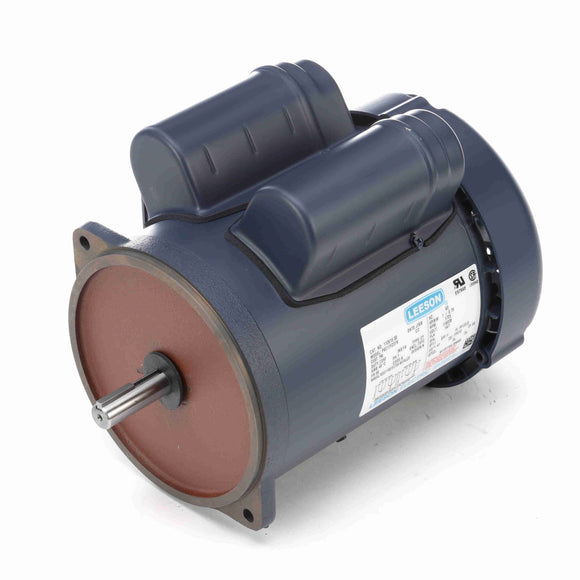

Features
- UL recognized component listing and CSA certification ensures the product is safe for use.
- Double-shielded bearings extend the service life of the motor.
- Extended shaft with wrench flats for manual jogging of auger.
- Manual-reset thermal protector (as noted) protects against motor overload.
General Specifications
| UPC: | 691720011010 | Weight: | 38.00 LB |
| Packaged Length: | 14.44 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output HP: | 1 Hp | Output KW: | 0.75 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 14.0/7.0 A | Speed: | 1725 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 74 % | Power Factor: | 63 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | N | KVA Code: | K |
| Frame: | 56 | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Manual | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 54 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 1.8 Ohms | Mounting: | Round |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 56 | Overall Length: | 11.27 in |
| Frame Length: | 6.50 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.88 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (OZ-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 17.90 | 255.0 | 132.60 | 275.0 | 0 | 3.98 | 0.0 | 1.00 |
| Locked-Rotor | 37.30 | 532.0 | 141.80 | 294.0 | 0 | 7.35 | 0.0 | 1.00 |
| Pull-Up | 29.00 | 414.0 | 117.60 | 244.0 | 0 | 4.37 | 0.0 | 1.00 |
| Full Load | 7.01 | 100.0 | 48.16 | 100.0 | 1,751 | 1.06 | 0.0 | 1.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % | 150 % |
| Current (Amps) | 4.85 | 5.24 | 5.61 | 6.20 | 7.01 | 7.56 | 7.97 | 9.14 |
| Rated Output (KW) | 0.21 | 0.40 | 0.61 | 0.83 | 1.06 | 1.21 | 1.31 | 1.59 |
| Efficiency (%) | 0.0 | 46.6 | 61.6 | 67.8 | 70.4 | 71.0 | 71.1 | 70.6 |
| Power Factor (%) | 0.0 | 33.3 | 46.9 | 57.8 | 65.9 | 69.4 | 71.5 | 75.5 |
| Speed (RPM) | 1,797 | 1,787 | 1,776 | 1,764 | 1,751 | 1,743 | 1,738 | 1,722 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 88.6 | 102.0 | 0.0 | 0.0 |
| Torque (OZ-FT) | 0.00 | 11.74 | 23.67 | 35.74 | 48.16 | 55.44 | 60.47 | 73.28 |
