Overview :
| Brand | KB Electronics, Inc. |
|---|---|
| Part Number | 9520 |
| Model Number | KBAC-27D |
| Maximum Power | 1-1/2 HP (115V) 1.13 kW (115V) 2 HP (208-230V) 1.5 kW (208-230V) |
| Input Voltage | 115/208-230 Volt |
| Input Frequency | 50/60 Hz |
| Input Phase | Single Phase |
| Max AC Line Current | 22 Amps @ 115 Volts 16.7 Amps @ 230 Volts |
| Output Voltage Range | 0-208/230 VAC |
| Max Load Current | 5.5 Amps/Phase @ 115 Volts 6.7 Amps/Phase @ 230 Volts |
| Net Weight | 10.3 lbs 4.7 kg |
| Dimensions | 7.69" x 9.82" x 7.36" 195mm x 249mm x 187mm |
| Enclosure Rating | NEMA 4X, IP65 |
| Enclosure Color | Gray |
| UPC | 024822095204 |
Description :

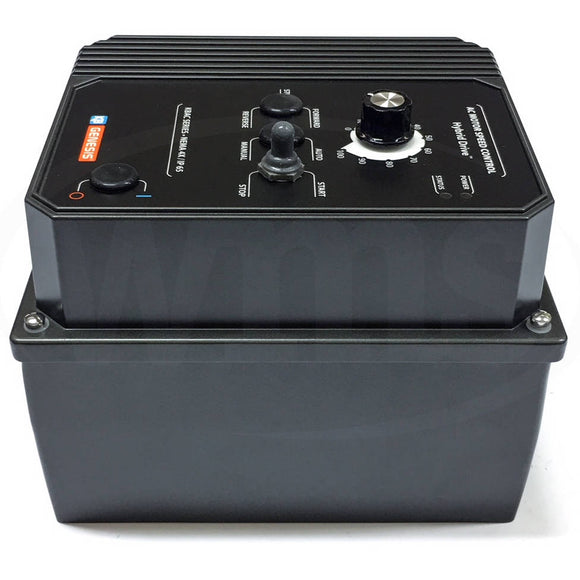

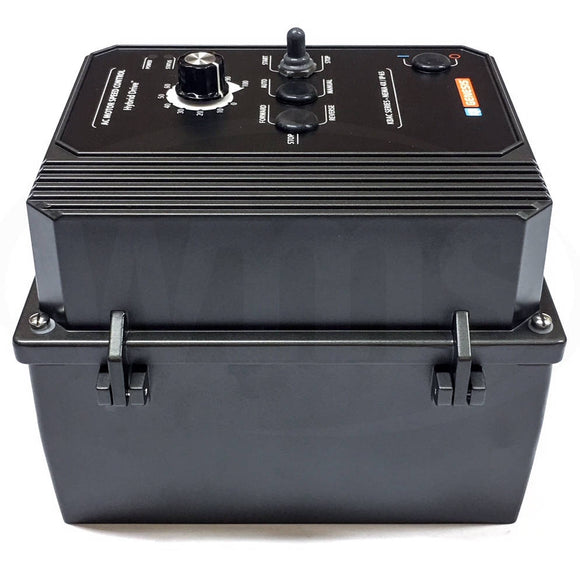

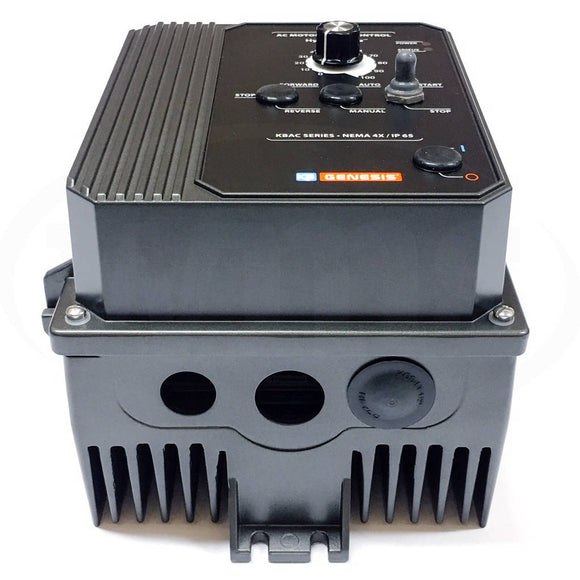

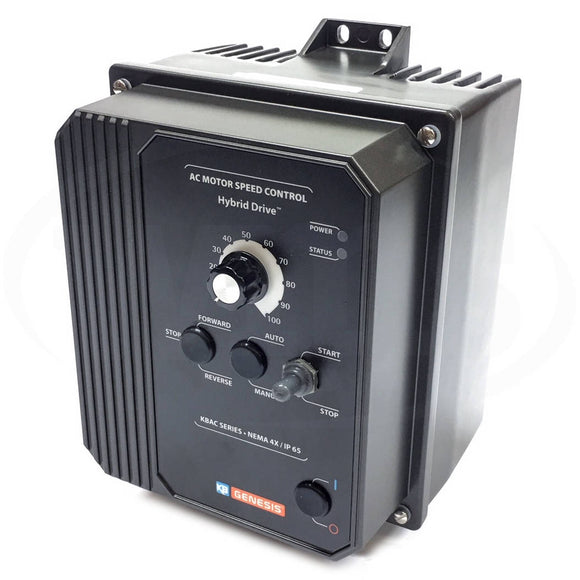

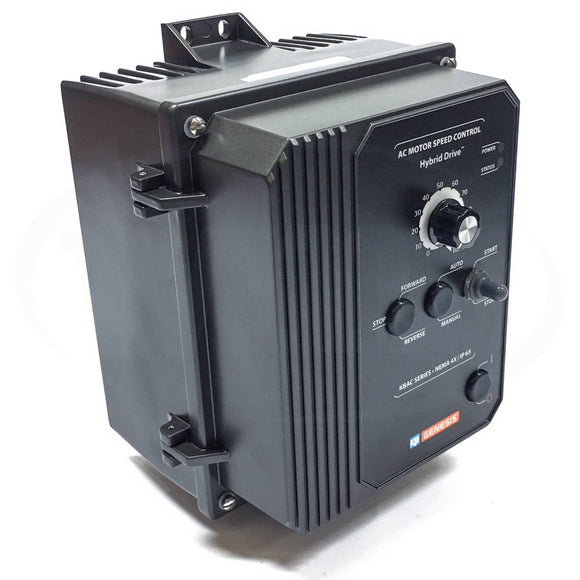

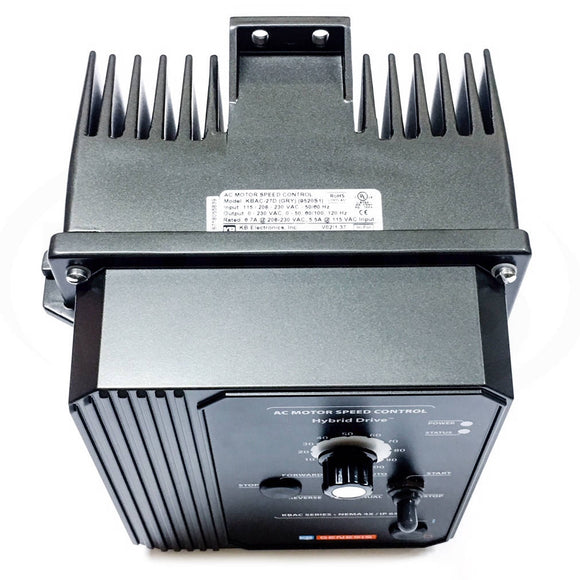

KBAC-27D Hybrid AC Drive - Digital Drive with Analog Interface
Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover.
Primary Features:
- Horsepower 1/8 to 2 HP, Jumper Selectable
- 1Ø Input 115/230 VAC, 50/60 Hz
- 3Ø Output 230 VAC
- Start/Stop Switch
- 200% Starting Torque
- Diagnostic LED Status Indicators
Additional Features:
- Sensorless Flux Vector Control
- Electronic Inrush Current Limit (EICLTM) Protection
- Run/Fault Relay Output Contacts
- Holding Torque at Zero Speed in "Stop" mode
- Undervoltage and Overvoltage Protection
- Short Circuit Protection, phase to phase
- Ride-Through momentary power loss
- Regeneration eliminates tripping
- Basic, Programmable, Trimpot Adjustments
Drive Options:
- On/Off AC Line Switch
- Forward-Stop-Reverse Switch
- Signal Isolator, Auto/Manual Switch
- Class "A" (CE) RFI Filter
- Liquid Tight Fittings
Dimensions approx. 9.8" X 7.6" X 7.3".
Agency approvals: UL, CE, CSA, C-Tick.
