Overview :
| Brand | KB Electronics, Inc. |
|---|---|
| Part Number | 9987 |
| Model Number | KBAC-24D |
| Maximum Power | 1 HP 0.75 kW |
| Input Voltage | 115/208-230V |
| Input Frequency | 50/60Hz |
| Input Phase | Single Phase |
| Max AC Line Current | 14.4 Amps@ 115V 8.1 Amps @ 208-230V |
| Output Voltage Range | 0-208/230 VAC |
| Max Load Current | 3.6 Amps/Phase |
| Net Weight | 5.9 lbs 2.7 kg |
| Dimensions | 5.51" x 9.53" x 5.86" 140mm x 242mm x 149mm |
| Enclosure Rating | NEMA 4X, IP65 |
| Enclosure Color | Gray |
| UPC | 024822099875 |
Description :

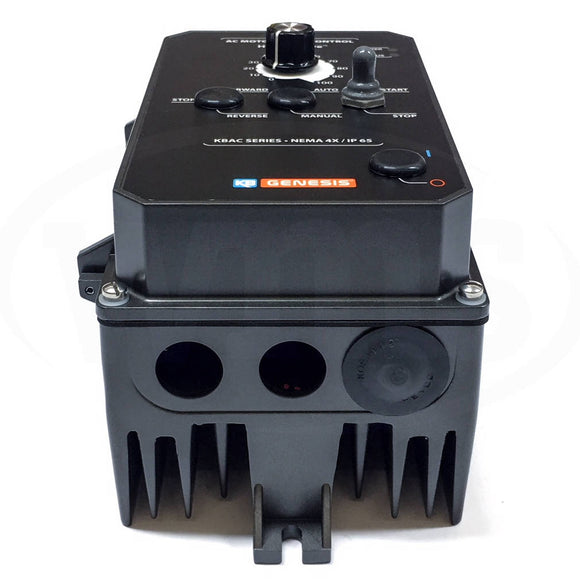

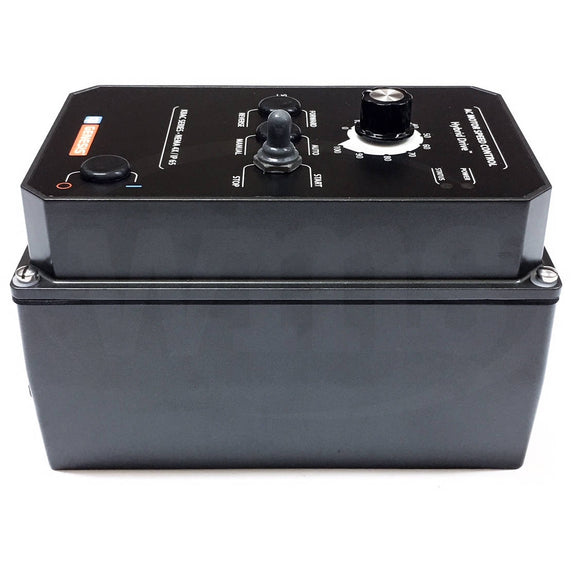

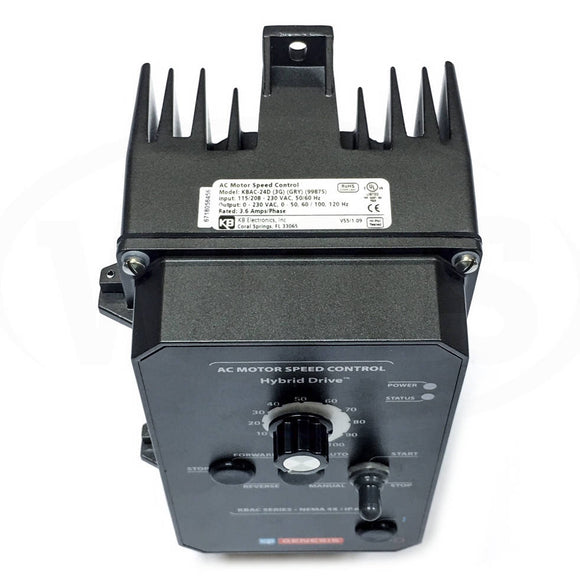

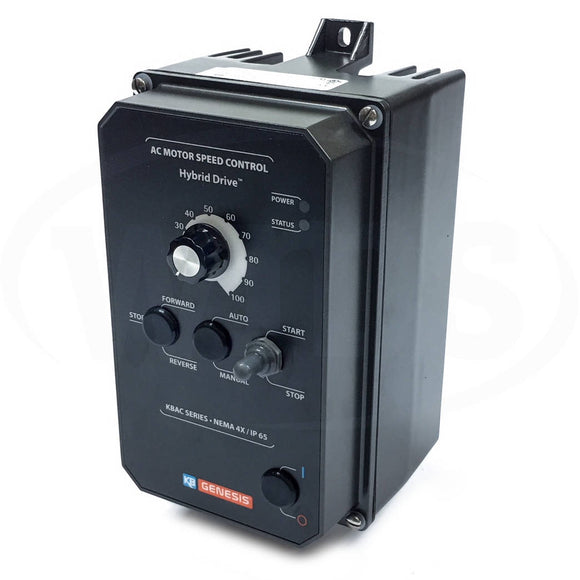

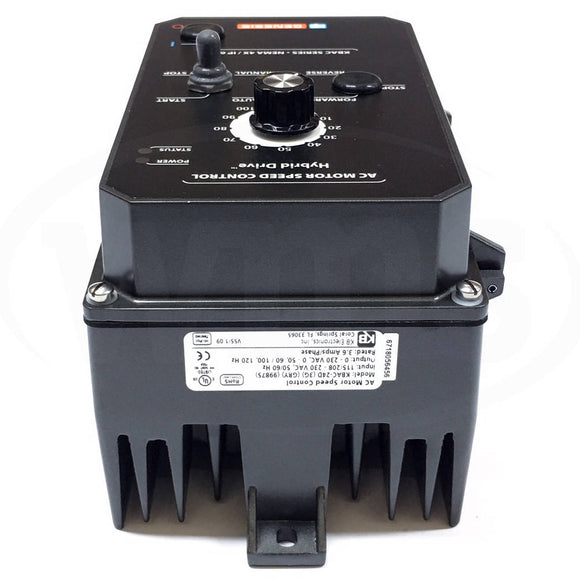

KBAC-24D Hybrid AC Drive, A Digital Drive with Analog Interface

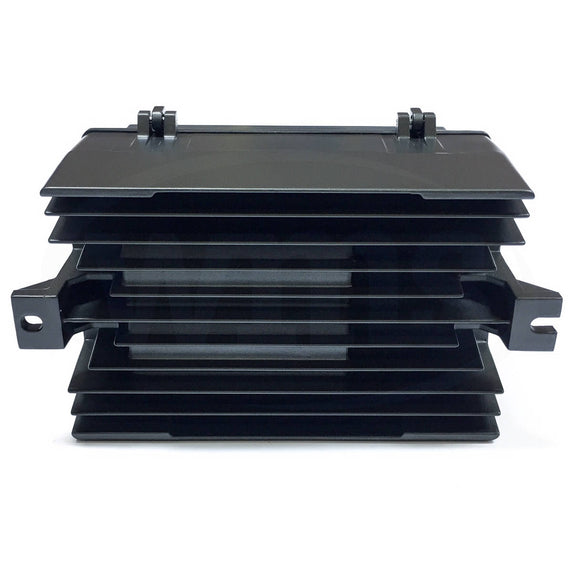

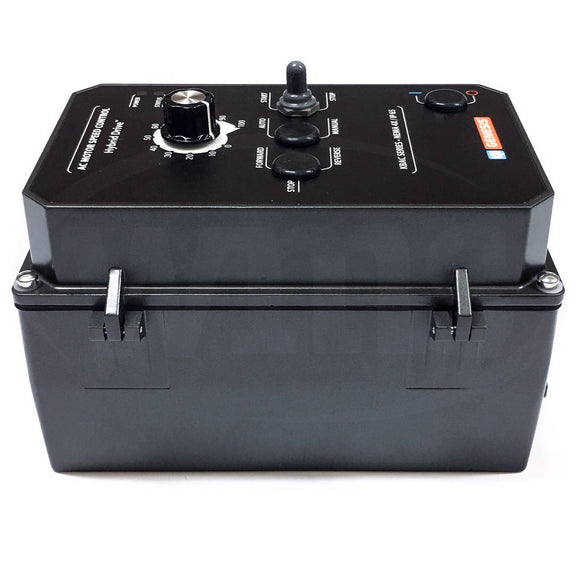

Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover.
Primary Features:
- Horsepower 1/8 to 1 HP, Jumper Selectable
- 1Ø Input 115/230 VAC, 50/60 Hz
- 3Ø Output 230 VAC
- Start/Stop Switch
- 200% Starting Torque
- Diagnostic LED Status Indicators
Additional Features:
- Sensorless Flux Vector Control
- Electronic Inrush Current Limit (EICLTM) Protection
- Run/Fault Relay Output Contacts
- Holding Torque at Zero Speed in "Stop" mode
- Undervoltage and Overvoltage Protection
- Short Circuit Protection, phase to phase
- Ride-Through momentary power loss
- Regeneration eliminates tripping
- Basic, Programmable, Trimpot Adjustments
Drive Options:
- On/Off AC Line Switch
- Forward-Stop-Reverse Switch
- Signal Isolator, Auto/Manual Switch
- Class "A" (CE) RFI Filter
- Liquid Tight Fittings
Dimensions approx. 9.53" X 5.5" X 5.9".
Agency approvals: UL, CE, CSA, C-Tick.
