Features
Features

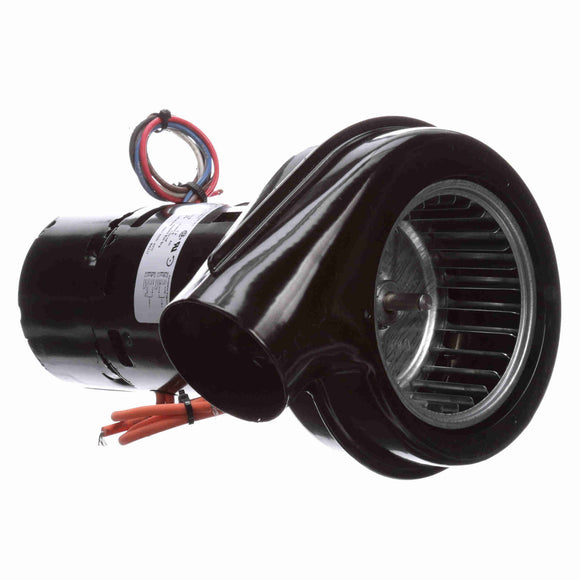

- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 8-6" Leads with Strip, 9.5-7.5" and 8-6" Switch Leads with Strip
General Specifications
General Specifications
|
Model : |
Catalog No : |
B23618 | |
|
Part Description : |
70215932.BLOWER...1 SPD. |
Category : |
Draft Inducer |
|
Stock : |
Yes |
Nameplate Specifications
Nameplate Specifications
|
Voltage : |
115/208-230 V |
Motor Type : |
Shaded Pole |
|
Overload Protector : |
Thermally |
Speed : |
3000 RPM |
|
Current : |
0.95/0.49 A |
Number of Speeds : |
1 |
|
Frequency : |
50/60 Hz |
Phase : |
1 |
|
Ambient Temperature : |
40 °C |
UL : |
Yes |
|
Insulation Class : |
B |
CSA : |
Yes |
Technical Specifications
Technical Specifications
|
Blower Outlet Shape : |
Round |
Motor Enclosure : |
Open Fan Cooled |
|
Blower Outlet Flange : |
No |
Bearing Type : |
Ball |
|
UPC : |
815585027010 |
Weight : |
4.00 LB |
Speed & Load Characteristics
CFM At Static Pressure
| 0.0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 |
| 70 | 72 | 67 | 64 | 62 | 57 | 55 | 50 | 46 | 41 | 33 |
