Features
Features

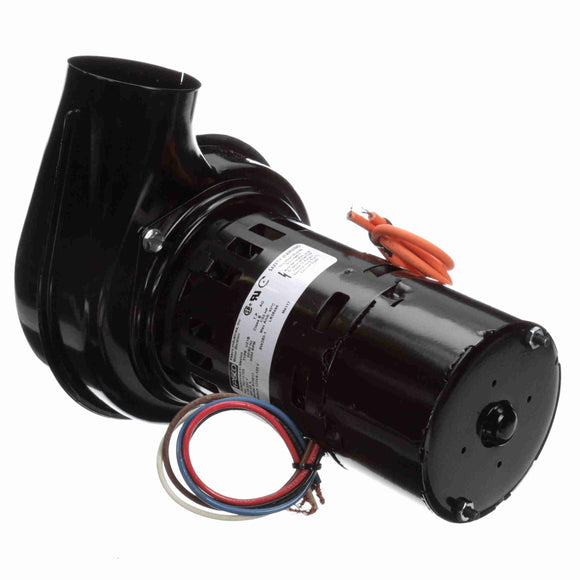

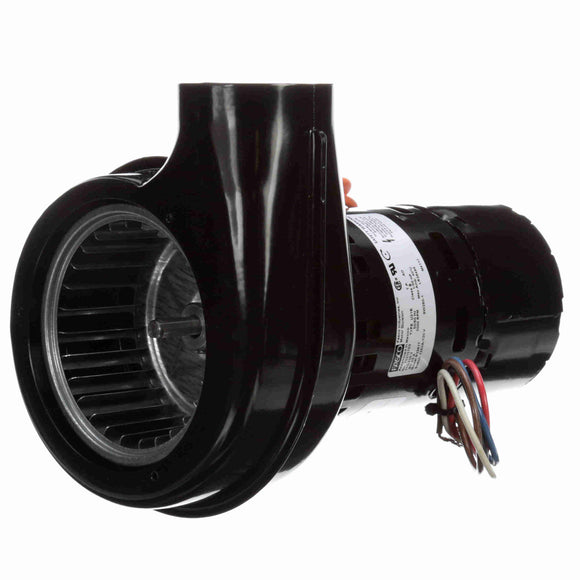

- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40 C Ambient
- Sleeve Bearing
- 8-6" Leads with Strip, 9.5-7.5" and 8-6" Switch Leads with Strip
General Specifications
General Specifications
| Model : | Catalog No : | B23617 | |
| Part Description : | 70215703.BLOWER...1 SPD. | Category : | Draft Inducer |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Voltage : | 115/230 V | Motor Type : | Shaded Pole |
| Overload Protector : | Thermally | Speed : | 3000 RPM |
| Current : | 0.90/0.45 A | Number of Speeds : | 1 |
| Frequency : | 50/60 Hz | Phase : | 1 |
| Ambient Temperature : | 40 C | UL : | Yes |
| Insulation Class : | B | CSA : | Yes |
Technical Specifications
Technical Specifications
| Blower Outlet Shape : | Round | Motor Enclosure : | Open Fan Cooled |
| Blower Outlet Flange : | No | Bearing Type : | Sleeve |
| UPC : | 815585027003 | Weight : | 4.00 LB |
Speed & Load Characteristics
CFM At Static Pressure
| 0.0 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 |
| 70 | 72 | 67 | 64 | 62 | 57 | 55 | 50 | 46 | 41 | 33 |
