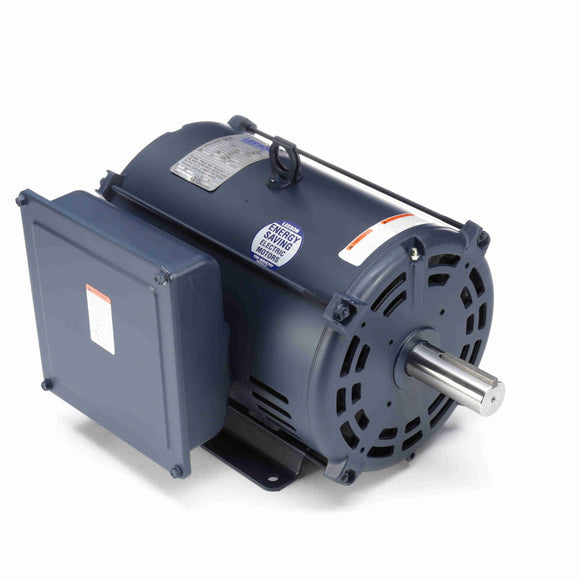

140155.00 Leeson 7.5HP Compressor Duty Electric Motor, 1740 RPM-1

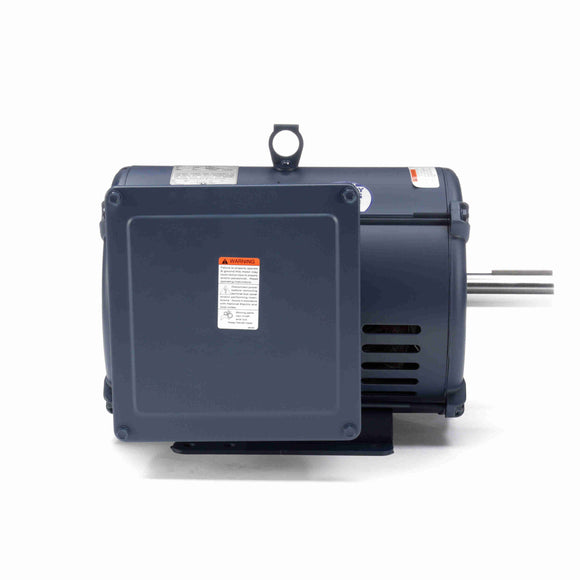

140155.00 Leeson 7.5HP Compressor Duty Electric Motor, 1740 RPM-2

140155.00 Leeson 7.5HP Compressor Duty Electric Motor, 1740 RPM

$2,581.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 140155.00 Barcode: 691720018958

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High starting and breakdown torque
  • Dual rotation

General Specifications

General Specifications
Model : C215K17DB2F Catalog No : 140155.00
Part Description : ..7 1/2HP..1740RPM.215.DP./230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.C215K17DB2F.....GENERAL PURPOSE.NOT....... Category : Air Compressor
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 7.50 Hp Output KW : 5.6 kW
Frequency : 60 Hz Voltage : 230 V
Current : 36.0 A Speed : 1740 rpm
Service Factor : 1.15 Phase : 1
Efficiency : 81.5 % Duty : Continuous
Insulation Class : F Design Code : L
KVA Code : G Frame : 215T
Enclosure : Drip Proof Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6206 UL : Recognized
CSA : Y CE : N
IP Code : 22

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 17.26 in Frame Length : 12.00 in
Shaft Diameter : 1.375 in Shaft Extension : 3.38 in
Assembly/Box Mounting : F1 ONLY UPC : 691720018958
Weight : 116.00 LB
