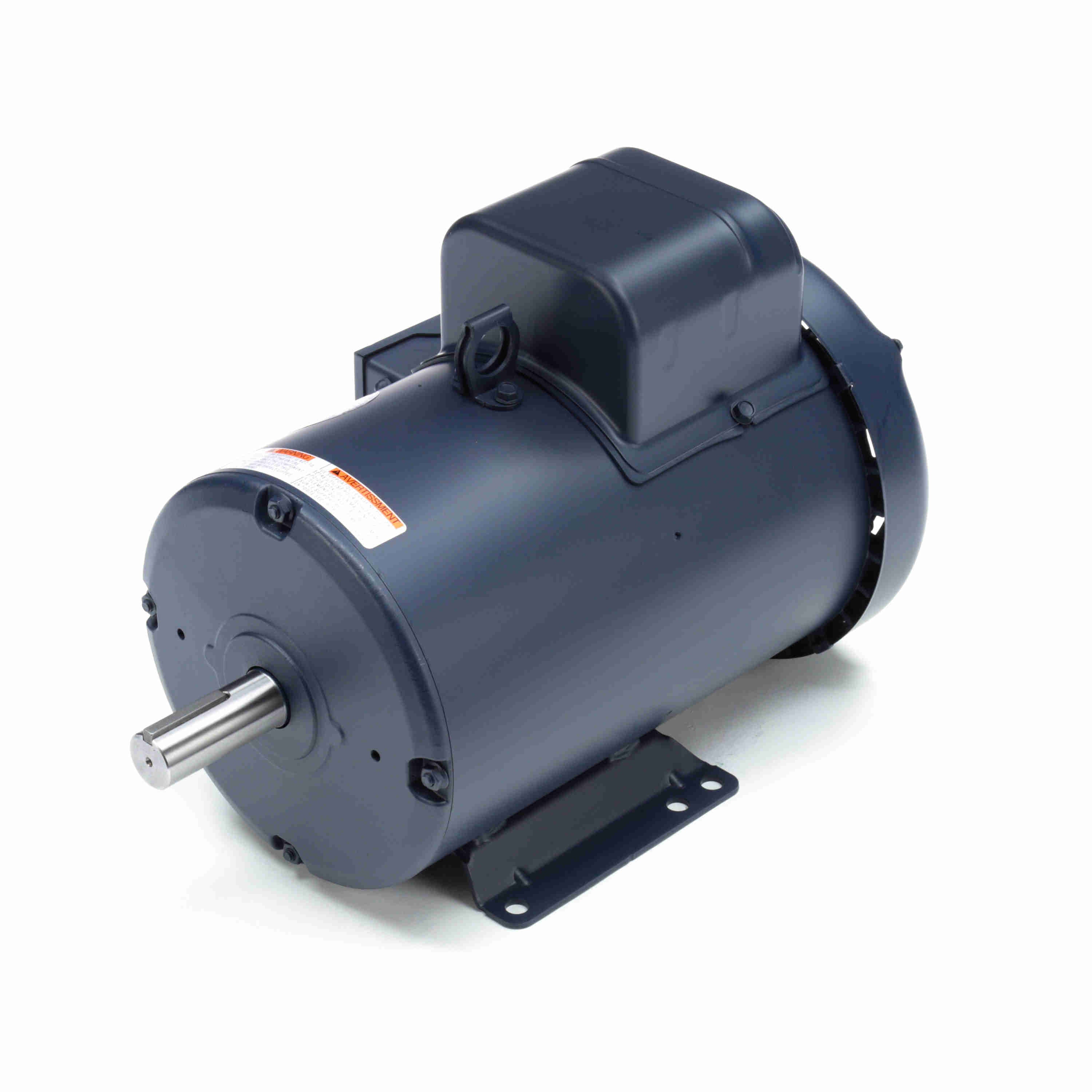

Features
- Double shielded ball bearings
- Dynamically balanced rotors
- NEMA ® Design B performance
- Continuous Duty
- Meets or exceeds NEMA service factors
General Specifications
| UPC: | 691720346686 | Weight: | 103.00 LB |
| Packaged Length: | 20.13 IN | Packaged Width: | 14.63 IN |
| Packaged Height: | 12.38 IN |
Nameplate Specifications
| Output HP: | 5 Hp | Output KW: | 3.7 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 19.8 A | Speed: | 3500 rpm |
| Service Factor: | 1.15 | Phase: | 1 |
| Efficiency: | 82.5 % | Power Factor: | 98 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | L | KVA Code: | H |
| Frame: | 184T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Manual | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Selective Counterclockwise |
| Resistance Main: | .342 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 16.96 in |
| Frame Length: | 11.50 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1 Only |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 19.80 | 7.50 | 100.0 | 3,528 | 5.00 | |||
| Break-Down | 0.00 | 19.40 | 259.0 | 0 | 5.00 | |||
| Pull-Up | 0.00 | 15.80 | 211.0 | 0 | 5.00 | |||
| Locked-Rotor | 153.00 | 16.20 | 216.0 | 0 | 5.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % | 150 % |
| Current (Amps) | 2.92 | 6.67 | 10.91 | 15.48 | 20.20 | 22.80 | 25.40 | 31.05 |
| Rated Output (KW) | 0.55 | 1.47 | 2.46 | 3.49 | 4.56 | 5.10 | 5.70 | 6.93 |
| Efficiency (%) | 0.0 | 65.0 | 77.4 | 81.3 | 82.5 | 82.0 | 81.9 | 80.6 |
| Power Factor (%) | 81.9 | 96.0 | 97.8 | 98.1 | 98.0 | 97.0 | 97.6 | 97.0 |
| Speed (RPM) | 3,594 | 3,583 | 3,566 | 3,549 | 3,530 | 3,525 | 3,504 | 3,476 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 71.0 | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 1.88 | 3.75 | 5.63 | 7.50 | 8.60 | 9.38 | 11.30 |
