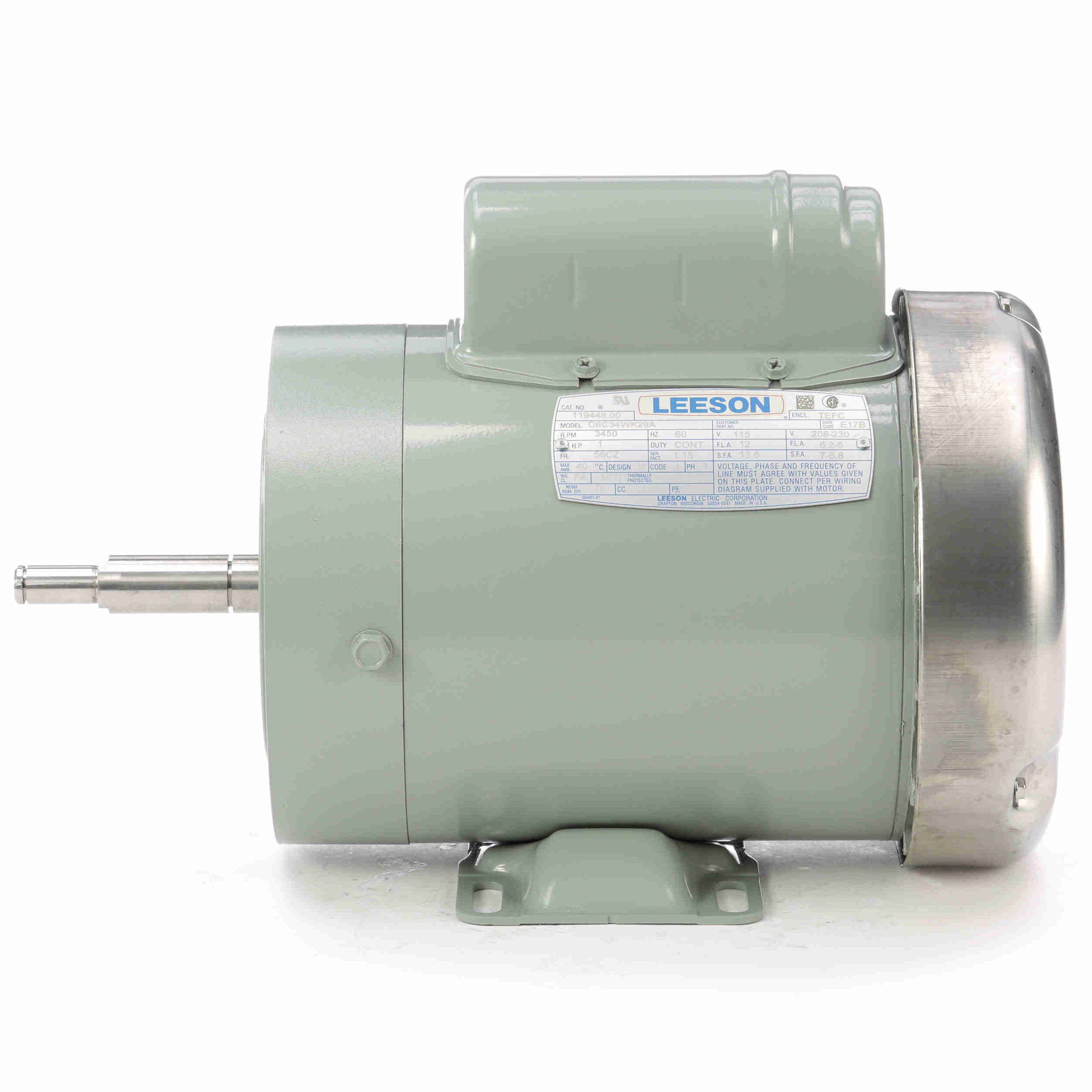

119448.00 Leeson 1HP Agriculture Duty Milk Transfer Pump Electric Motor, 3600RPM-1

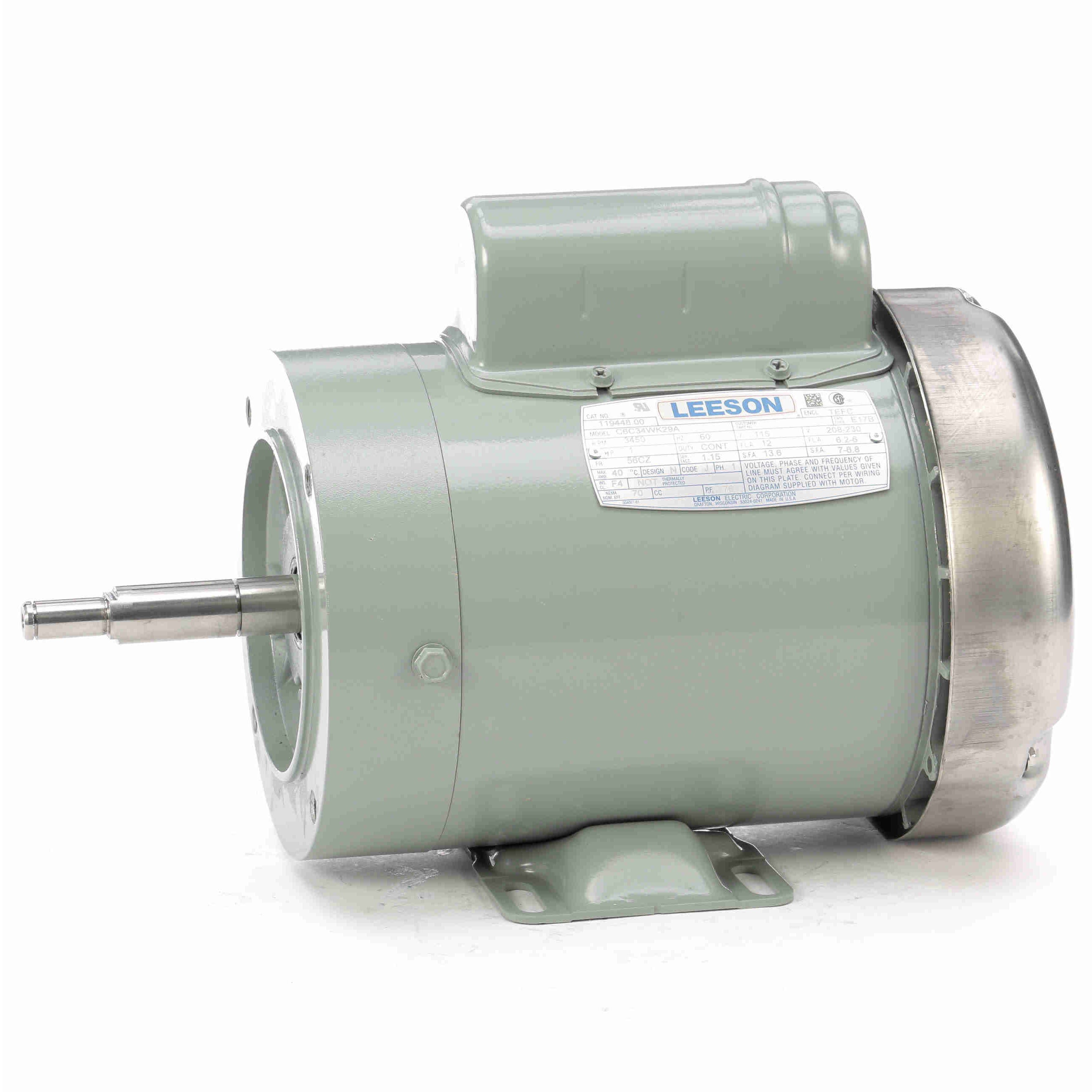

119448.00 Leeson 1HP Agriculture Duty Milk Transfer Pump Electric Motor, 3600RPM-2
119448.00 Leeson 1HP Agriculture Duty Milk Transfer Pump Electric Motor, 3600RPM-3
119448.00 Leeson 1HP Agriculture Duty Milk Transfer Pump Electric Motor, 3600RPM-4

119448.00 Leeson 1HP Agriculture Duty Milk Transfer Pump Electric Motor, 3600RPM

$1,455.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 119448.00 Barcode: 691720053737

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Washguard® motor features for high pressure washdown applications
  • Epoxy painted and stainless ratings available for corrosion protection
  • Solid state encapsulated starting switch on capacitor start motors
  • Three phase motor is inverter rated

General Specifications

General Specifications
Model : C6C34WK29A Catalog No : 119448.00
Part Description : 119448.00..1HP..3450RPM.56C.TEFC.230V.1PH.60HZ.CONT.40C.1.15 S.F..RIGID C FACE.C6C34WK29.....MILK TRANSFER PUMP.NONE....... Category : Milk Transfer
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1 HP Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 12.0/6.2-6.0 A Speed : 3450 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 70 % Duty : Continuous
Insulation Class : F Design Code : N
KVA Code : J Frame : 56CZ
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 2 Rotation : Selective Counterclockwise
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : Single Special Extension
Overall Length : 13.04 in Frame Length : 6.00 in
Shaft Diameter : 0.750 in Shaft Extension : 3.11 in
Assembly/Box Mounting : F1 ONLY UPC : 691720053737
Weight : 33.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 34.00 80.00 333.0 0 1.00
Break-Down 0.00 64.00 267.0 3,000 1.00
Full Load 6.00 24.00 100.0 3,491 1.00
Pull-Up 0.00 60.00 250.0 2,800 1.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.70
  • 0.180
  • 0.0
  • 21.2
  • 3,599
  • 0.0
  • 0.00
  • 25 %
  • 3.95
  • 0.387
  • 49.1
  • 42.6
  • 3,568
  • 0.0
  • 6.00
  • 50 %
  • 4.44
  • 0.595
  • 63.5
  • 58.3
  • 3,544
  • 0.0
  • 12.00
  • 75 %
  • 5.13
  • 0.819
  • 68.7
  • 69.4
  • 3,519
  • 0.0
  • 18.00
  • 100 %
  • 5.99
  • 1.055
  • 70.5
  • 76.6
  • 3,491
  • 60.0
  • 24.00
  • 125 %
  • 7.04
  • 1.314
  • 70.1
  • 81.2
  • 3,458
  • 0.0
  • 30.00
  • 150 %
  • 8.28
  • 1.598
  • 68.4
  • 83.9
  • 3,420
  • 0.0
  • 36.00
