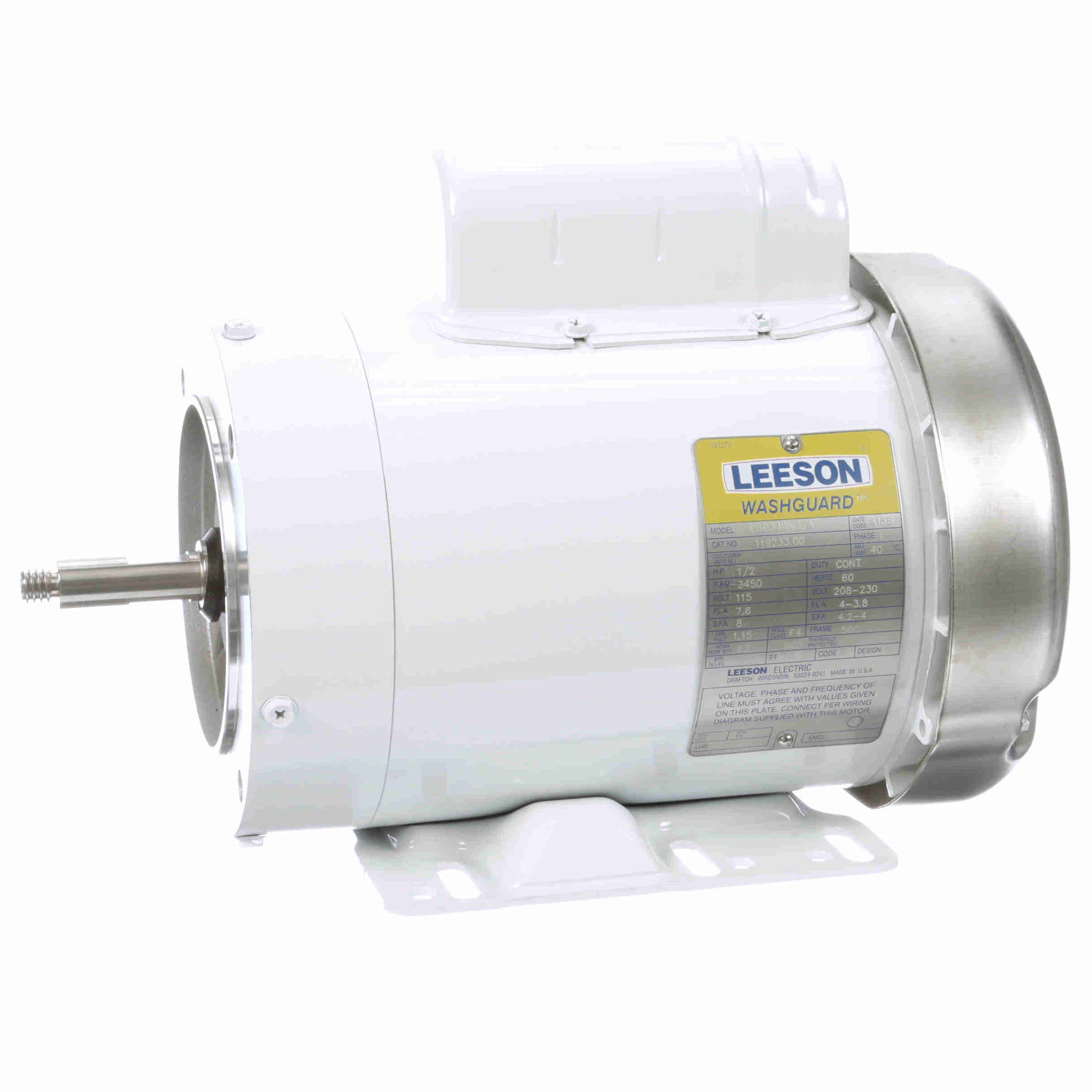

119233.00 1/2HP Leeson Milk Pump Motor-1

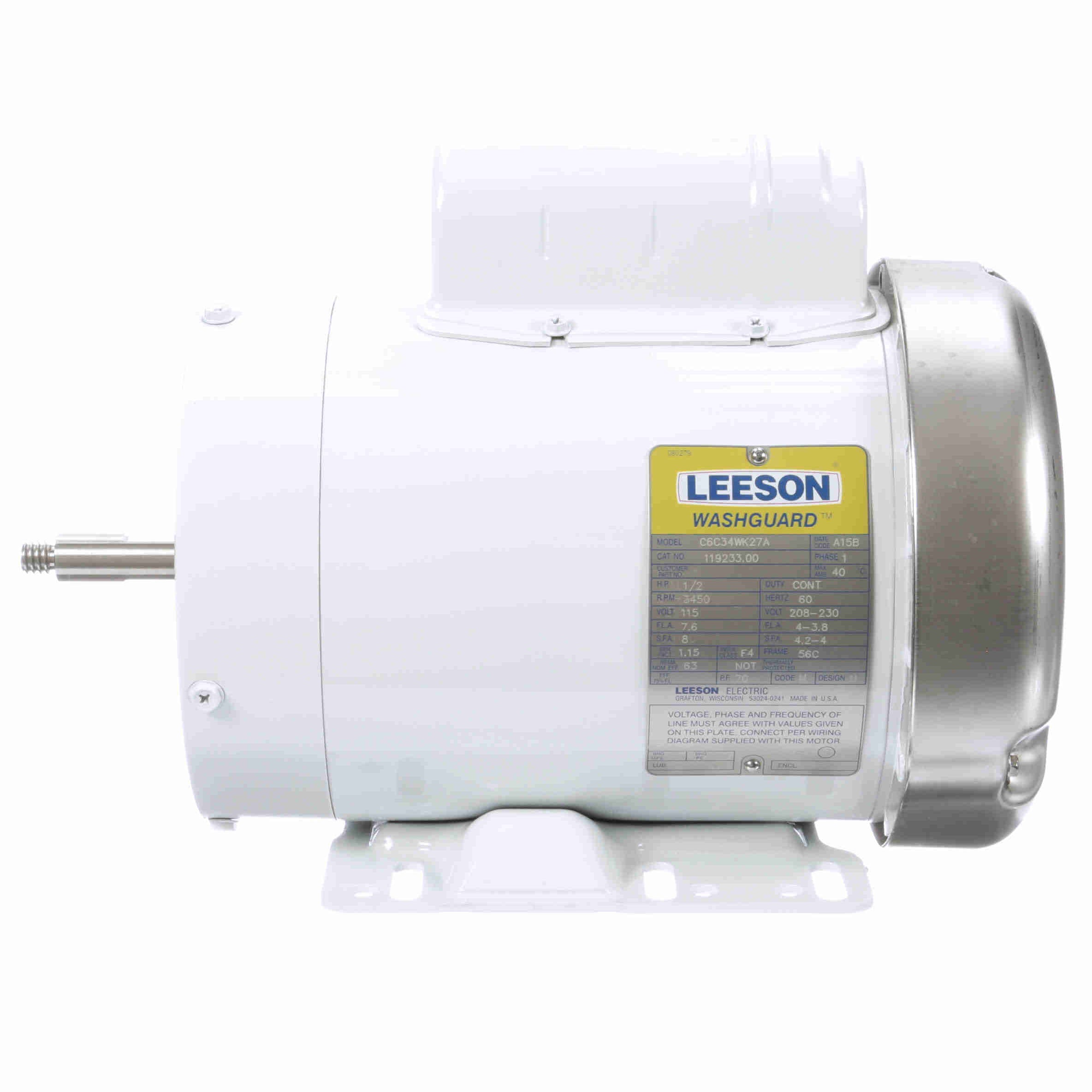

119233.00 1/2HP Leeson Milk Pump Motor-2
119233.00 1/2HP Leeson Milk Pump Motor-3
119233.00 1/2HP Leeson Milk Pump Motor-4

119233.00 1/2HP Leeson Milk Pump Motor

$460.10 USD $1,009.00 USD Save $548.90 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 119233.00 Barcode: 691720053775

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features: • Replacements for SURGE® milk pumps • WASHGUARD® motor features for high pressure washdown applications • Epoxy painted and stainless ratings available for corrosion protection • Solid state encapsulated starting switch on capacitor start motors

Features

  • Replacements Motors for BouMatic Milk Pumps
  • WASHGUARD® motor features for high pressure washdown applications
  • Epoxy painted and stainless ratings available for corrosion protection
  • Single phase motors are capacitor start - induction run designs
  • Solid state encapsulated starting switch on single phase motors
  • Three phase motors are inverter rated

General Specifications

UPC: 691720053775 Weight: 30.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 7.6/4.0-3.8 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 63 % Power Factor: 70
Duty: Continuous Insulation Class: F
Design Code: N KVA Code: M
Frame: 56CZ Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Clockwise
Resistance Main: 4.42 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: JET PUMP SPL EXT Overall Length: 12.62 in
Frame Length: 6.50 in Shaft Diameter: 0.625 in
Shaft Extension: 2.19 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 22.00 45.00 375.0 0 0.50
Break-Down 0.00 32.00 267.0 0 0.50
Pull-Up 0.00 32.00 267.0 0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 2.80 2.88 3.09 3.34 3.69 4.18 4.74
Rated Output (KW) 0.16 0.26 0.37 0.47 0.59 0.72 0.86
Efficiency (%) 0.0 36.0 51.1 59.3 63.0 64.9 65.1
Power Factor (%) 24.8 39.3 51.6 61.6 70.0 74.9 79.0
Speed (RPM) 3,598 3,564 3,538 3,515 3,486 3,456 3,420
Temp. Rise @ FL 0.0 0.0 0.0 0.0 46.0 0.0 0.0
Torque (ft-lbs) 0.00 2.96 5.97 8.99 12.09 15.23 18.45
