Features
Features
- Double shielded ball bearings
- Designed for belted loads
- High efficient copper windings
- High starting and breakdown torque
- Dual rotation
General Specifications
General Specifications

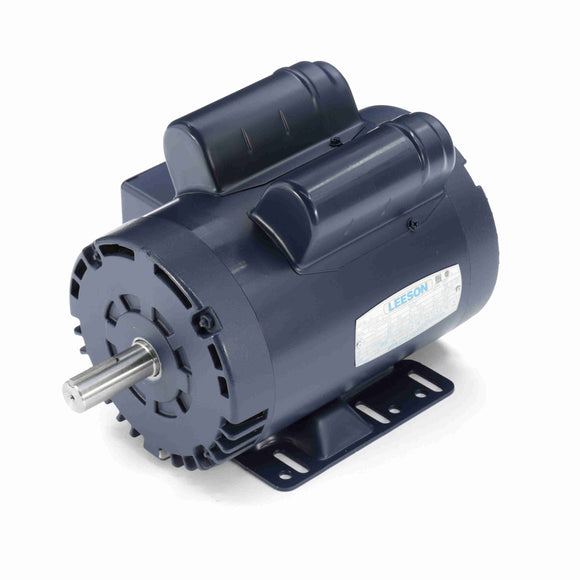

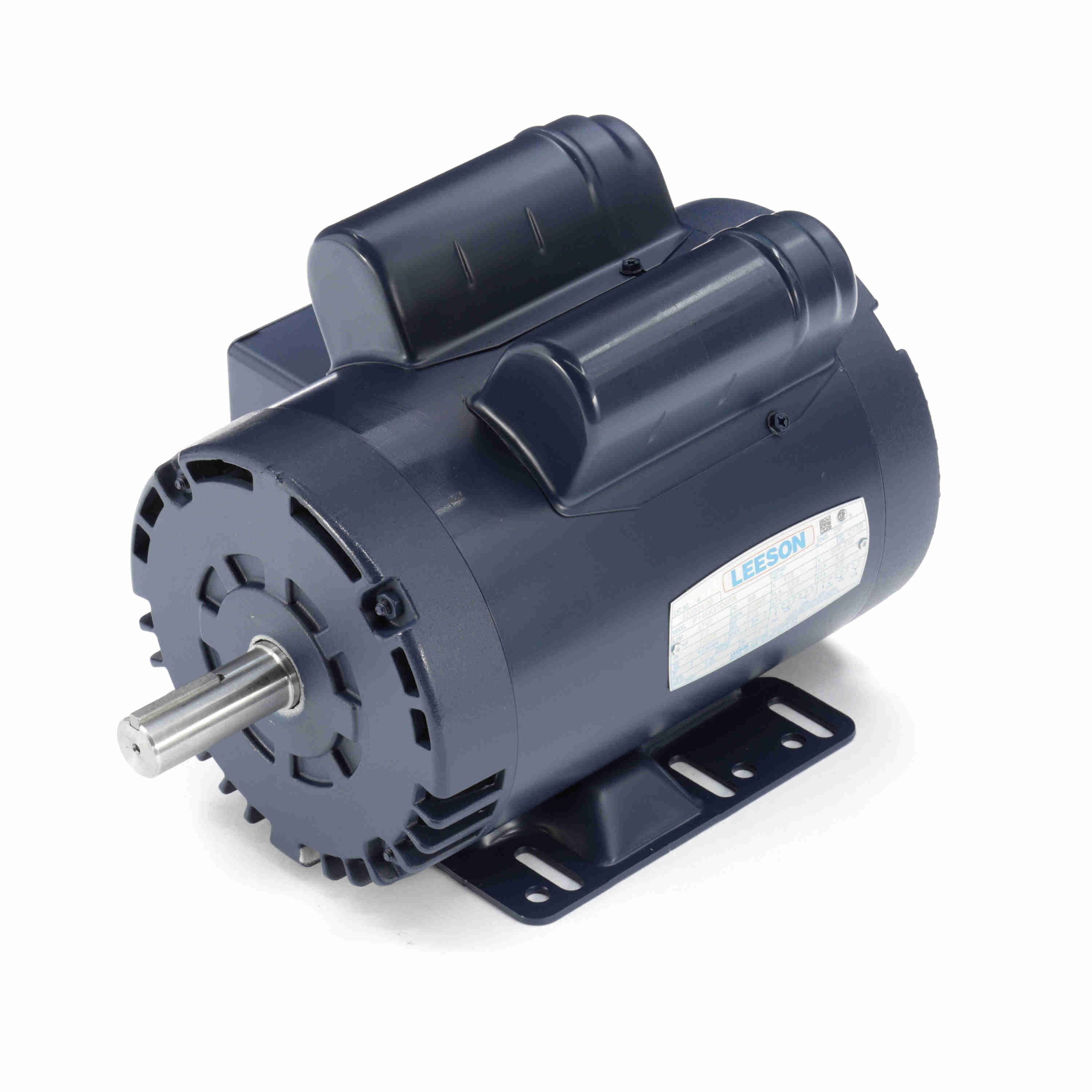

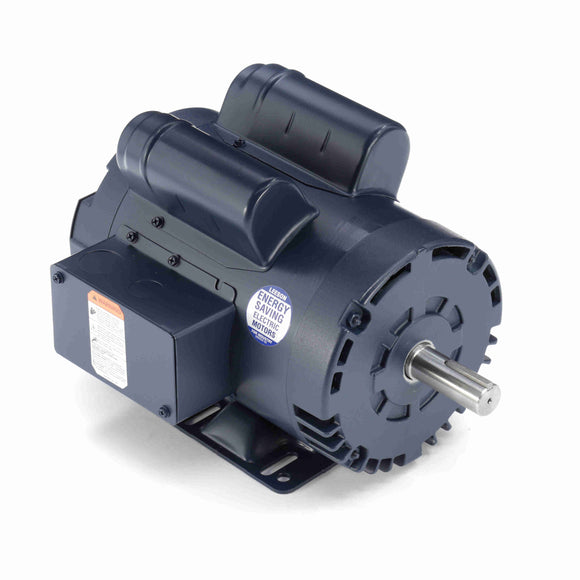

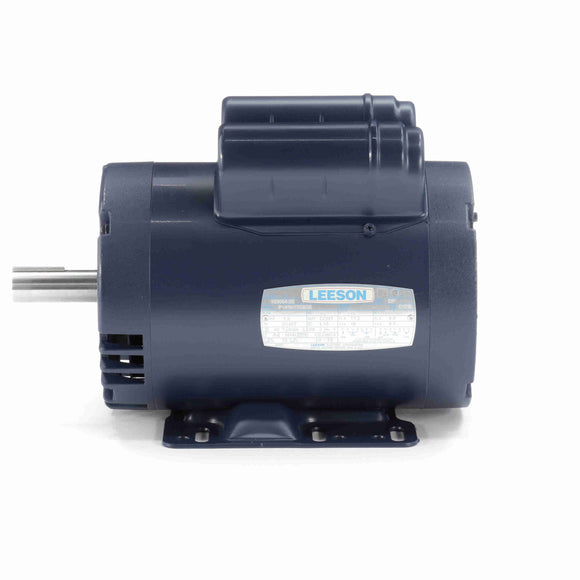

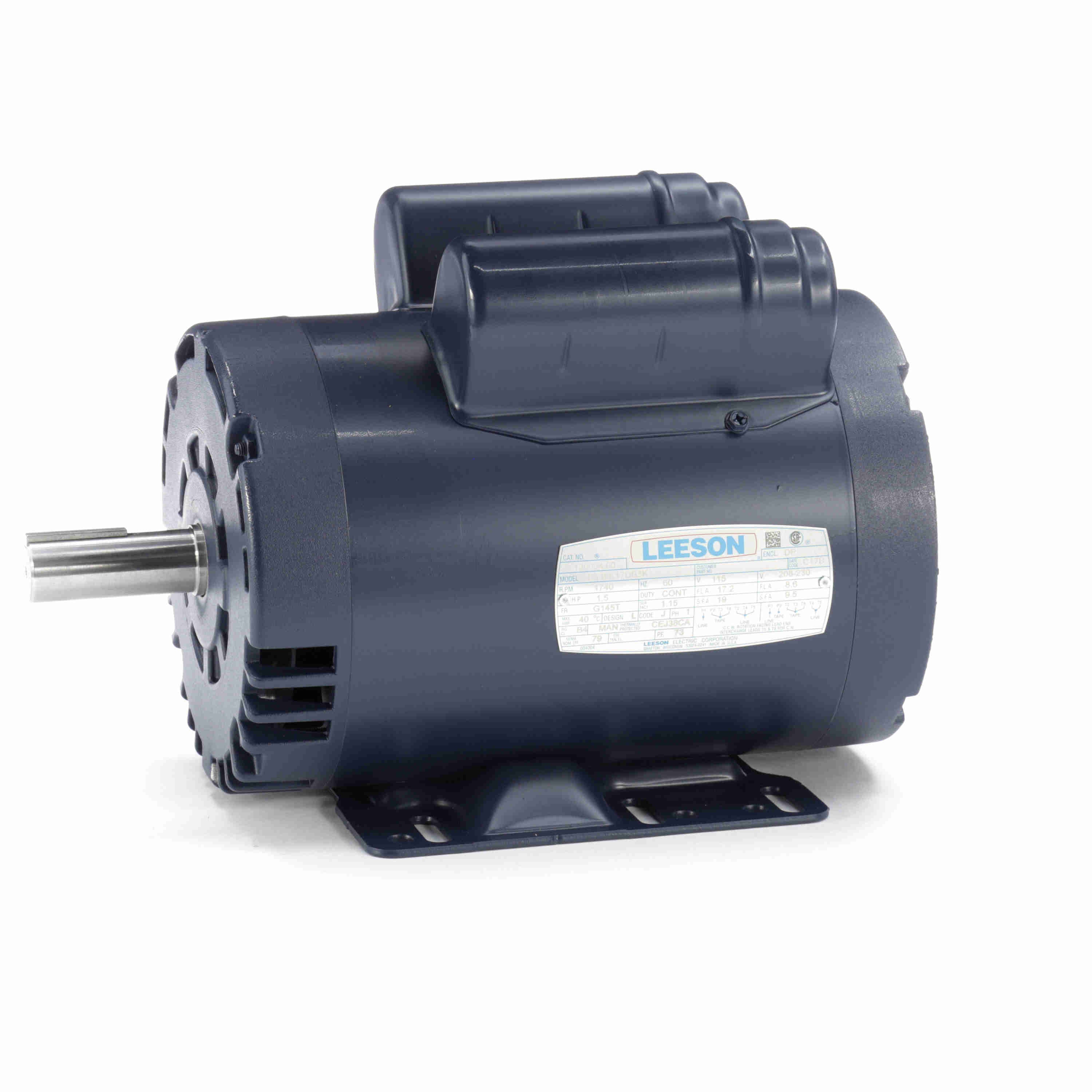

| Model : | P145K17DB3K | Catalog No : | 120004.00 |
| Part Description : | ..1 1/2HP..1740RPM.145.DP.115/208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.P145K17DB3K.....GENERAL PURPOSE.MANUAL....... | Category : | Air Compressor |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 1.50 Hp | Output KW : | 1.1 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 17.2/8.6 A | Speed : | 1740 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 79 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | L |
| KVA Code : | J | Frame : | G145T |
| Enclosure : | Drip Proof | Overload Protector : | Manual |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized ( Not Protector) |
| CSA : | Y | CE : | N |
| IP Code : | 22 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 12.28 in | Frame Length : | 7.00 in |
| Shaft Diameter : | 0.875 in | Shaft Extension : | 2.25 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720014707 |
| Weight : | 43.00 LB |
