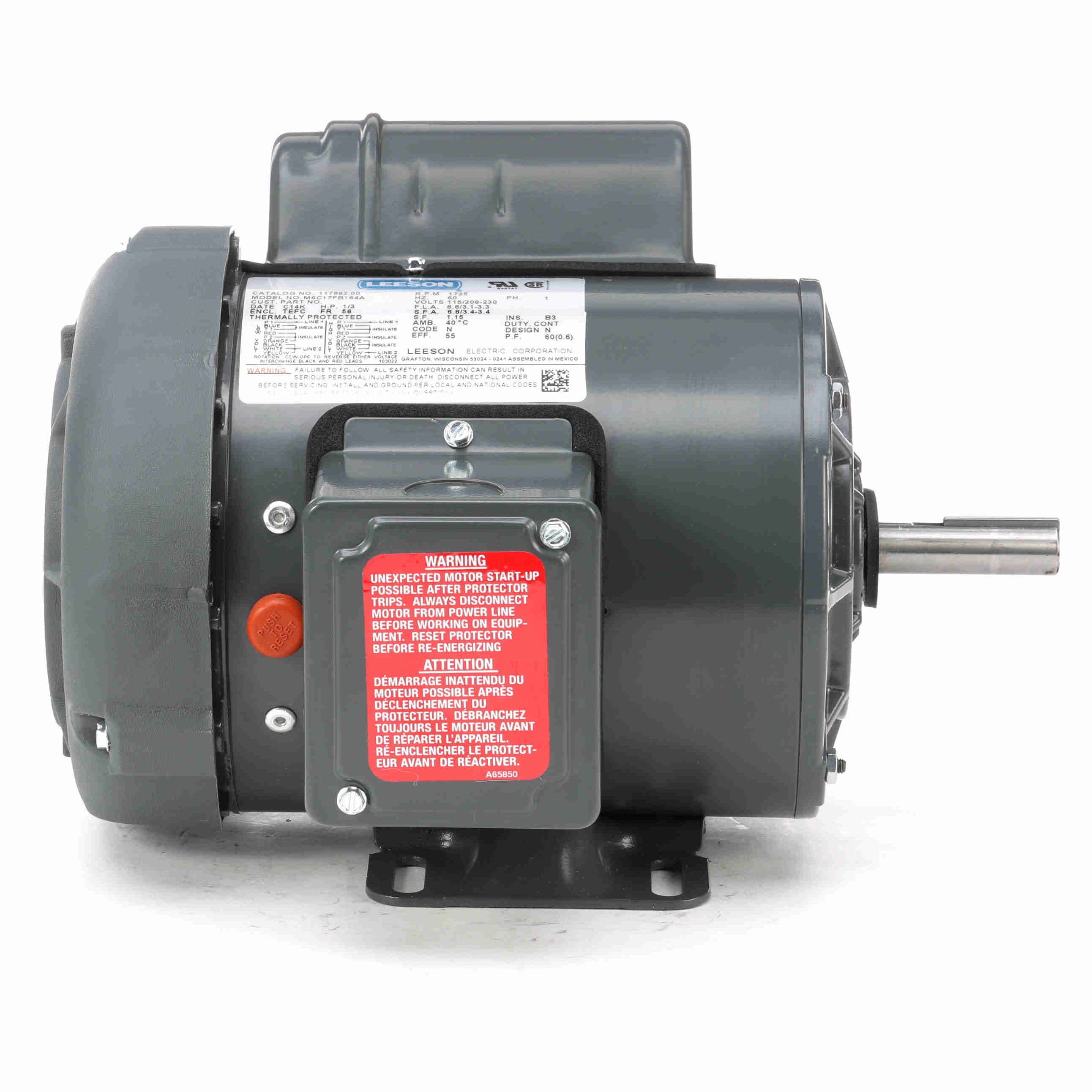

117862.00 Leeson 1/3HP Industry Agriculture High Torque Electric Motor, 1800RPM-1
117862.00 Leeson 1/3HP Industry Agriculture High Torque Electric Motor, 1800RPM-2
117862.00 Leeson 1/3HP Industry Agriculture High Torque Electric Motor, 1800RPM-3

117862.00 Leeson 1/3HP Industry Agriculture High Torque Electric Motor, 1800RPM

$794.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 117862.00 Barcode: 691720003633

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Manual overload protected
  • Double sealed ball bearings
  • Weather resistant reset button protection
  • Capacitor start provides high starting torque

General Specifications

General Specifications
Model : M6C17FB164A Catalog No : 117862.00
Part Description : ..1/3 HP..1800RPM.56.TEFC.115/230V.3PH.60HZ.CONT.40C.1.15SF.RIGID......AG DUTY........ Category : Agricultural
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.33 HP Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 6.6/3.1-3.3 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 55 % Duty : Continuous
Insulation Class : B Design Code : N
KVA Code : N Frame : 56
Enclosure : Totally Enclosed Fan Cooled Overload Protector : Manual
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 11.82 in Frame Length : 6.56 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720003633
Weight : 20.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 16.20 491.0 55.70 348.0 0 3.46 0.0 0.33
Pull-Up 9.33 283.0 39.90 249.0 1,343 1.76 0.0 0.33
Break-Down 7.60 230.0 44.60 279.0 1,536 1.49 0.0 0.33
Full Load 3.30 100.0 16.00 100.0 1,750 0.45 60.0 0.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.80
  • 0.150
  • 0.0
  • 23.3
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 2.85
  • 0.225
  • 27.9
  • 34.3
  • 1,784
  • 0.0
  • 3.96
  • 50 %
  • 2.95
  • 0.290
  • 43.2
  • 42.7
  • 1,771
  • 0.0
  • 7.96
  • 75 %
  • 3.15
  • 0.365
  • 50.5
  • 50.0
  • 1,760
  • 0.0
  • 12.00
  • 100 %
  • 3.30
  • 0.445
  • 55.0
  • 60.0
  • 1,750
  • 45.0
  • 16.00
  • 115 %
  • 3.40
  • 0.500
  • 57.3
  • 63.9
  • 1,744
  • 52.0
  • 18.50
  • 125 %
  • 3.55
  • 0.535
  • 58.3
  • 65.5
  • 1,739
  • 0.0
  • 20.20
  • 135 %
  • 3.70
  • 0.620
  • 58.5
  • 68.0
  • 1,730
  • 0.0
  • 22.50
  • 150 %
  • 3.67
  • 0.635
  • 58.8
  • 75.2
  • 1,723
  • 0.0
  • 24.40
  • 175 %
  • 4.25
  • 0.745
  • 58.4
  • 76.2
  • 1,702
  • 0.0
  • 28.80
  • 200 %
  • 4.85
  • 0.890
  • 55.9
  • 79.8
  • 1,674
  • 0.0
  • 33.50
