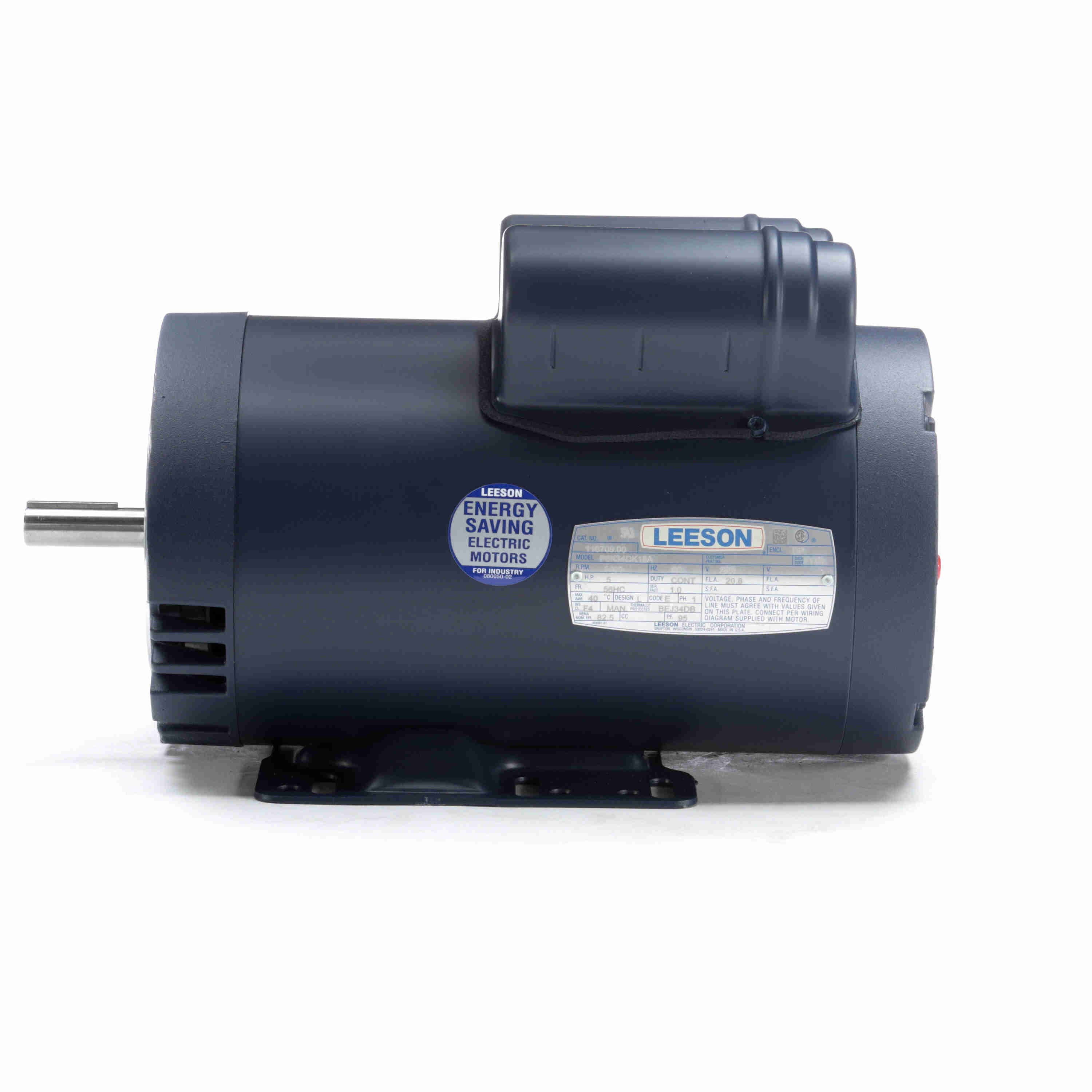

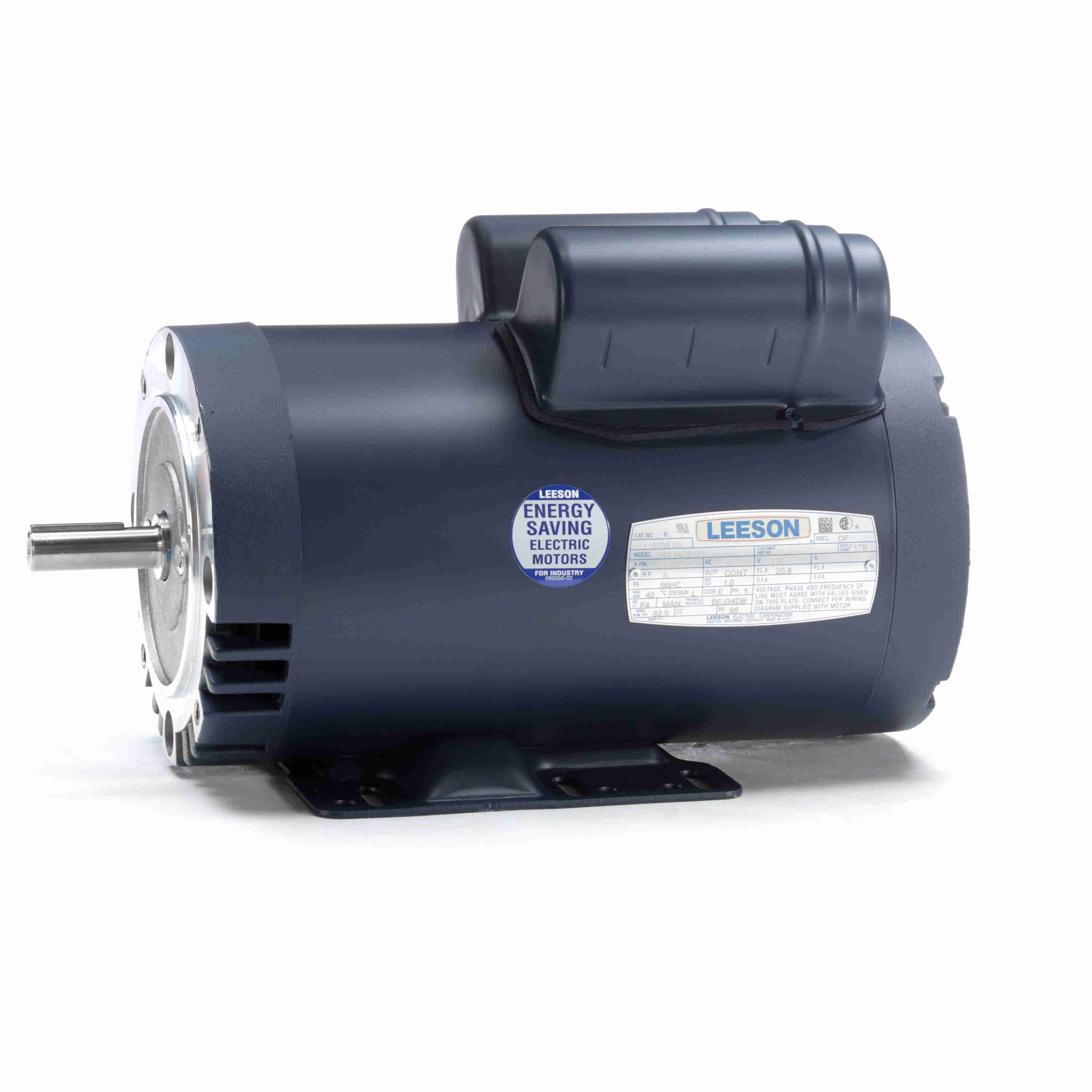

116709.00 Leeson 5HP Pressure Washer Electric Motor, 3450RPM

$1,708.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116709.00 Barcode: 691720346655

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720346655 Weight: 51.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 230 V
Current: 20.8 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 82.5 % Power Factor: 95
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: E
Frame: 56HC Enclosure: Drip Proof
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: .52 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.84 in
Frame Length: 9.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 14.30 191.0 3,100 5.00
Pull-Up 0.00 13.30 177.0 2,650 5.00
Locked-Rotor 107.00 12.30 164.0 0 5.00
Full Load 20.80 7.50 100.0 3,470 5.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 4.50 7.00 10.85 15.50 20.53 26.45 33.70
Rated Output (KW) 0.36 1.31 2.28 3.35 4.49 5.78 7.30
Efficiency (%) 0.0 72.5 82.8 83.8 82.5 79.4 73.6
Power Factor (%) 34.8 81.3 91.4 93.8 95.0 94.9 94.1
Speed (RPM) 3,598 3,570 3,543 3,511 3,470 3,425 3,357
Temp. Rise @ FL 0.0 0.0 0.0 0.0 105.0 0.0 0.0
Torque (ft-lbs) 0.00 1.87 3.75 5.62 7.50 9.42 11.25
