Features
Features
- Double shielded ball bearings
- Designed for belted loads
- High efficient copper windings
- High starting and breakdown torque
- Dual rotation
General Specifications
General Specifications

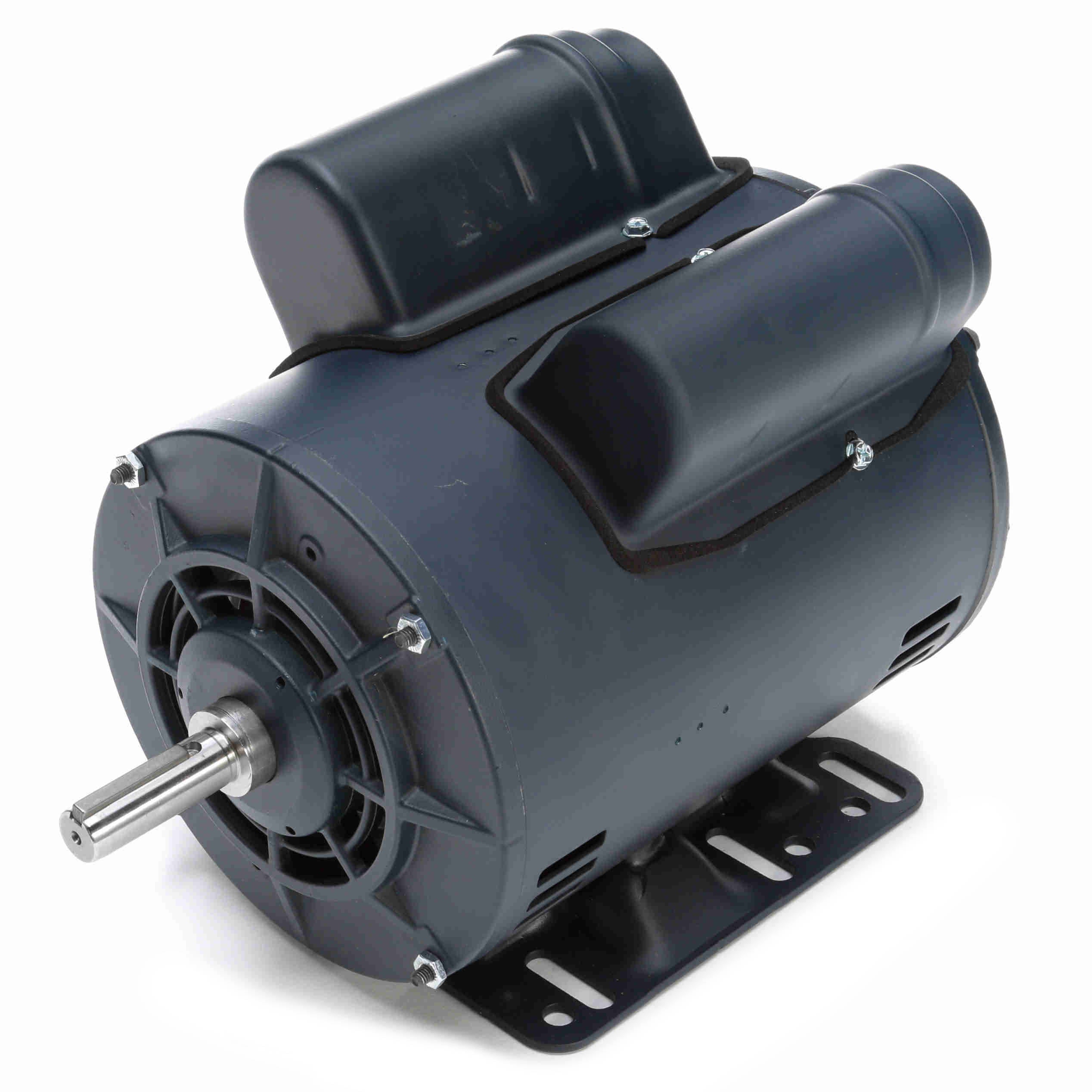

| Model : | P6K34DB22C | Catalog No : | 116523.00 |
| Part Description : | ..5SPLHP..3450RPM.56.DP.208-230V.1PH.60HZ.CONT.40C.1.0SF.RIGID.P6K34DB22C.....AIR COMPRESSOR.MANUAL....... | Category : | Air Compressor |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 5 Hp | Output KW : | 5.3 kW |
| Frequency : | 60 Hz | Voltage : | 208-230 V |
| Current : | 15.0-15.0 A | Speed : | 3450 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 70 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | NO DESIGN CODE |
| KVA Code : | C | Frame : | 56 |
| Enclosure : | Drip Proof | Overload Protector : | Manual |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 205 |
| Opp Drive End Bearing Size : | 203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 22 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 11.44 in | Frame Length : | 7.56 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720349847 |
| Weight : | 30.00 LB |
