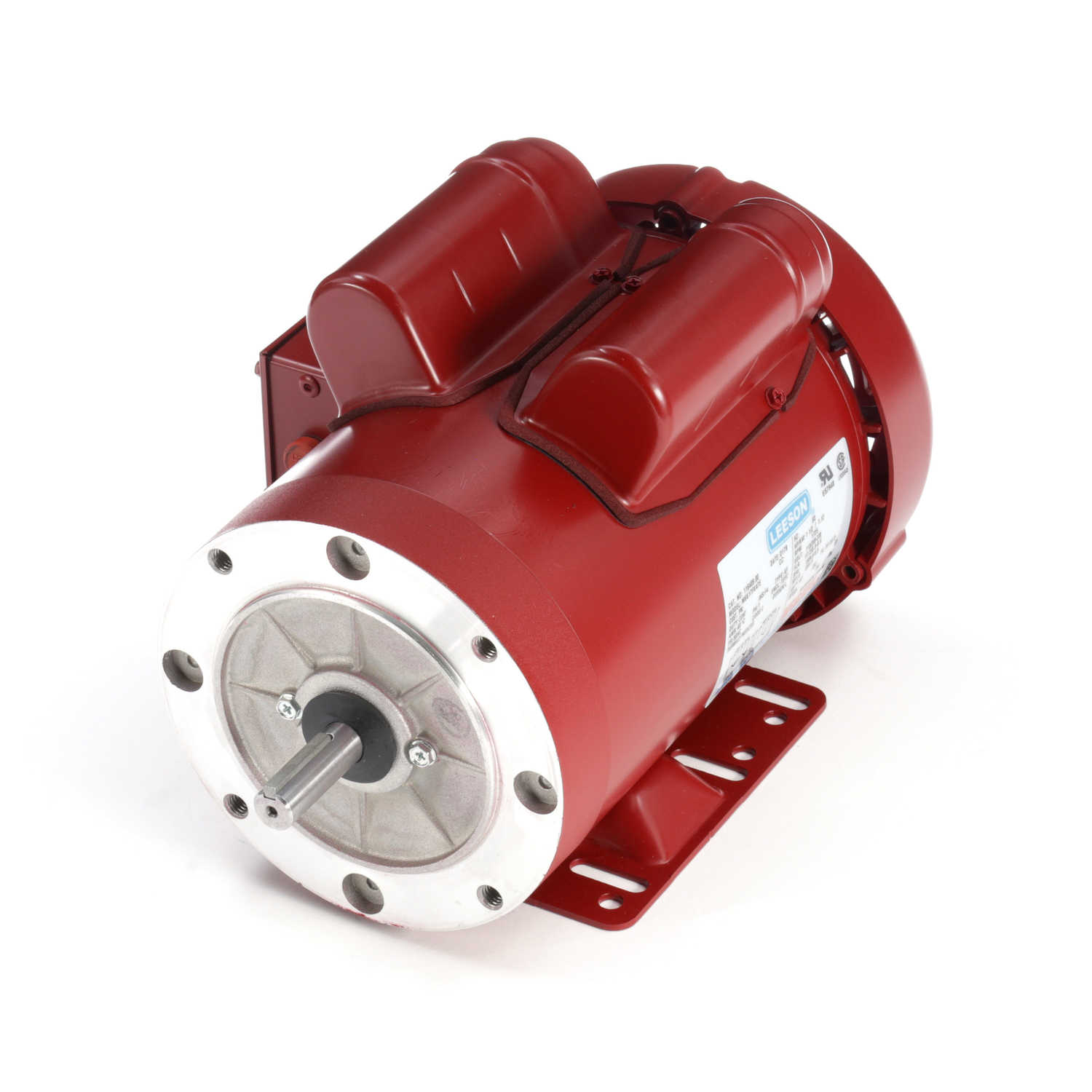

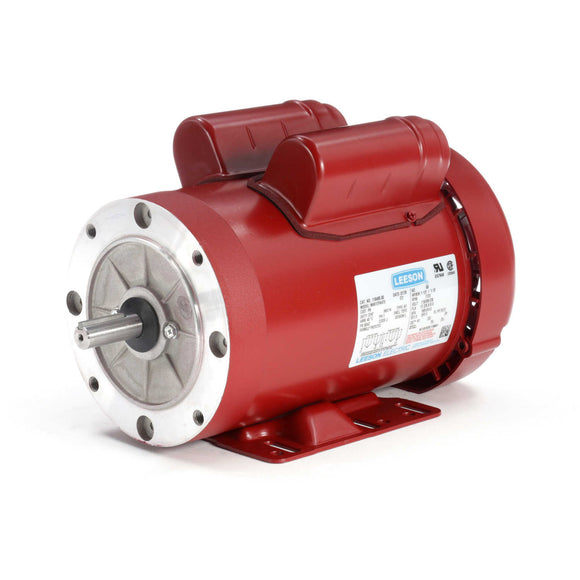

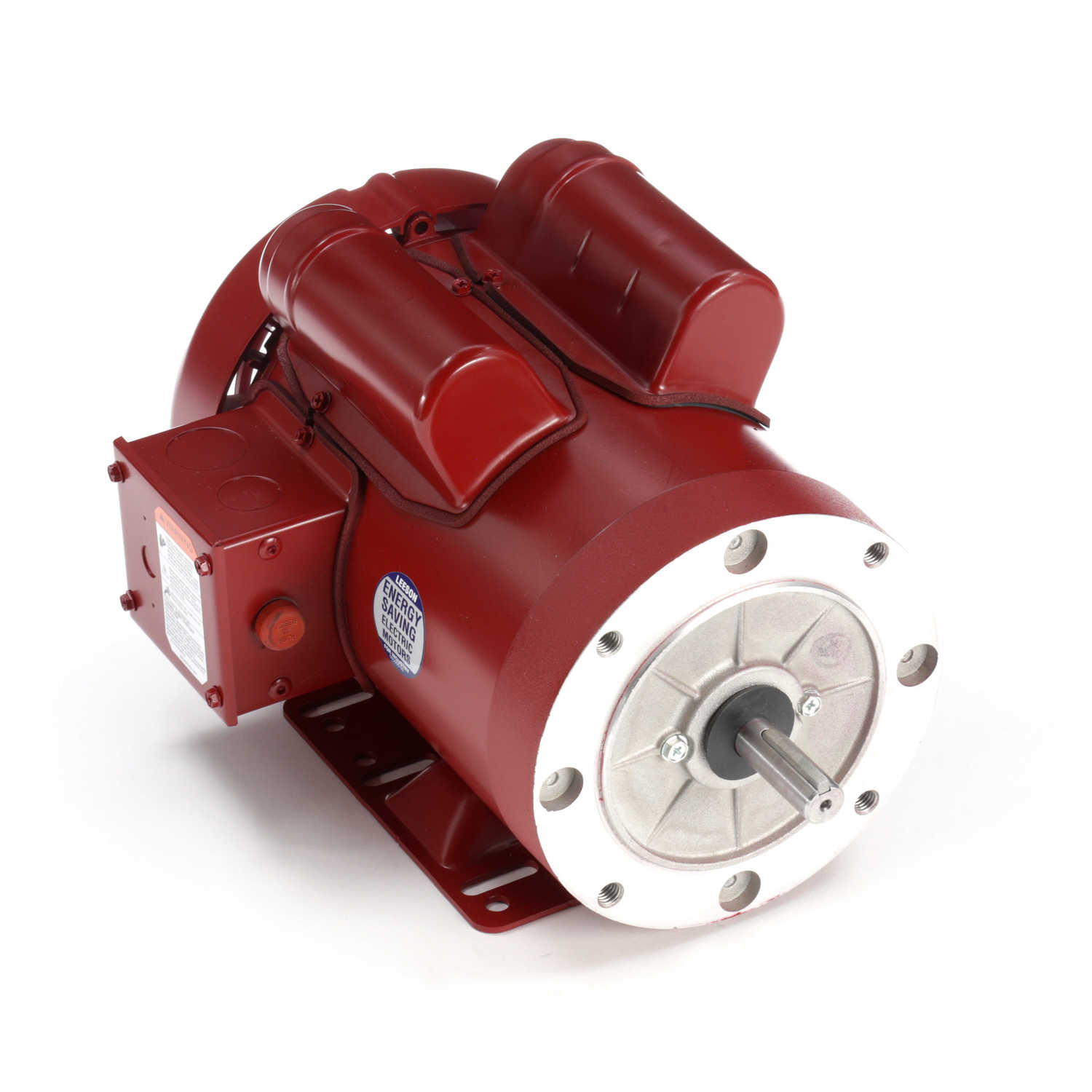

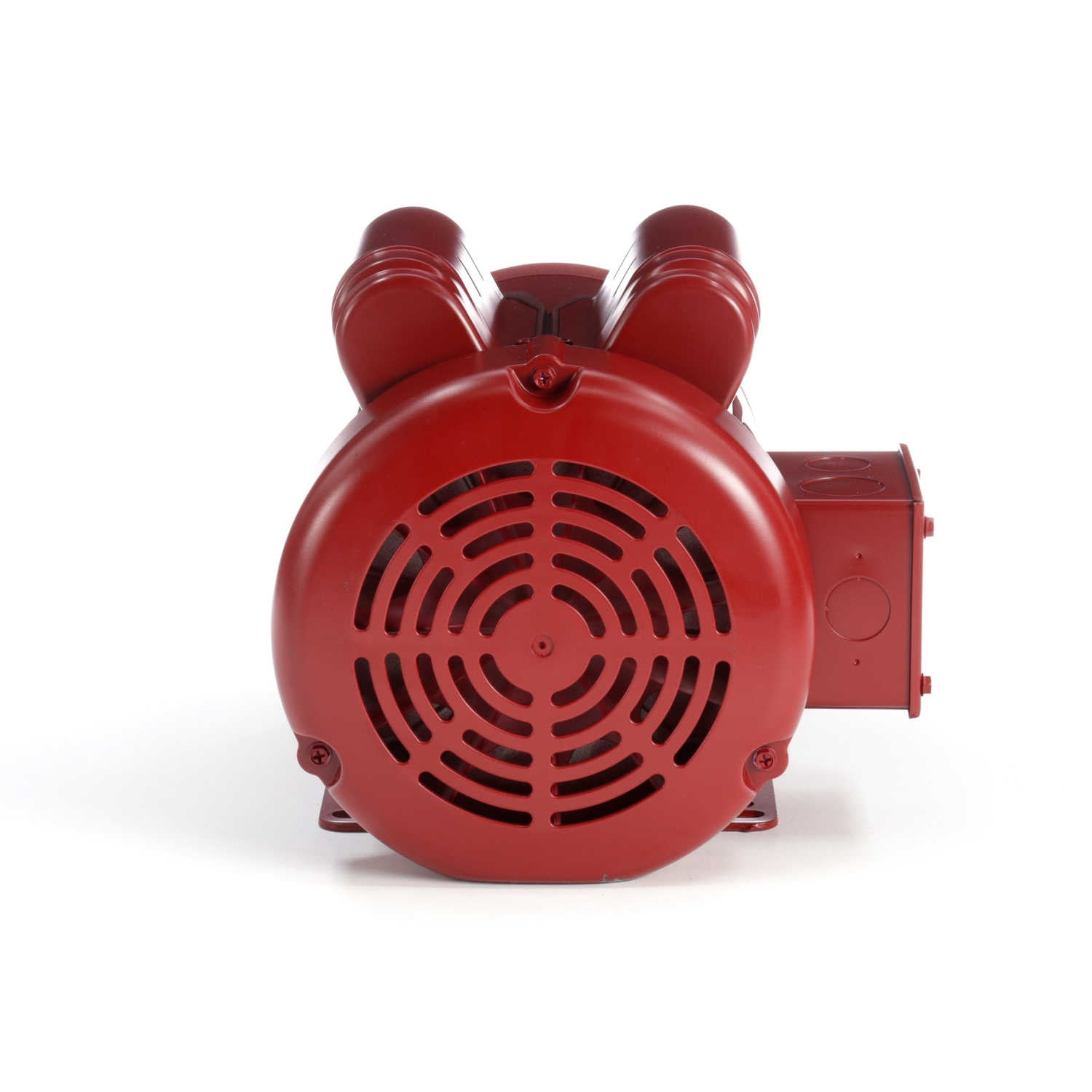

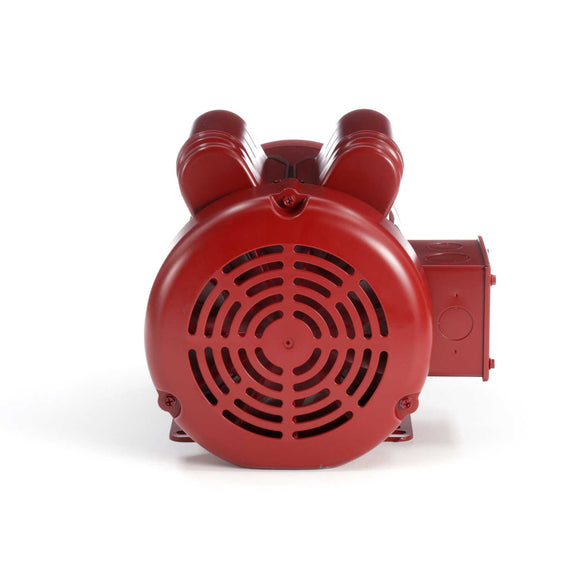

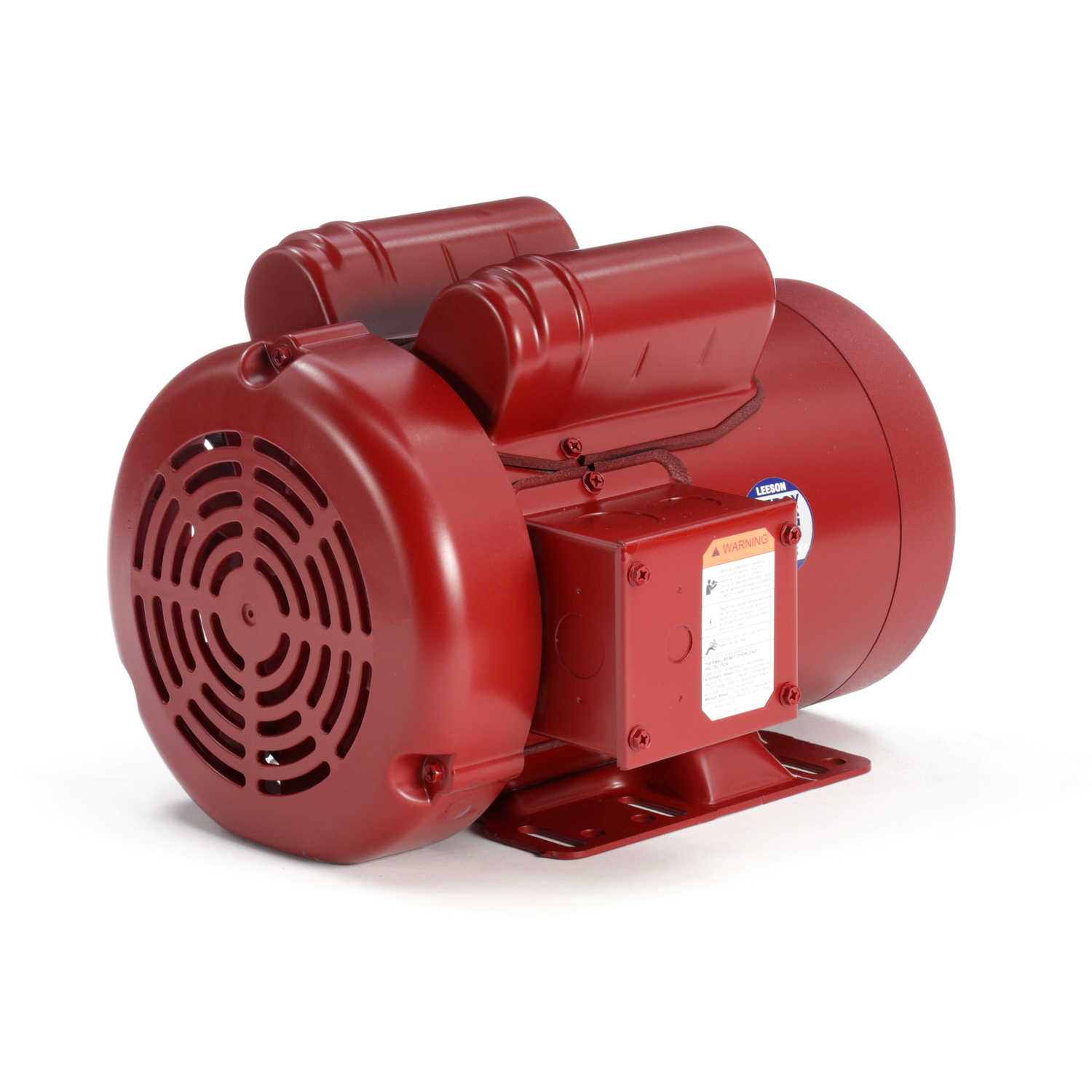

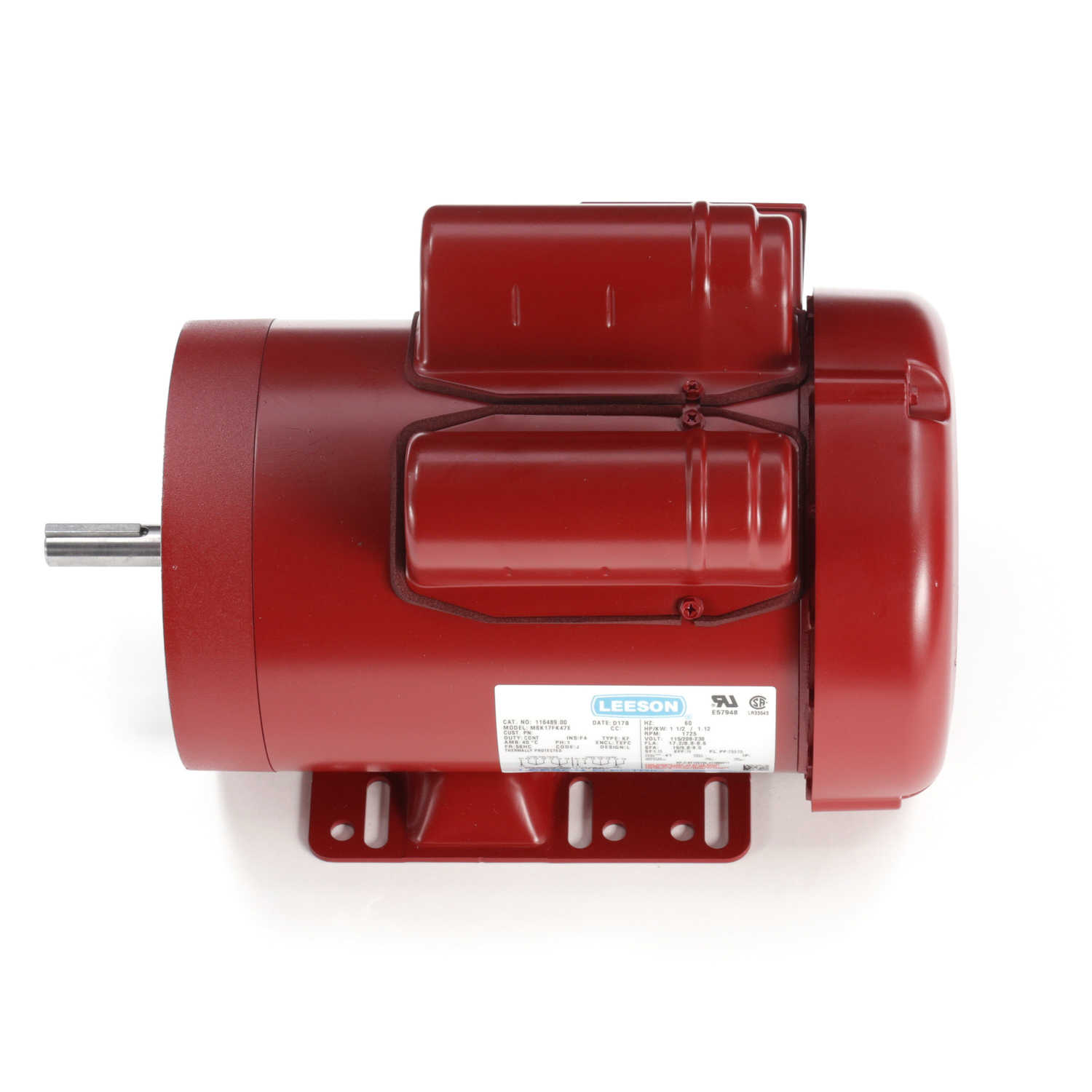

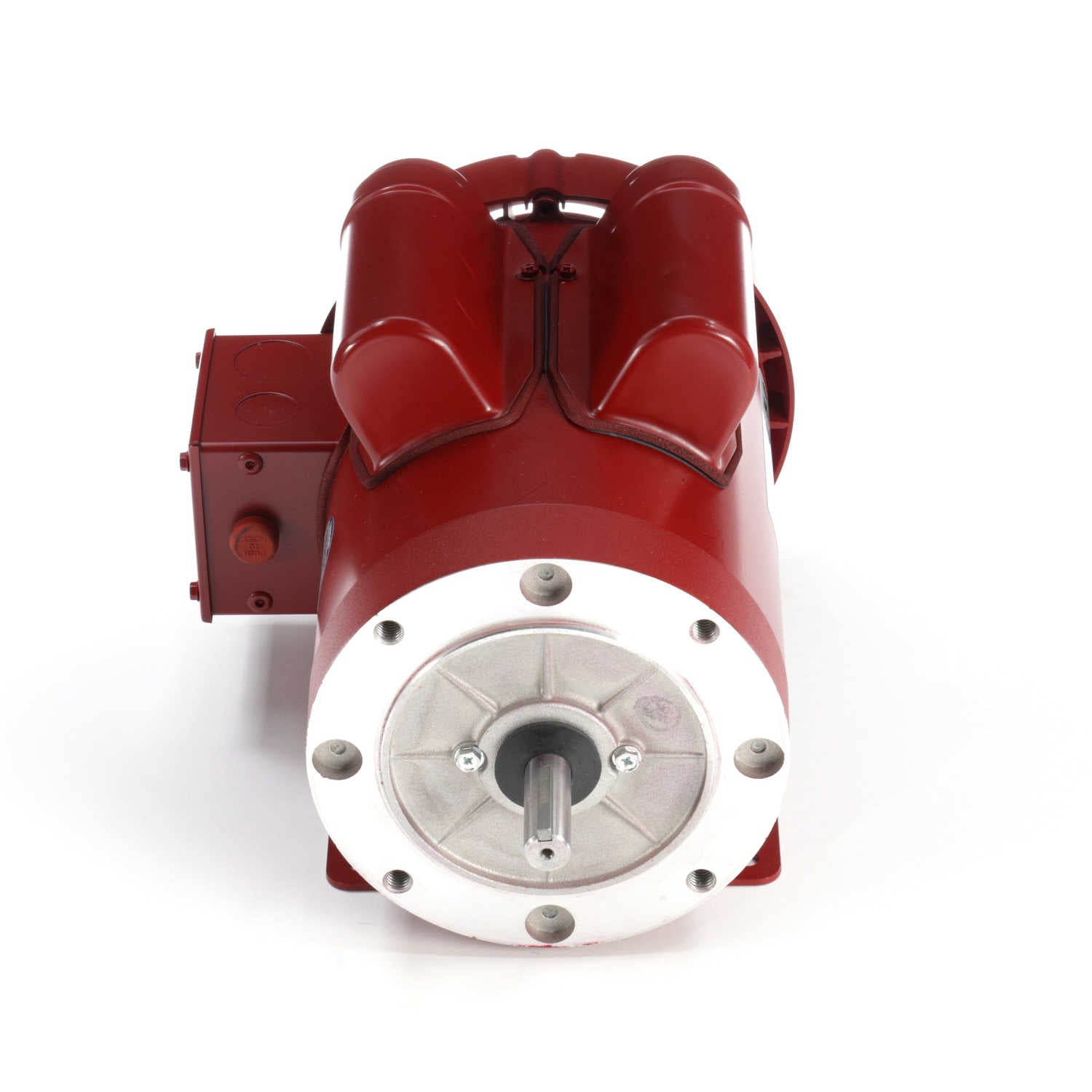

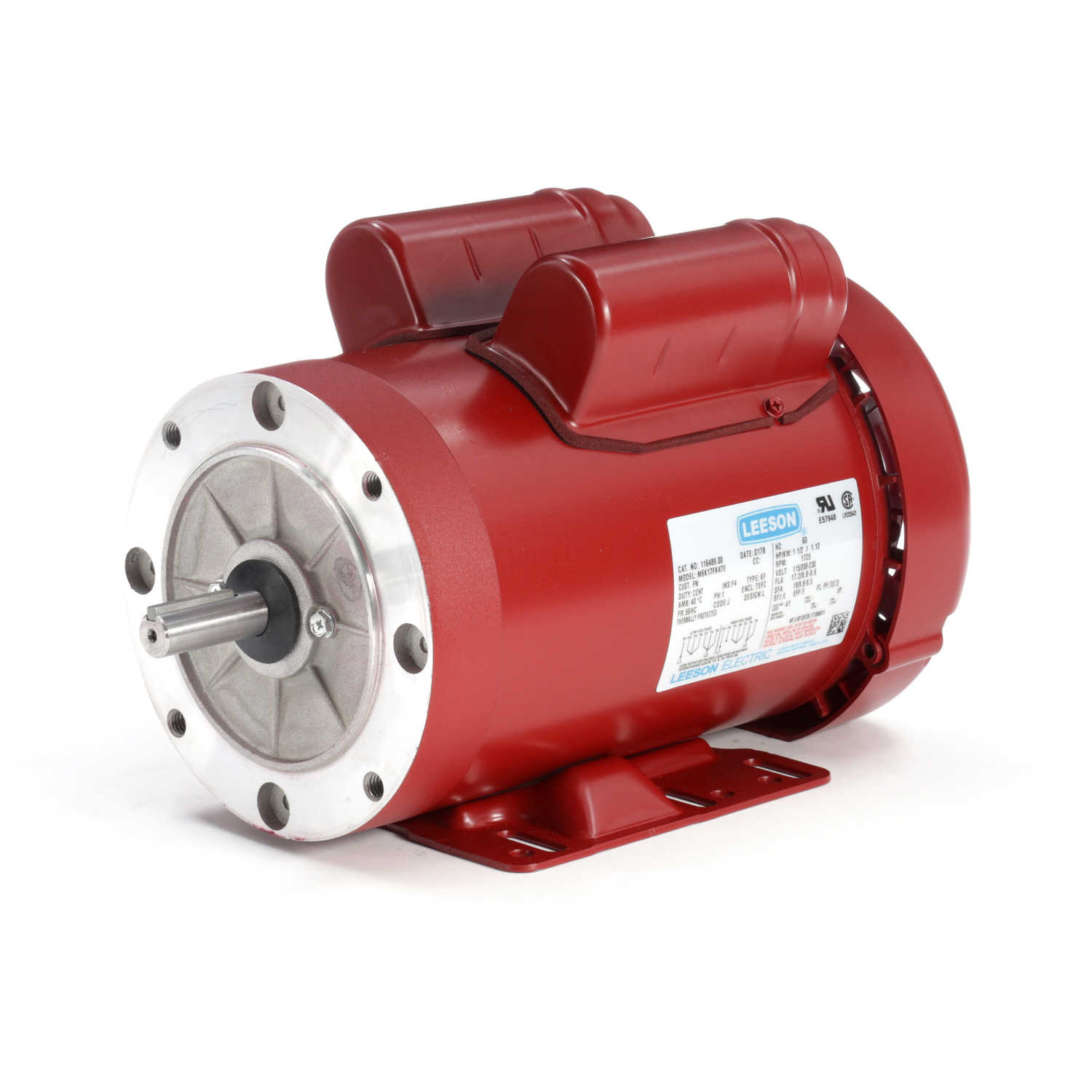

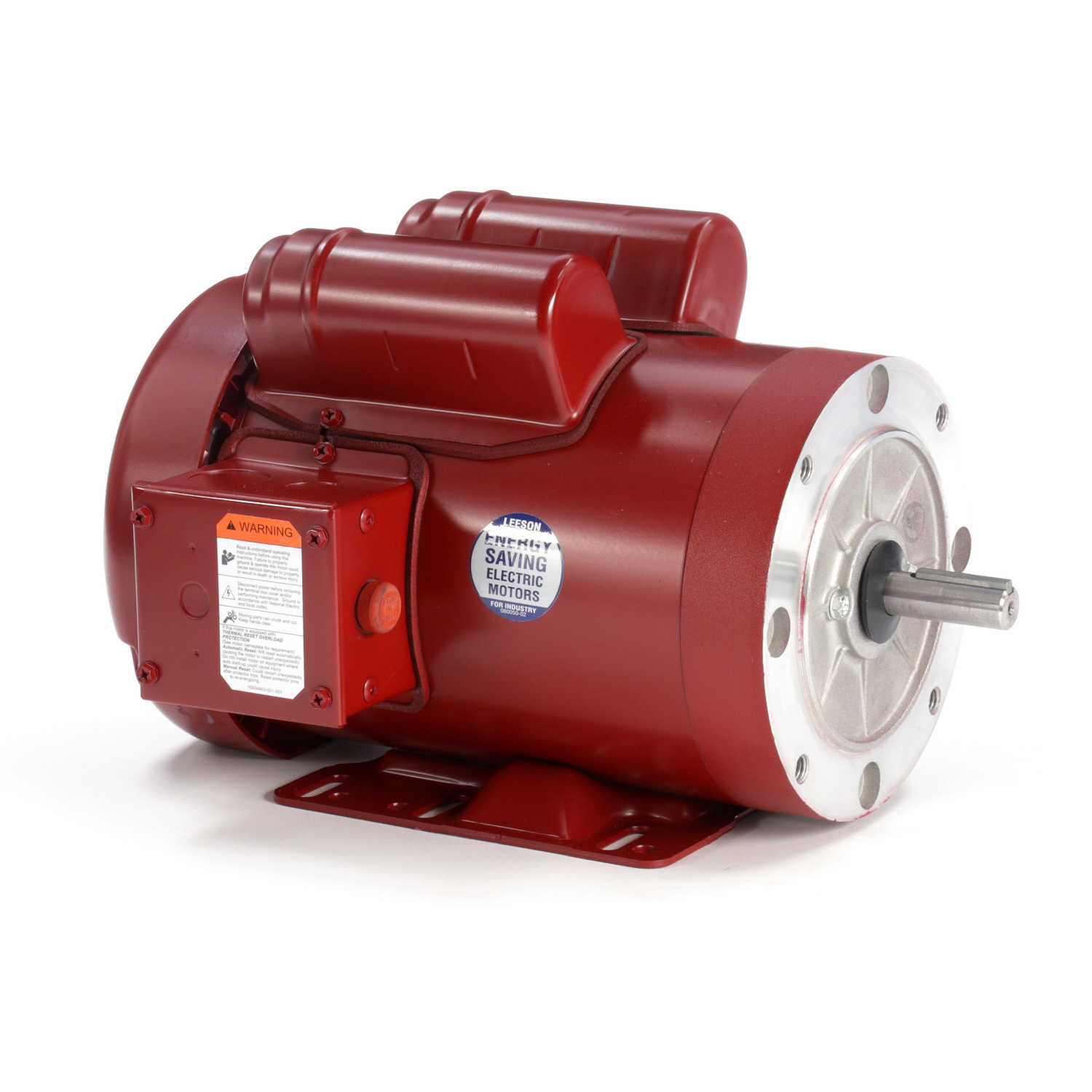

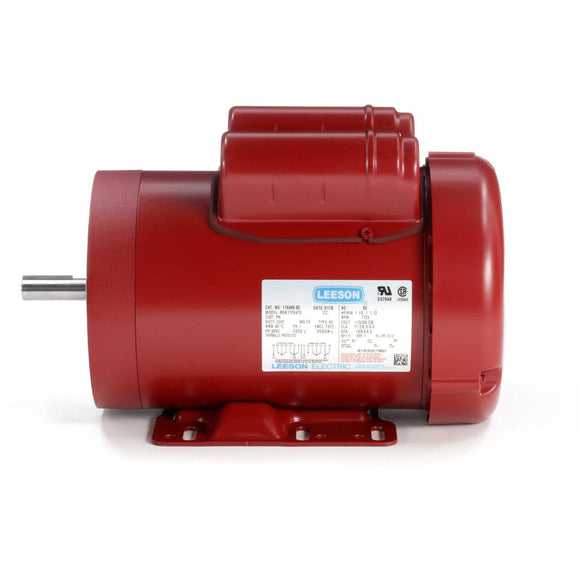

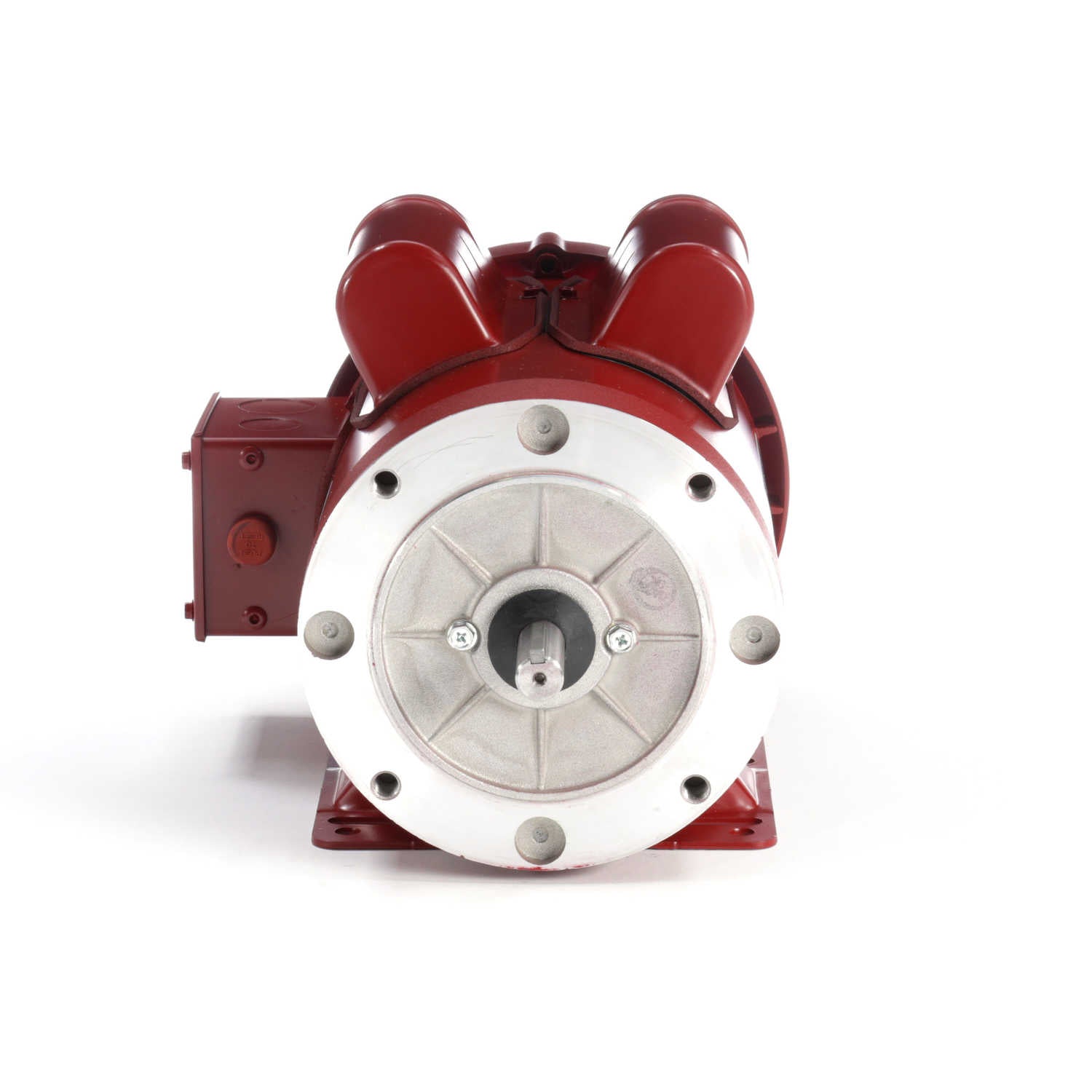

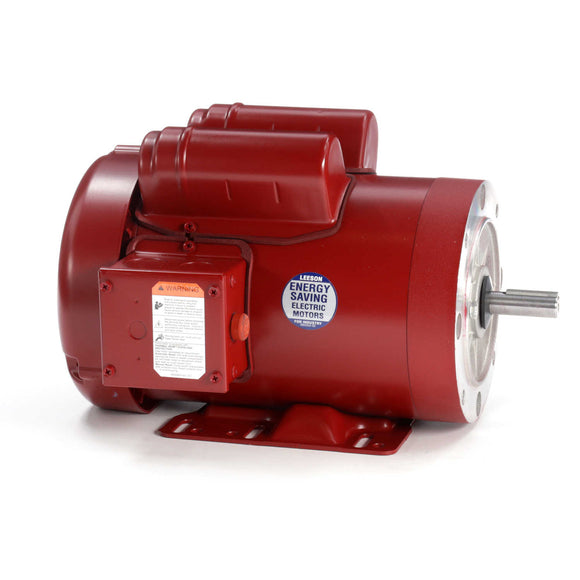

116489.00 Leeson 1.5HP Hi-Torque Agriculture Duty Electric Motor, 1800RPM

$2,060.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116489.00 Barcode: 691720328774

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Gasketed capacitor cases and conduit box covers
  • Meets or exceeds NEMA ® service factors
  • High Torque ratings
  • Manual rest overload protection
  • UL recognized component listing and CSA certified
  • 1 year warranty

General Specifications

General Specifications
Model : M6K17FK47E Catalog No : 116489.00
Part Description : ..1 1/2HP..1725RPM.56H.TEFC.115/208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID C.M6K17FK47E.....Farm Duty.MANUAL....1.1kW... Category : Agricultural
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1.50 HP Output KW : 1.1 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 17.2/8.8-8.6 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 79 % Duty : Continuous
Insulation Class : F Design Code : L
KVA Code : J Frame : 56HC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : Manual
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 12.99 in Frame Length : 7.50 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720328774
Weight : 40.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 9.30 208.0 1,400 0.00 0.0 1.50
Full Load 8.40 100.0 4.48 100.0 1,758 1.41 0.0 1.50
Break-Down 21.40 255.0 10.80 241.0 1,550 5.10 0.0 1.50
Locked-Rotor 51.00 607.0 13.00 290.0 0 9.60 0.0 1.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 5.20
  • 0.240
  • 0.0
  • 20.1
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 5.49
  • 0.452
  • 65.3
  • 35.8
  • 1,790
  • 0.0
  • 1.16
  • 50 %
  • 6.13
  • 0.750
  • 75.8
  • 53.2
  • 1,779
  • 0.0
  • 2.25
  • 75 %
  • 7.03
  • 1.064
  • 78.7
  • 65.8
  • 1,770
  • 0.0
  • 3.33
  • 100 %
  • 8.40
  • 1.414
  • 79.1
  • 73.2
  • 1,758
  • 84.0
  • 4.48
  • 125 %
  • 9.78
  • 1.767
  • 79.0
  • 78.6
  • 1,746
  • 0.0
  • 5.63
  • 150 %
  • 11.69
  • 2.181
  • 76.7
  • 81.1
  • 1,729
  • 0.0
  • 6.81
