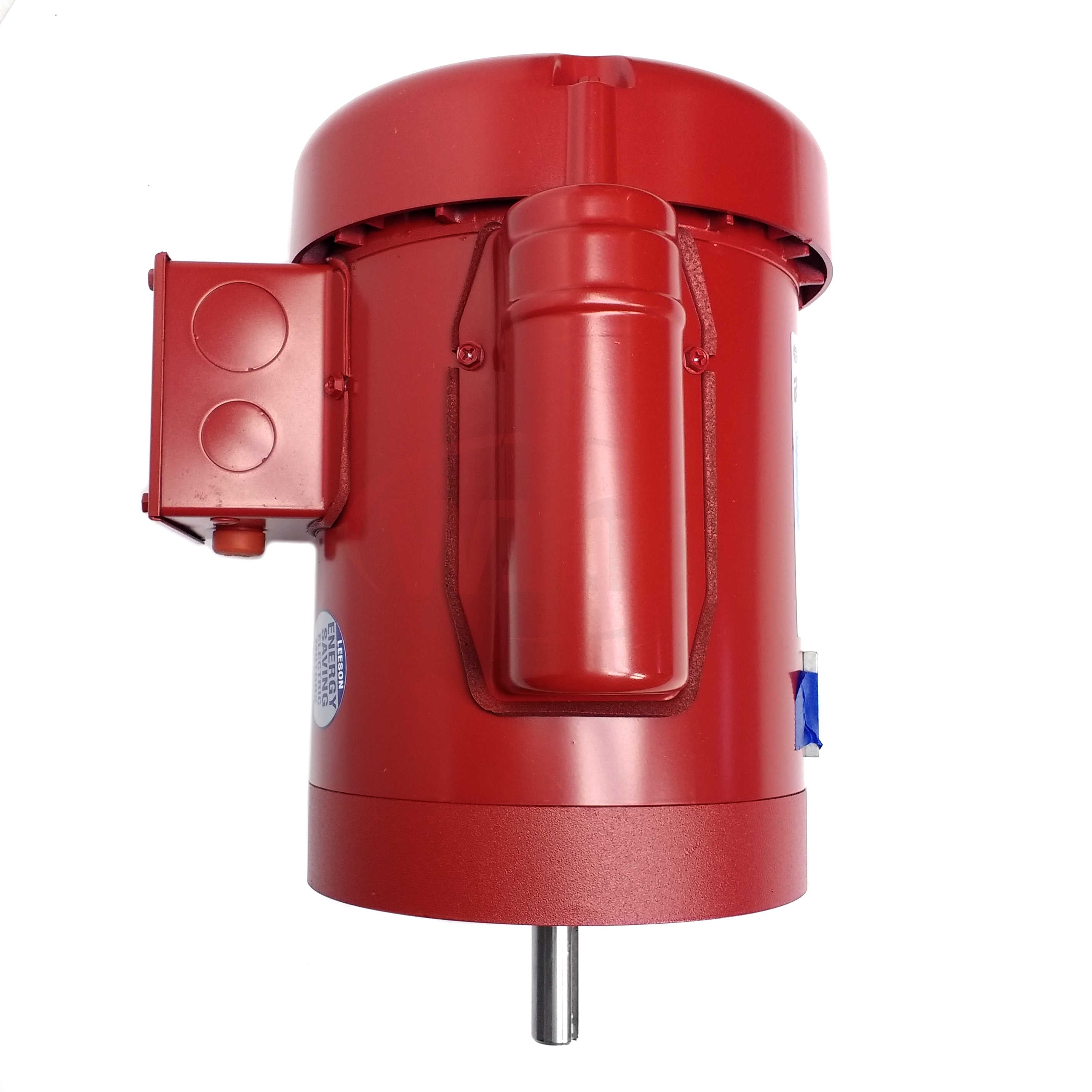

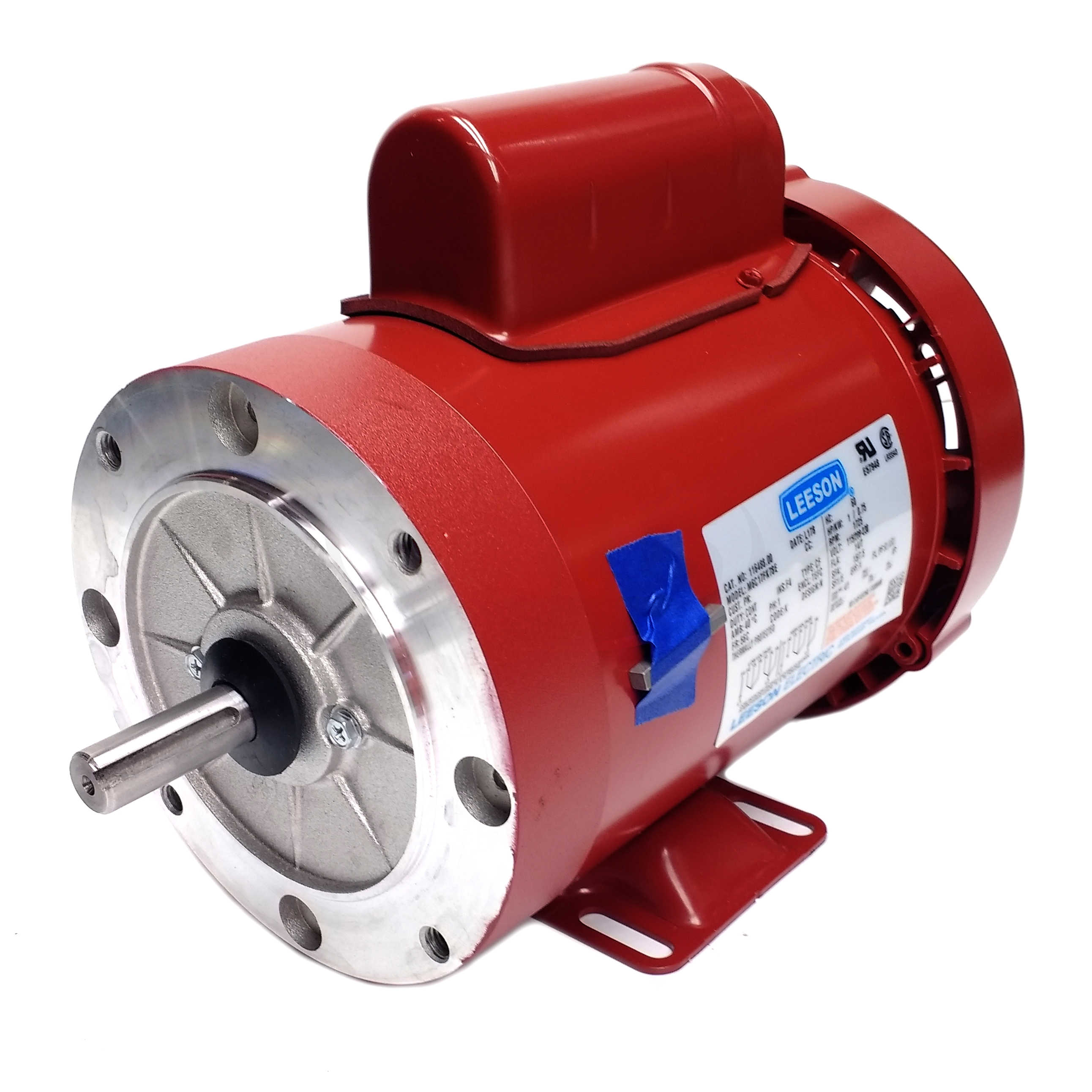

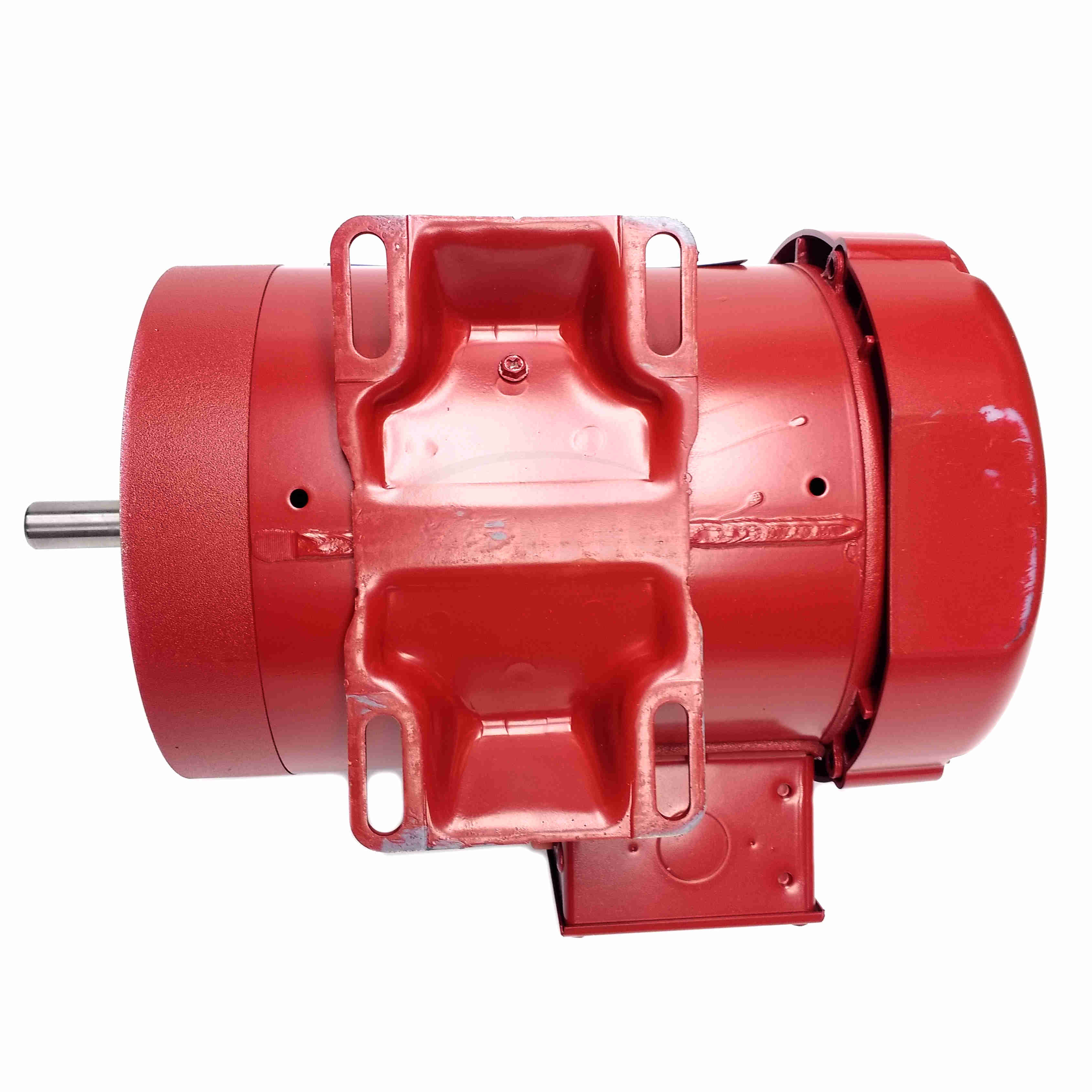

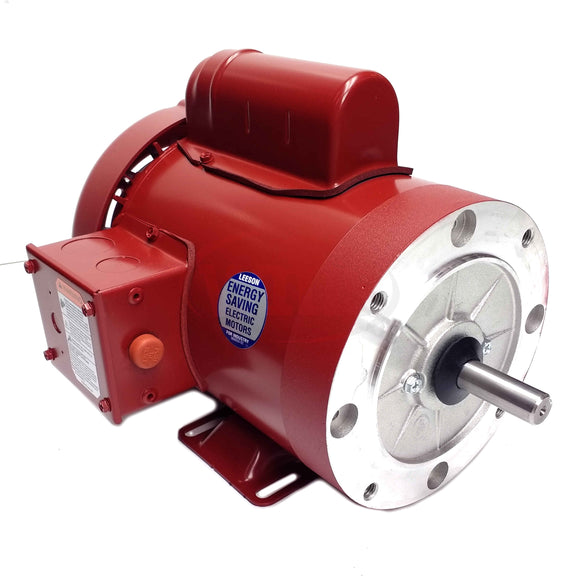

1HP Leeson Hi-Torque Agriculture Duty Electric Motor

$1,830.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116488.00 Barcode: 691720328767

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Product Features

Catalog No 116488.00 Model M6C17FK78E
Product type AC MOTOR Stock Stock
Description 1HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID C.Farm Duty.M6C17FK78E
 Engineering Data
Volts 115 Volts 208-230 Volts
F.L. Amps 14 F.L. Amps 7 F.L. Amps
S. F Amps 15 S. F Amps 7.5 S. F Amps
RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE CF
KW 0.75
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code K
Insul Class F Protection MANUAL Therm.Prot. CED2797
Eff 100% 74 Eff 75% PF 63
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type Inverter Type Speed Range NONE
Motor Wt. 32 LB Enclosure TEFC Lubrication POLYREX EM

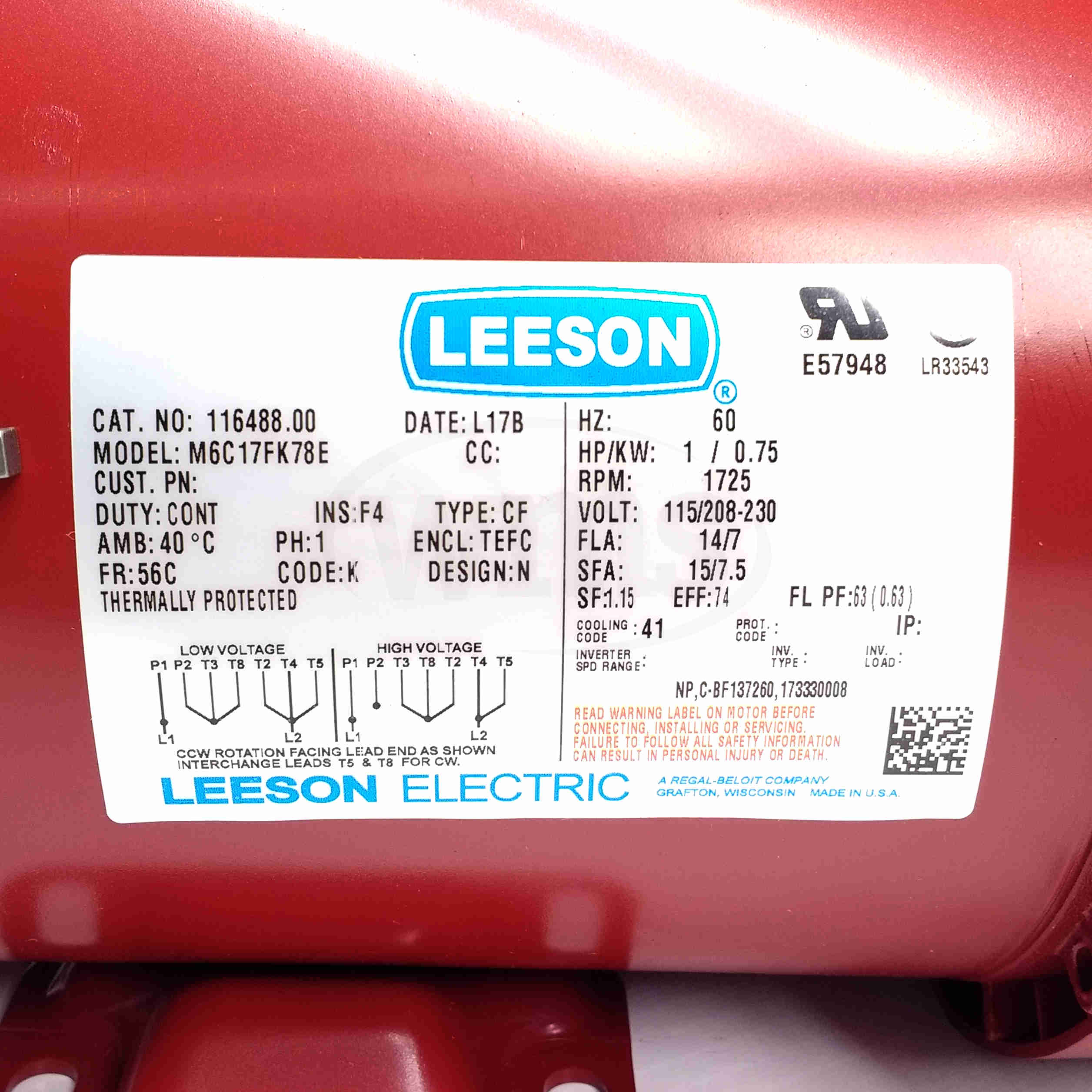

Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

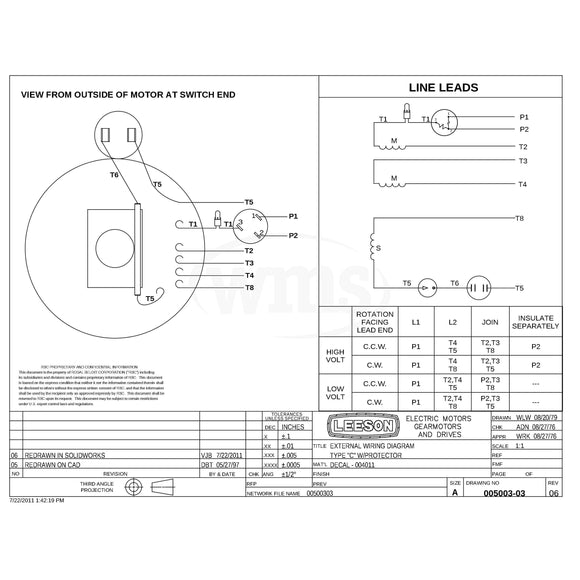

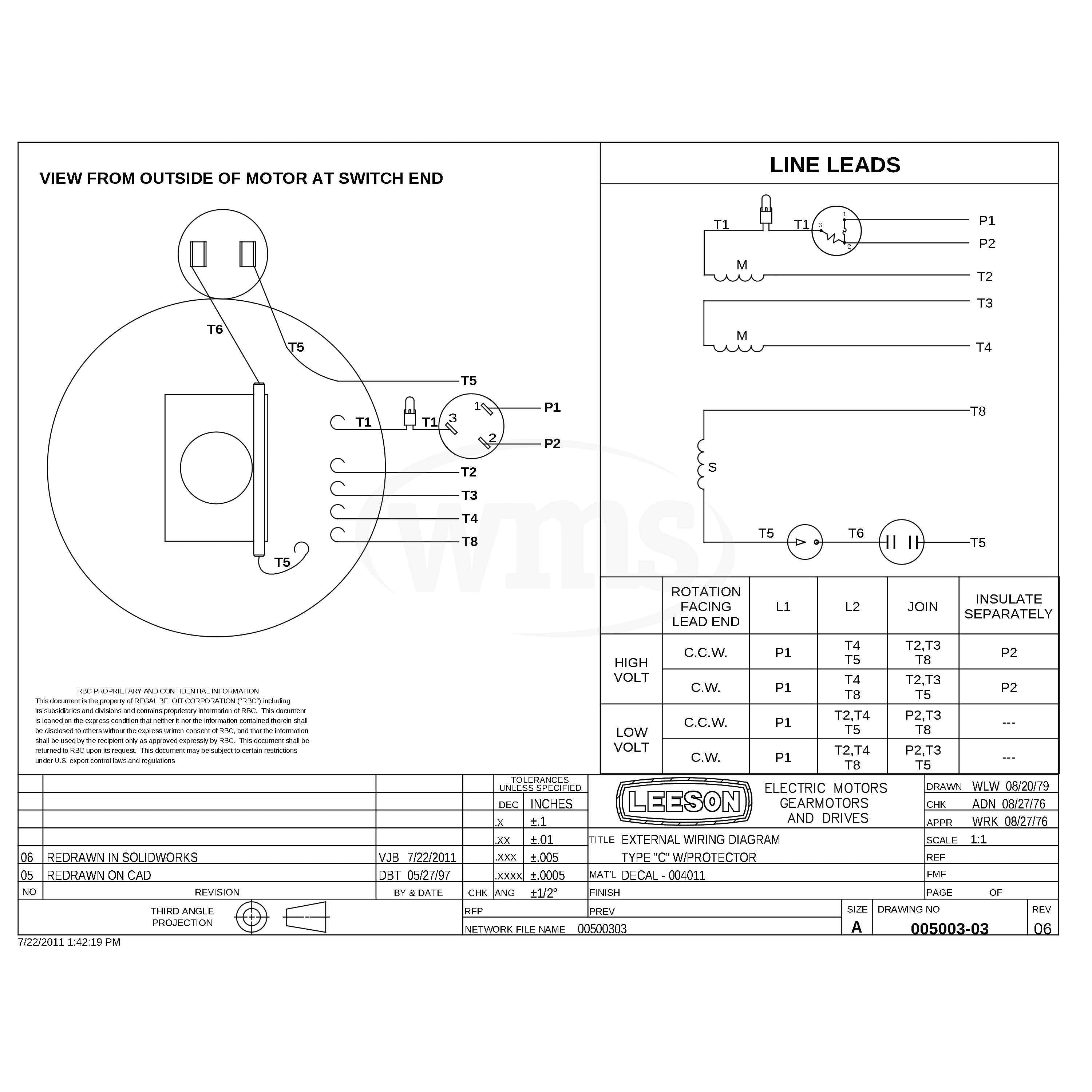

Assembly NONE Shaft Dia. 5/8 IN Ext. Diag. 005003.03

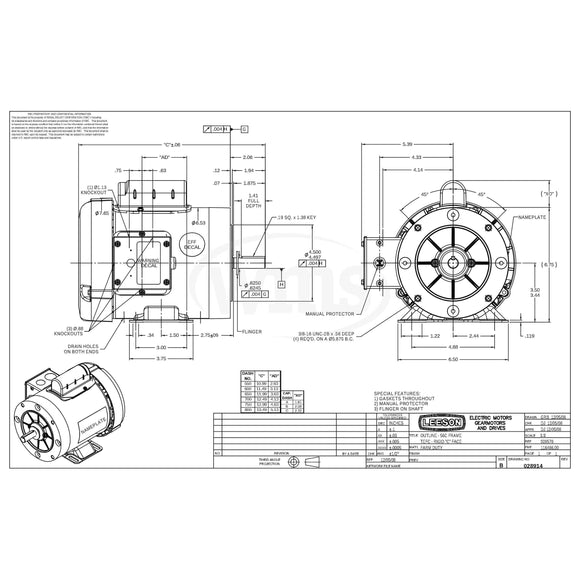

Cust Part No Outline 028914-650B Ext. Diag2
Packaging B Winding C634259
Carton Label Leeson Farm Duty     GROUP: 3
Iris Paint RED - LEESON FARM DUTY Test Card 04
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM OZ-FT Inertia (WK²) .099 LB-FT^2
Torque 48.16(Full Load) 132.6(Break Down) 117.6(Pull Up) 141.8(Locked Rotor)
CURRENT (amps) 7.01(Full Load) 17.9(Break Down) 29(Pull Up) 37.3(Locked Rotor)
Efficiency (%) 0(Full Load) 67.8(75% Load) 61.6(50% Load) 46.6(25% Load)
PowerFactor 0(Full Load) 57.8(75% Load) 46.9(50% Load) 33.3(25% Load)
Speed Torque Curve @ 60 Hz, 230 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 7.01 100.0 48.16 100.0 1751 1.063 - 1.0
BD 17.9 255.0 132.6 275.0 0.0 3.98 - 1.0
PU 29.0 414.0 117.6 244.0 0.0 4.37 - 1.0
LR 37.3 532.0 141.8 294.0 0.0 7.35 - 1.0
SOURCE: CALCULATED GROUP: 3
Load Curve Data @60 Hz, 230 Volts, 1 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 4.85 0.206 1797 0.0 0.0 0.0 0.0 -
0.25 5.24 0.401 1787 11.74 46.6 33.3 0.0 -
0.5 5.61 0.606 1776 23.67 61.6 46.9 0.0 -
0.75 6.2 0.825 1764 35.74 67.8 57.8 0.0 -
1.0 7.01 1.063 1751 48.16 70.4 65.9 88.6 47.2
1.15 7.56 1.208 1743 55.44 71.0 69.4 102.0 56.3
1.25 7.97 1.312 1738 60.47 71.1 71.5 0.0 -
1.5 9.14 1.586 1722 73.28 70.6 75.5 0.0 -
SOURCE: CALCULATED GROUP: 3
