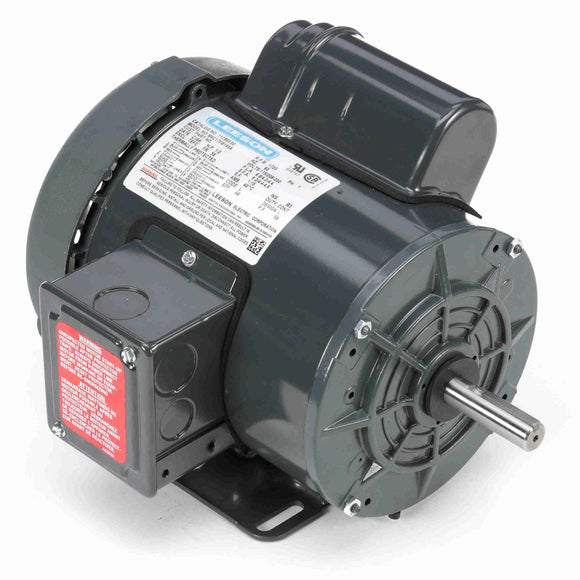

117863.00 Leeson 1/2HP Industry Agriculture High Torque Electric Motor, 1800RPM-1

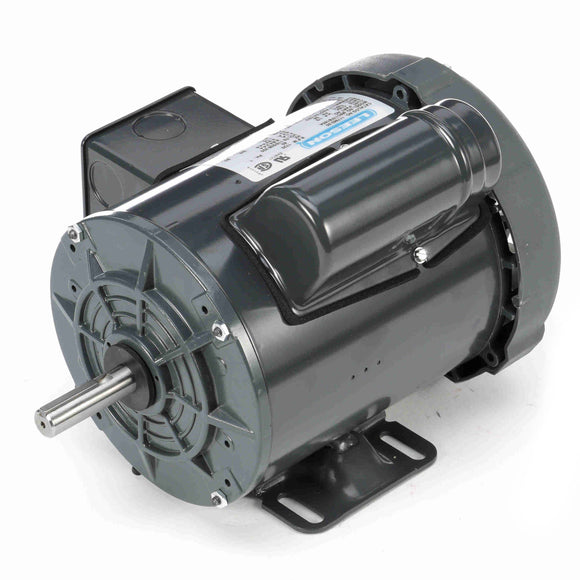

117863.00 Leeson 1/2HP Industry Agriculture High Torque Electric Motor, 1800RPM-2

117863.00 Leeson 1/2HP Industry Agriculture High Torque Electric Motor, 1800RPM

$905.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 117863.00 Barcode: 691720003640

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Manual overload protected
  • Double sealed ball bearings
  • Weather resistant reset button protection
  • Capacitor start provides high starting torque

General Specifications

General Specifications
Model : M6C17FB165A Catalog No : 117863.00
Part Description : ..1/2HP..1800RPM.56.TEFC.115/230V.1PH.60HZ.CONT.40C.1.15SF.RIGID......AG DUTY........ Category : Agricultural
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.50 HP Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 8.8/4.2-4.4 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 66 % Duty : Continuous
Insulation Class : B Design Code : L
KVA Code : L Frame : 56
Enclosure : Totally Enclosed Fan Cooled Overload Protector : Manual
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 11.82 in Frame Length : 6.56 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720003640
Weight : 26.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 11.80 72.30 1,486 2.20 0.50
Pull-Up 14.40 61.20 1,221 2.60 0.50
Locked-Rotor 21.30 83.80 0 4.50 0.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.50
  • 0.150
  • 0.0
  • 18.6
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 3.60
  • 0.245
  • 38.3
  • 29.6
  • 1,783
  • 0.0
  • 5.93
  • 50 %
  • 3.70
  • 0.345
  • 54.3
  • 40.5
  • 1,772
  • 0.0
  • 11.90
  • 75 %
  • 4.14
  • 0.480
  • 58.3
  • 50.3
  • 1,760
  • 0.0
  • 18.00
  • 100 %
  • 4.40
  • 0.565
  • 66.0
  • 58.0
  • 1,746
  • 55.0
  • 24.10
  • 115 %
  • 4.60
  • 0.660
  • 66.5
  • 61.0
  • 1,735
  • 65.0
  • 28.10
  • 125 %
  • 4.80
  • 0.695
  • 67.2
  • 63.0
  • 1,730
  • 0.0
  • 30.40
  • 150 %
  • 5.20
  • 0.825
  • 68.0
  • 69.0
  • 1,712
  • 0.0
  • 36.90
  • 175 %
  • 5.85
  • 0.980
  • 66.7
  • 72.8
  • 1,692
  • 0.0
  • 43.50
  • 200 %
  • 6.60
  • 1.160
  • 64.5
  • 76.4
  • 1,665
  • 0.0
  • 50.60
