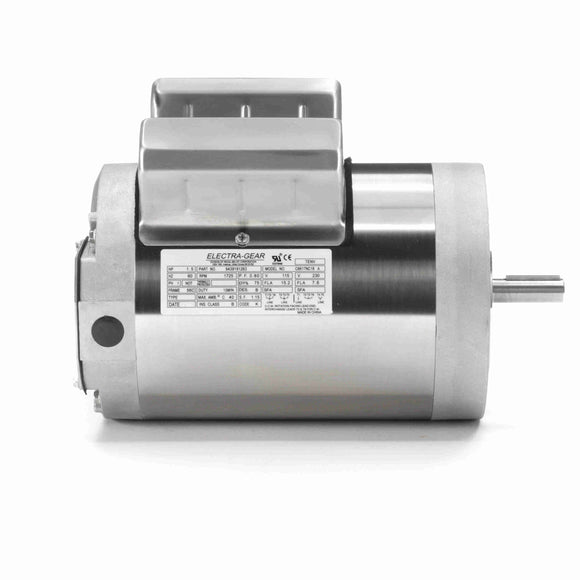

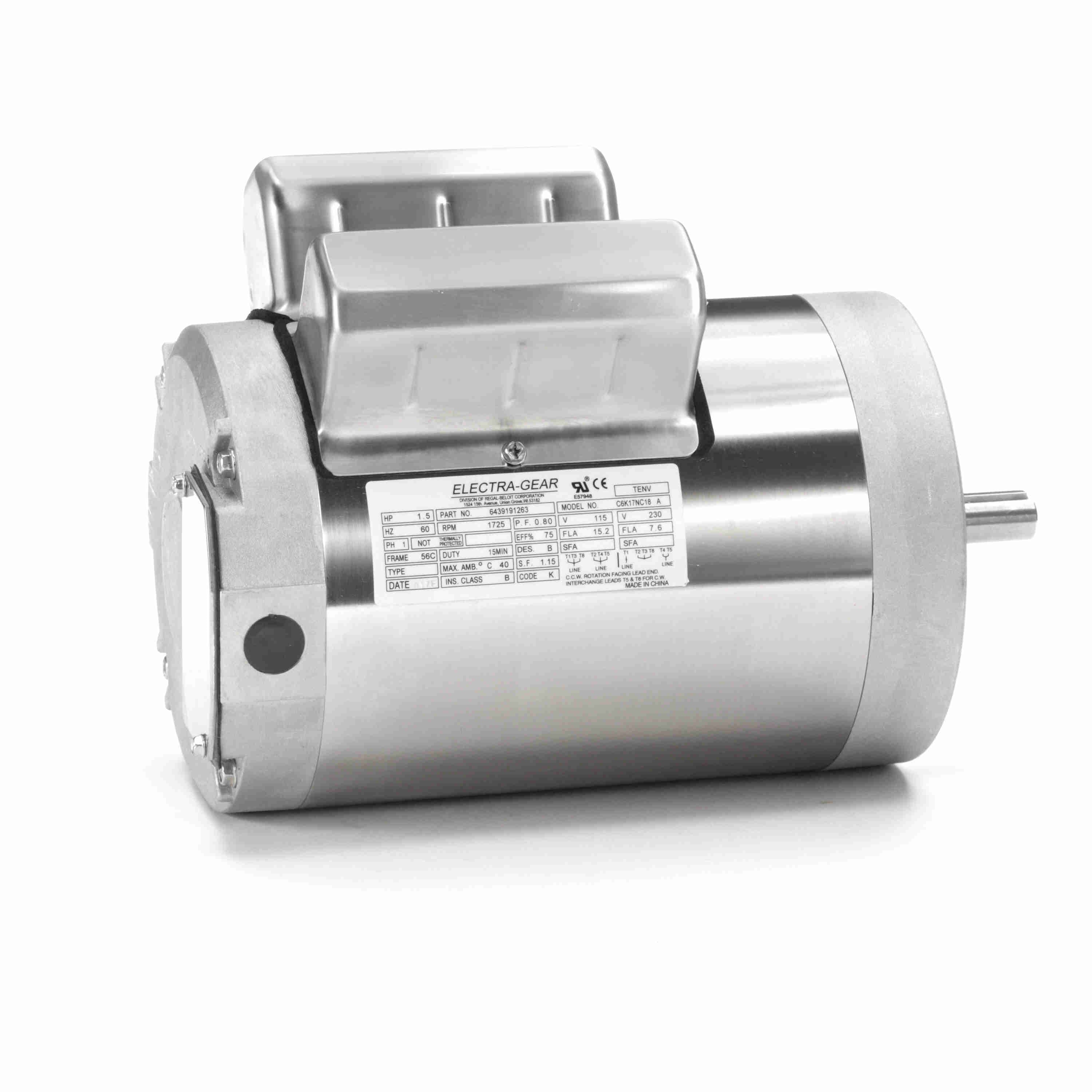

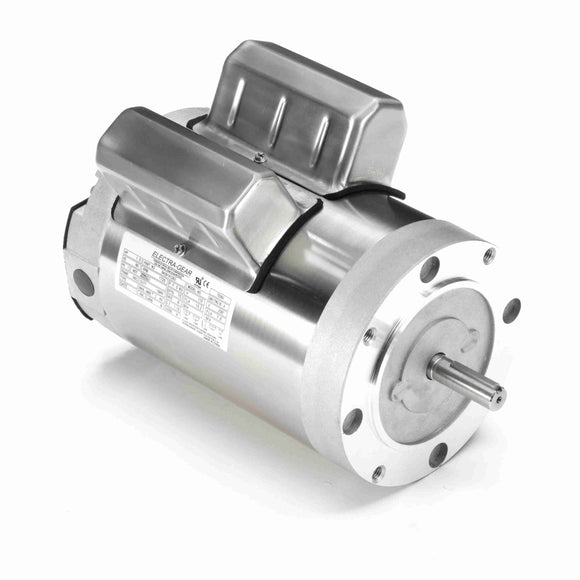

Features
- Stainless steel frame, base, capacitor case and conduit box cover
- 15 minute duty cycle
- Drain holes located at 6:00 position
- TENV enclosure
- Die cast Aluminum end bells
- Capacitor case located at 12:00
- 115/230 Volt – 1.15 S.F.
- UL recognized component listing and CSA approved
General Specifications
| Model : | C6K17NC18 A | Catalog No : | 6439191263 |
| Part Description : | 1.5HP..1800RPM.56C.TENV.115/230V.1PH.60HZ.15 MIN.NOT.40C.1.15SF.C-FACE.BOAT HOIST. | Category : | Boat Hoist Duty |
| Stock : | No |
Nameplate Specifications
| Output HP : | 1.50 Hp | Output KW : | 1.1 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 15.2/7.6 A | Speed : | 1725 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 75 % | Duty : | 15 Minute |
| Insulation Class : | B | Design Code : | N |
| KVA Code : | K | Frame : | 56C |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Stainless Steel | Shaft Type : | T |
| Overall Length : | 12.60 in | Frame Length : | 7.26 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720000083 |
| Weight : | 50.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 0.00 | 0.0 | 182.00 | 253.0 | 1,236 | 0.00 | 0.0 | 1.50 |
| Break-Down | 0.00 | 0.0 | 223.20 | 311.0 | 1,514 | 0.00 | 0.0 | 1.50 |
| Full Load | 7.80 | 100.0 | 71.80 | 100.0 | 1,755 | 1.37 | 76.6 | 1.50 |
| Locked-Rotor | 60.80 | 779.0 | 223.00 | 311.0 | 0 | 10.90 | 77.9 | 1.50 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 5.11
- 0.206
- 0.0
- 17.5
- 1,798
- 0.0
- 0.00
- 25 %
- 5.28
- 0.470
- 59.4
- 38.7
- 1,788
- 0.0
- 17.60
- 50 %
- 5.85
- 0.755
- 74.2
- 56.1
- 1,778
- 0.0
- 35.50
- 75 %
- 6.71
- 1.060
- 79.6
- 68.7
- 1,767
- 0.0
- 53.80
- 100 %
- 7.80
- 1.374
- 81.4
- 76.6
- 1,755
- 0.0
- 71.80
- 115 %
- 8.58
- 1.578
- 81.8
- 80.0
- 1,747
- 0.0
- 83.20
- 125 %
- 9.13
- 1.719
- 81.6
- 81.9
- 1,741
- 0.0
- 90.80
- 150 %
- 10.61
- 2.080
- 80.7
- 85.2
- 1,728
- 0.0
- 109.40
