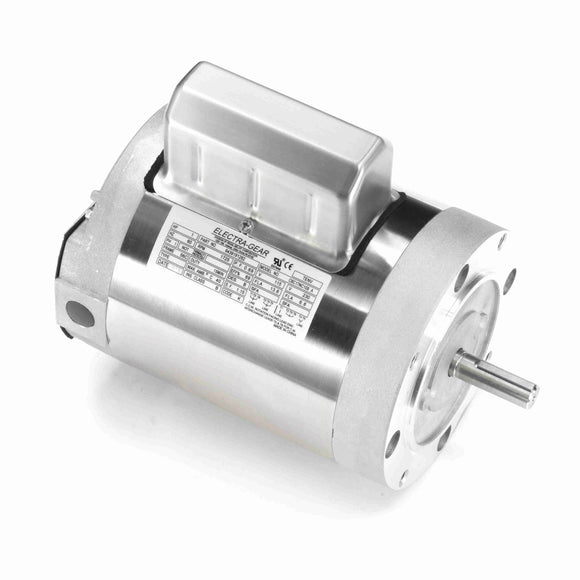

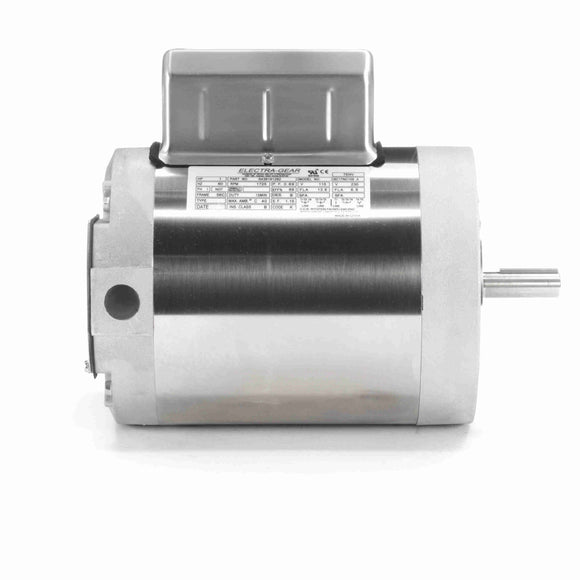

Features
- Stainless steel frame, base, capacitor case and conduit box cover
- 15 minute duty cycle
- Drain holes located at 6:00 position
- TENV enclosure
- Die cast Aluminum end bells
- Capacitor case located at 12:00
- 115/230 Volt – 1.15 S.F.
- UL recognized component listing and CSA approved
General Specifications
| Model : | C6C17NC109 A | Catalog No : | 6439191262 |
| Part Description : | 1HP..1800RPM.56C.TENV.115/230V.1PH.60HZ.15MIN.NOT.40C.1.15SF.C-FACE.BOAT HOIST. | Category : | Boat Hoist Duty |
| Stock : | No |
Nameplate Specifications
| Output HP : | 1 Hp | Output KW : | 0.75 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 13.6/6.8 A | Speed : | 1725 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 69 % | Duty : | 15 Minute |
| Insulation Class : | B | Design Code : | N |
| KVA Code : | K | Frame : | 56C |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Capacitor Start Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Stainless Steel | Shaft Type : | T |
| Overall Length : | 11.70 in | Frame Length : | 6.00 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720000038 |
| Weight : | 40.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 0.00 | 0.0 | 105.90 | 219.0 | 1,418 | 0.00 | 0.0 | 1.00 |
| Break-Down | 0.00 | 0.0 | 119.00 | 246.0 | 1,528 | 0.00 | 0.0 | 1.00 |
| Locked-Rotor | 36.47 | 568.0 | 152.30 | 315.0 | 10 | 7.29 | 86.9 | 1.00 |
| Full Load | 6.42 | 100.0 | 48.40 | 100.0 | 1,738 | 1.02 | 68.7 | 1.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 4.56
- 0.180
- 18.6
- 17.2
- 1,795
- 0.0
- 2.10
- 25 %
- 4.68
- 0.341
- 54.8
- 31.7
- 1,784
- 0.0
- 11.80
- 50 %
- 5.03
- 0.549
- 67.8
- 47.5
- 1,770
- 0.0
- 23.70
- 75 %
- 5.61
- 0.772
- 72.5
- 59.8
- 1,755
- 0.0
- 35.90
- 100 %
- 6.42
- 1.015
- 73.6
- 68.7
- 1,738
- 0.0
- 48.40
- 115 %
- 7.01
- 1.173
- 73.2
- 72.8
- 1,727
- 0.0
- 56.00
- 125 %
- 7.44
- 1.281
- 72.8
- 74.9
- 1,720
- 0.0
- 61.10
- 150 %
- 8.74
- 1.590
- 70.4
- 79.1
- 1,696
- 0.0
- 74.30
