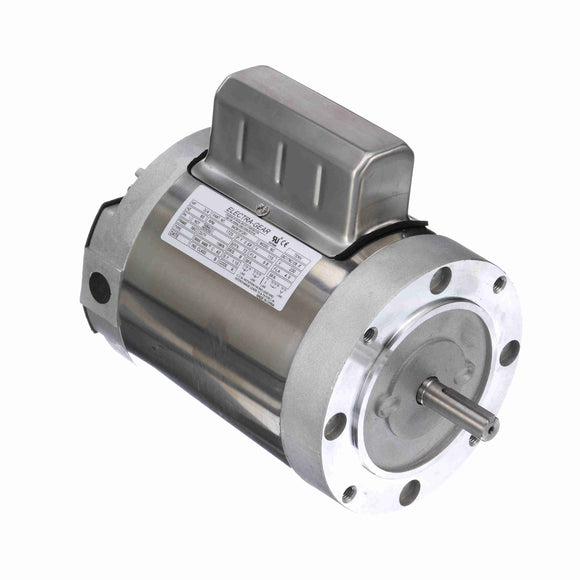

6439191261 Leeson 3/4HP Boat Hoist Electric Motor, 1800RPM-1

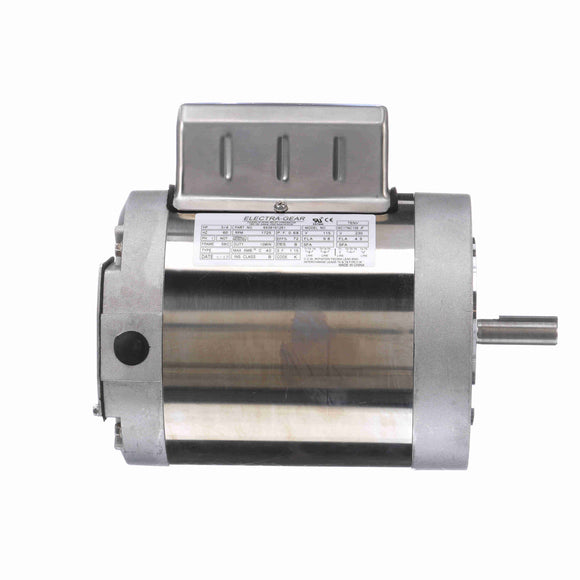

6439191261 Leeson 3/4HP Boat Hoist Electric Motor, 1800RPM-2

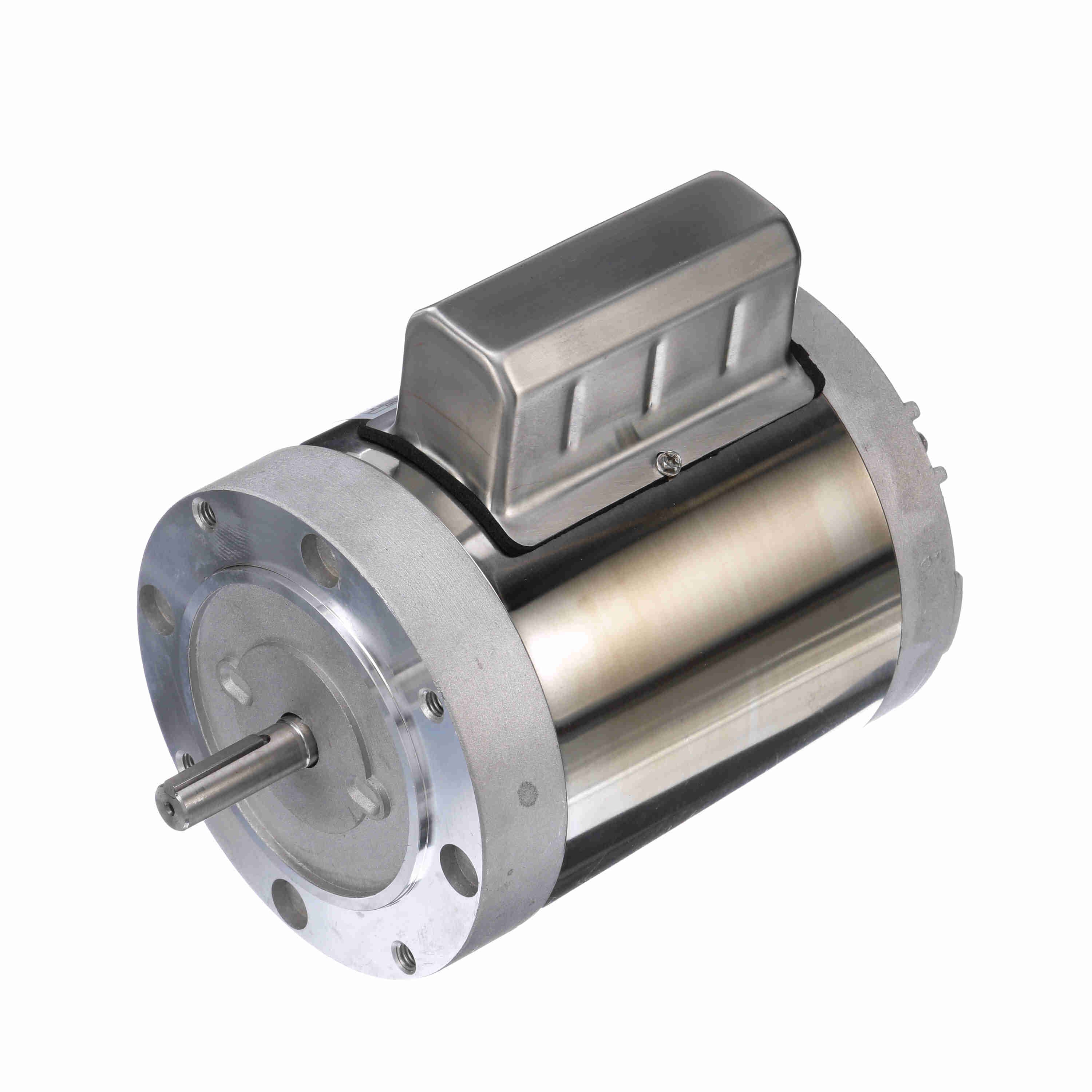

6439191261 Leeson 3/4HP Boat Hoist Electric Motor, 1800RPM-3

6439191261 Leeson 3/4HP Boat Hoist Electric Motor, 1800RPM

$1,437.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 6439191261 Barcode: 691720000014

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Stainless steel frame, base, capacitor case and conduit box cover
  • 15 minute duty cycle
  • Drain holes located at 6:00 position
  • TENV enclosure
  • Die cast Aluminum end bells
  • Capacitor case located at 12:00
  • 115/230 Volt – 1.15 S.F.
  • UL recognized component listing and CSA approved

General Specifications

General Specifications
Model : C6C17NC108 A Catalog No : 6439191261
Part Description : 3/4HP..1800RPM.56C.TENV.115/230V.1PH.60HZ.15 MIN.NOT.40C.1.15SF.C-FACE.BOAT HOIST. Category : Boat Hoist Duty
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.75 HP Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 9.8/4.9 A Speed : 1725 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 72 % Duty : 15 Minute
Insulation Class : B Design Code : N
KVA Code : K Frame : 56C
Enclosure : Totally Enclosed Non Ventilated Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Stainless Steel Shaft Type : T
Overall Length : 11.10 in Frame Length : 5.65 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720000014
Weight : 37.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 5.14 100.0 36.20 100.0 1,743 0.77 64.9 0.75
Locked-Rotor 29.79 580.0 114.10 315.0 10 5.88 85.8 0.75
Break-Down 14.51 282.0 98.30 272.0 1,519 2.70 80.9 0.75
Pull-Up 17.55 341.0 83.60 231.0 1,373 2.95 73.2 0.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.98
  • 0.187
  • 29.8
  • 20.4
  • 1,792
  • 0.0
  • 3.50
  • 25 %
  • 4.01
  • 0.276
  • 51.1
  • 29.9
  • 1,784
  • 0.0
  • 8.90
  • 50 %
  • 4.25
  • 0.429
  • 65.3
  • 43.9
  • 1,772
  • 0.0
  • 17.80
  • 75 %
  • 4.62
  • 0.592
  • 70.9
  • 55.7
  • 1,758
  • 0.0
  • 26.90
  • 100 %
  • 5.14
  • 0.767
  • 73.0
  • 64.9
  • 1,743
  • 0.0
  • 36.20
  • 115 %
  • 5.53
  • 0.881
  • 73.2
  • 69.3
  • 1,733
  • 0.0
  • 41.90
  • 125 %
  • 5.82
  • 0.959
  • 73.0
  • 71.6
  • 1,726
  • 0.0
  • 45.70
  • 150 %
  • 6.70
  • 1.179
  • 71.6
  • 76.5
  • 1,706
  • 0.0
  • 55.70
