Features
Features
- Brush holder design provides easy access to brushes
- Large oversized brushes assure long brush life
- Removable bolt-on base; NEMA C face designs
- 115 or 230 volt input power ratings – 90 / 180 volt output; Capable of dynamic braking
- PWM or SCR type controller rated; High starting torque
- Permanently lubricated sealed bearings
- LEESON SCR controls available to power motors; High starting torque
- Higher HP and speed achievable using PWM type DC controls
- UL and CSA Listed; Meets NEMA MG1 standards
- Dynamically balanced armatures; 30:1 constant torque operation
General Specifications
General Specifications

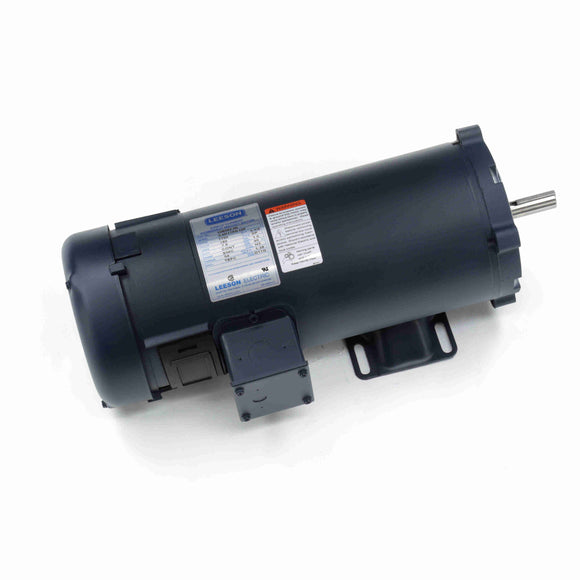

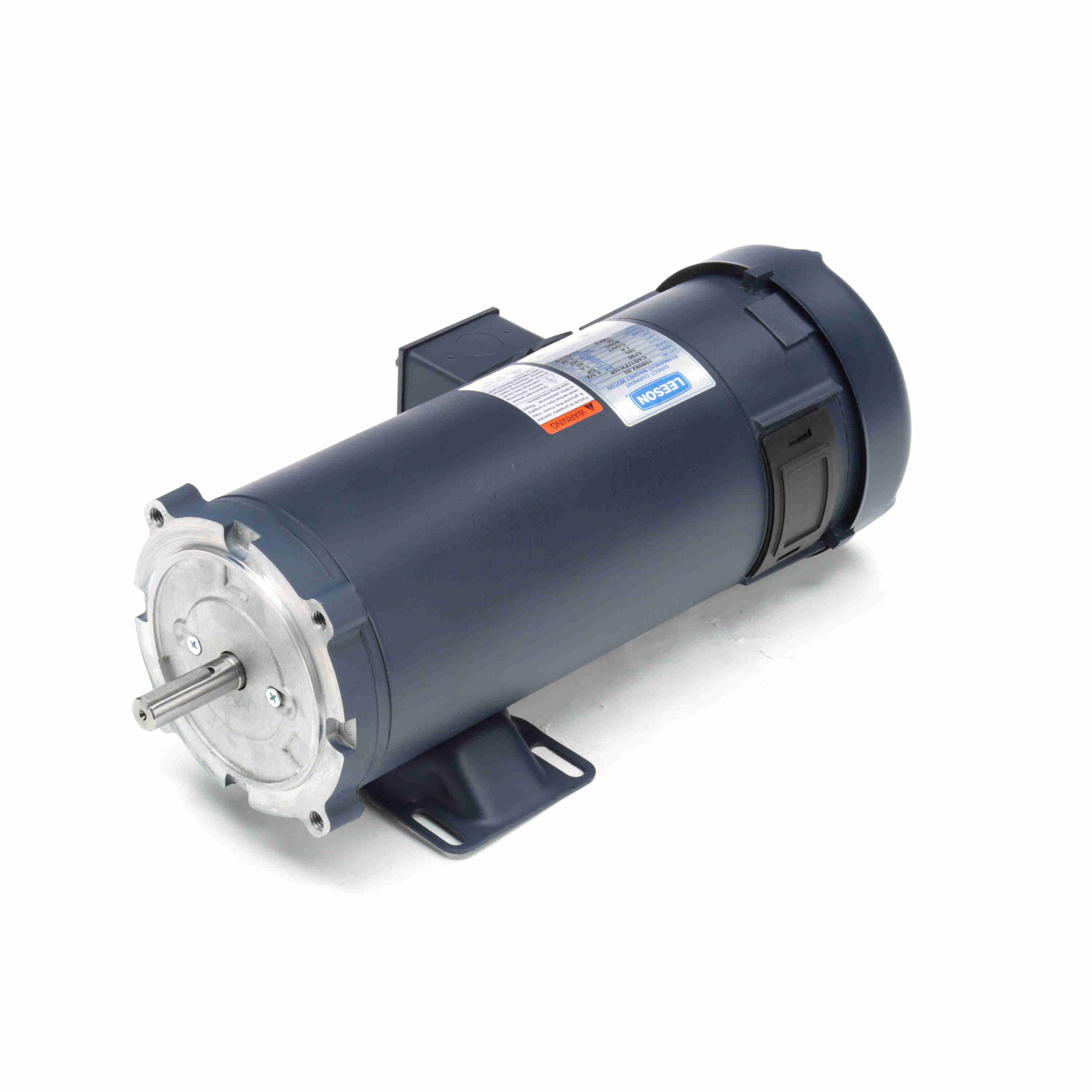

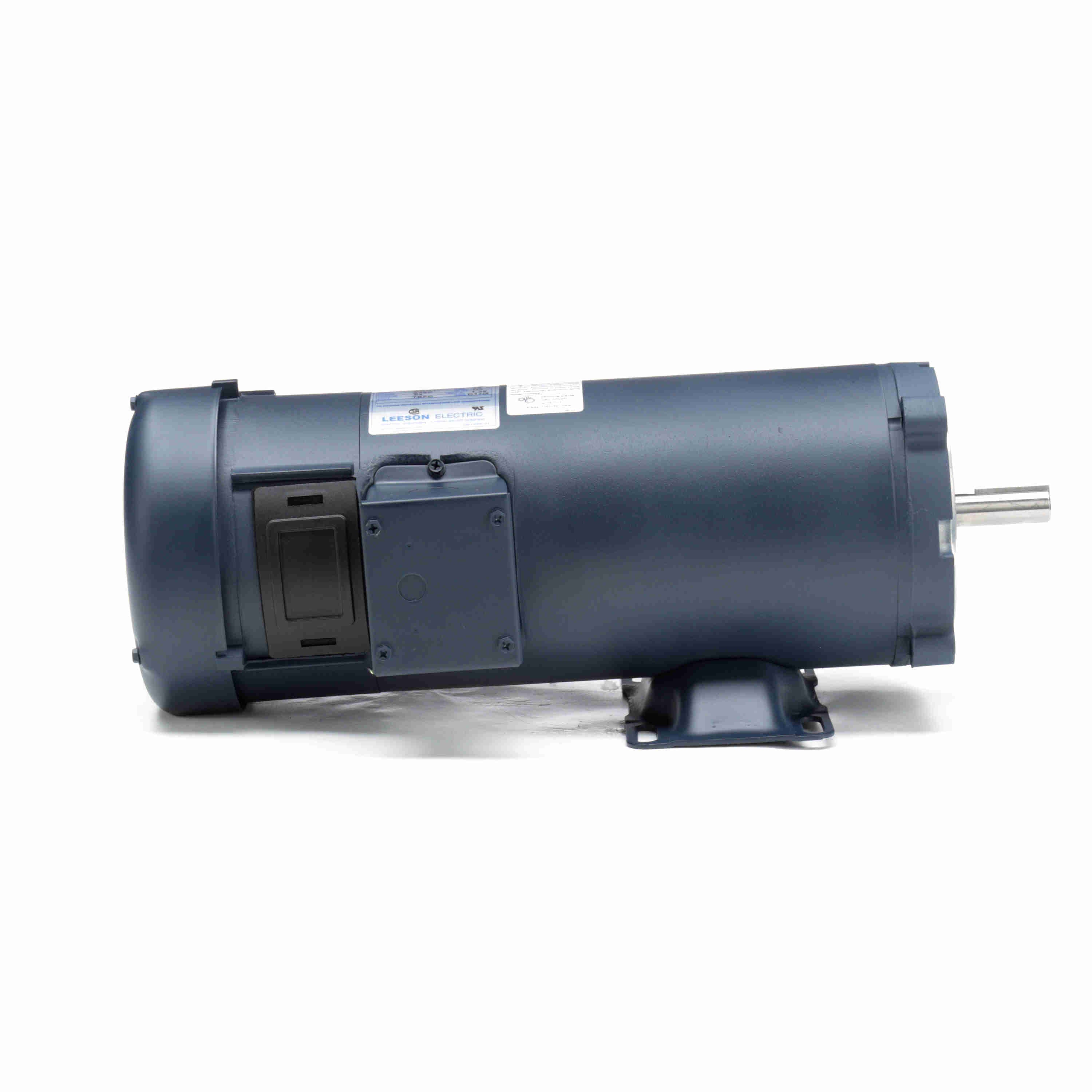

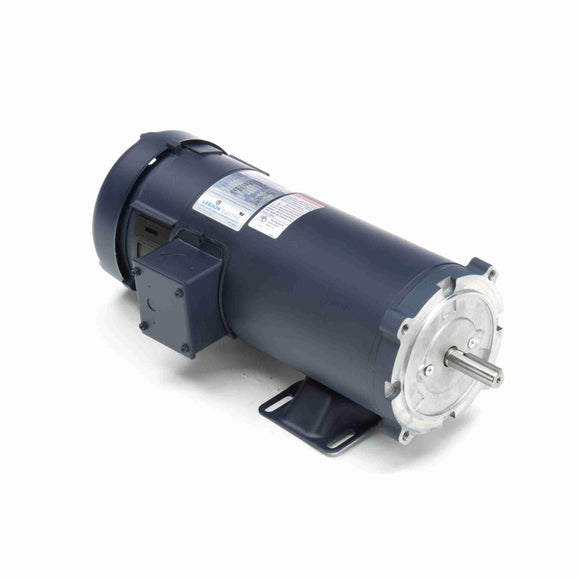

| Model : | C4D17FK10H | Catalog No : | 108092.00 |
| Part Description : | ..1 1/2HP..1750RPM.S56C.TEFC.180V...CONT.40C.1.0SF.RIGID C.C4D17FK10.....DC NEMA........ | Category : | SCR |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 1.50 Hp | Output KW : | 1.1 kW |
| Voltage : | 180 V | Current : | 7.6 A |
| Speed : | 1750 rpm | Service Factor : | 1 |
| Efficiency : | 86.5 % | Duty : | Continuous |
| Insulation Class : | H | Frame : | S56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
Technical Specifications
Technical Specifications
| Rotation : | Reversible | Mounting : | Rigid C base |
| Overall Length : | 16.82 in | Frame Length : | 9.47 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.06 in |
| UPC : | 691720006771 | Weight : | 51.00 LB |
