Features
Features
- Pressure encapsulation technology - winding end coils totally encapsulated
- 303 Stainless shaft
- Double sealed bearings
- FDA approved white finish coat
- Stainless laser etched nameplate
- 304 stainless steel conduit box cover and fan cover
- Repositionable drain plugs for use in multiple mounting positions
- Nylon seals at bolt heads for superior sealing
- Machined fits throughout
- USDA approved white epoxy finish
General Specifications
General Specifications

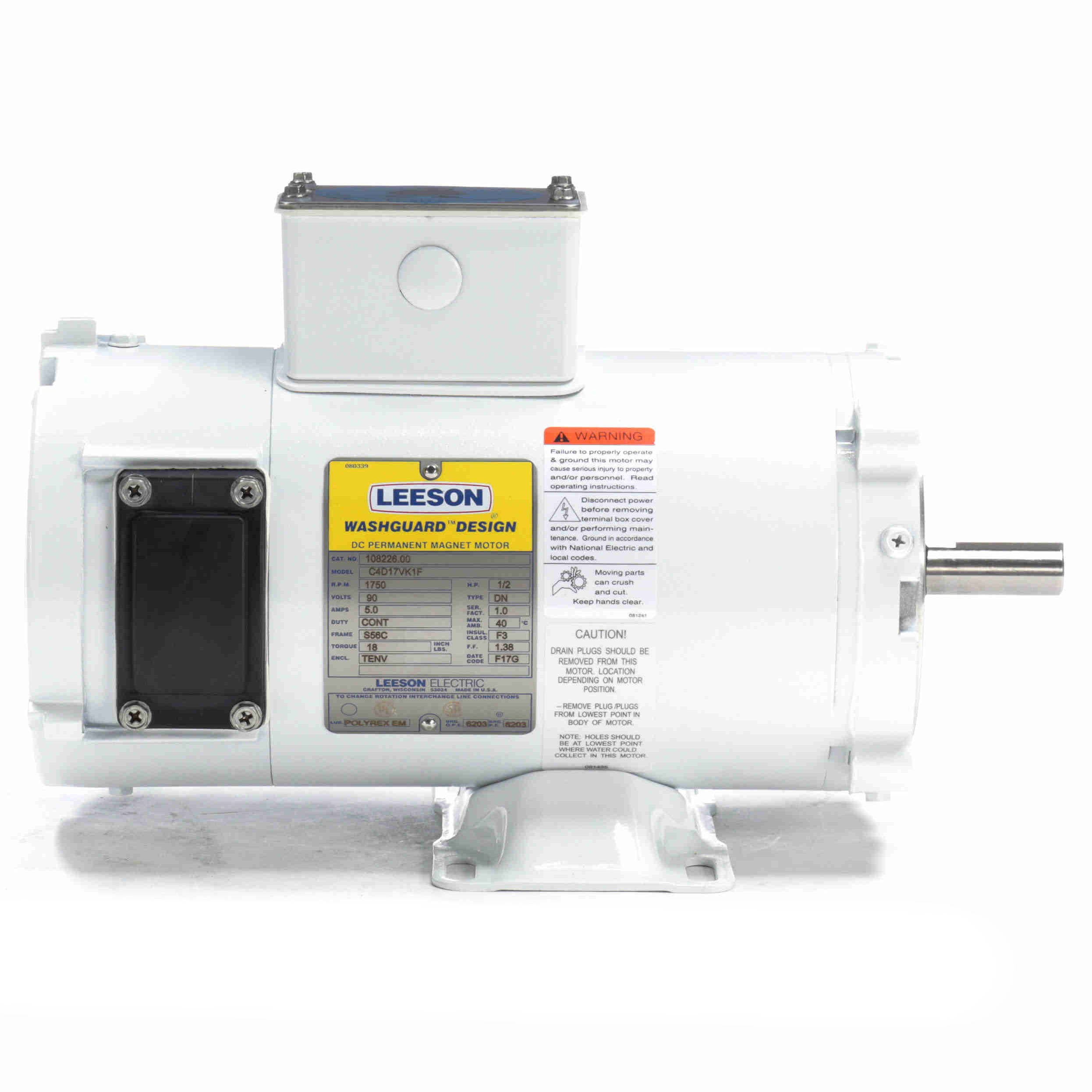

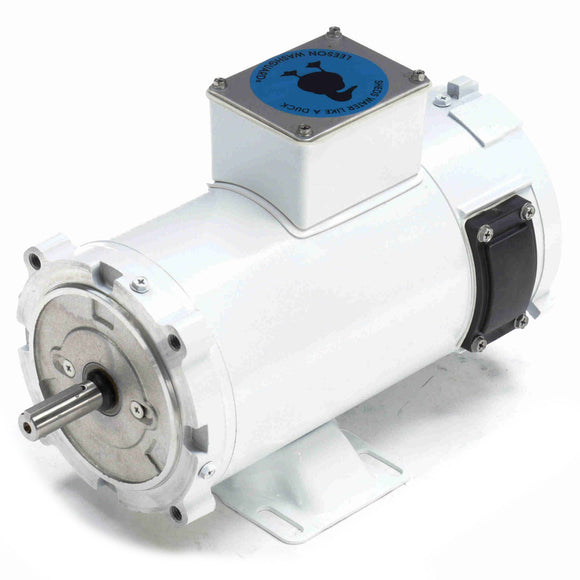

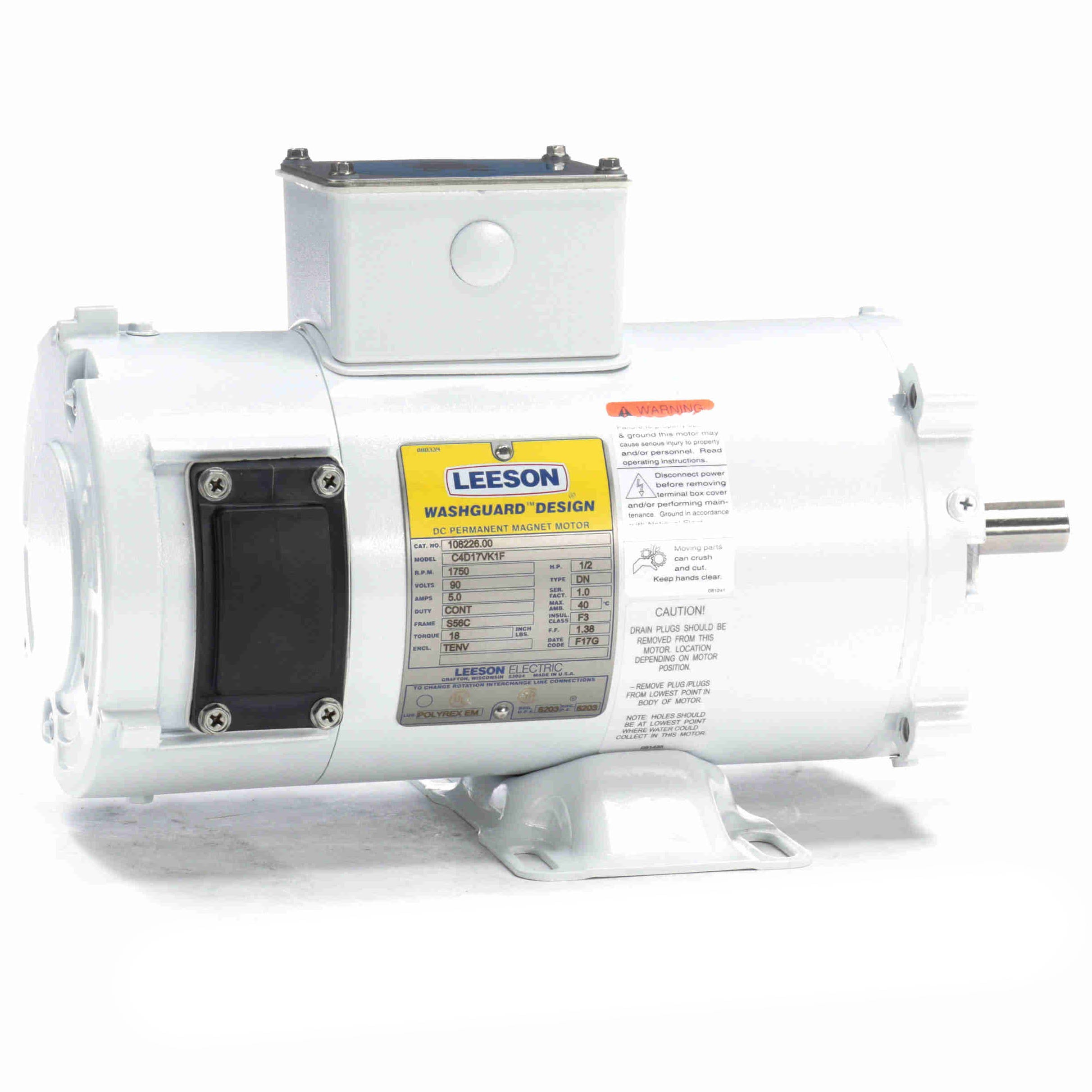

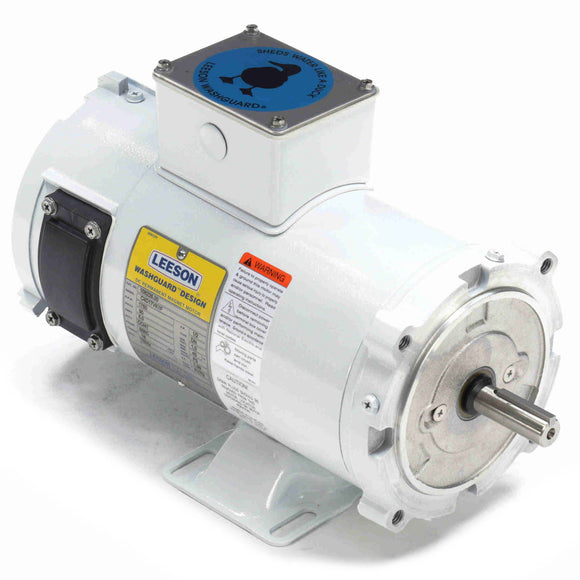

| Model : | C4D17VK1F | Catalog No : | 108226.00 |
| Part Description : | 1/2HP.1750RPM.S56C.TENV.90V.CONT.40C.1.0SF.RIGID C.WASHGUARD.C4D17VK1F | Category : | White Epoxy |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.50 Hp | Output KW : | 0.37 kW |
| Voltage : | 90 V | Current : | 5.0 A |
| Speed : | 1750 rpm | Service Factor : | 1 |
| Efficiency : | 81.1 % | Duty : | Continuous |
| Insulation Class : | F | Frame : | S56C |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
Technical Specifications
Technical Specifications
| Rotation : | Reversible | Mounting : | Rigid C base |
| Overall Length : | 13.13 in | Frame Length : | 6.97 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.06 in |
| UPC : | 691720006788 | Weight : | 41.00 LB |
