Features
Features
- Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life
- Heavy-duty, stamped steel, bolt on base (Removable)
- NEMA C face mounting flange at no additional cost; High strength rolled steel frame
- Rugged die cast end shields with steel bearing inserts
- Permanently lubricated sealed ball bearings
- High starting torques for heavy load applications
- Linear speed torque characteristics throughout the speed range
- Capable of dynamic braking for faster stops
- Reversible rotation; Simple two lead connection
General Specifications
General Specifications

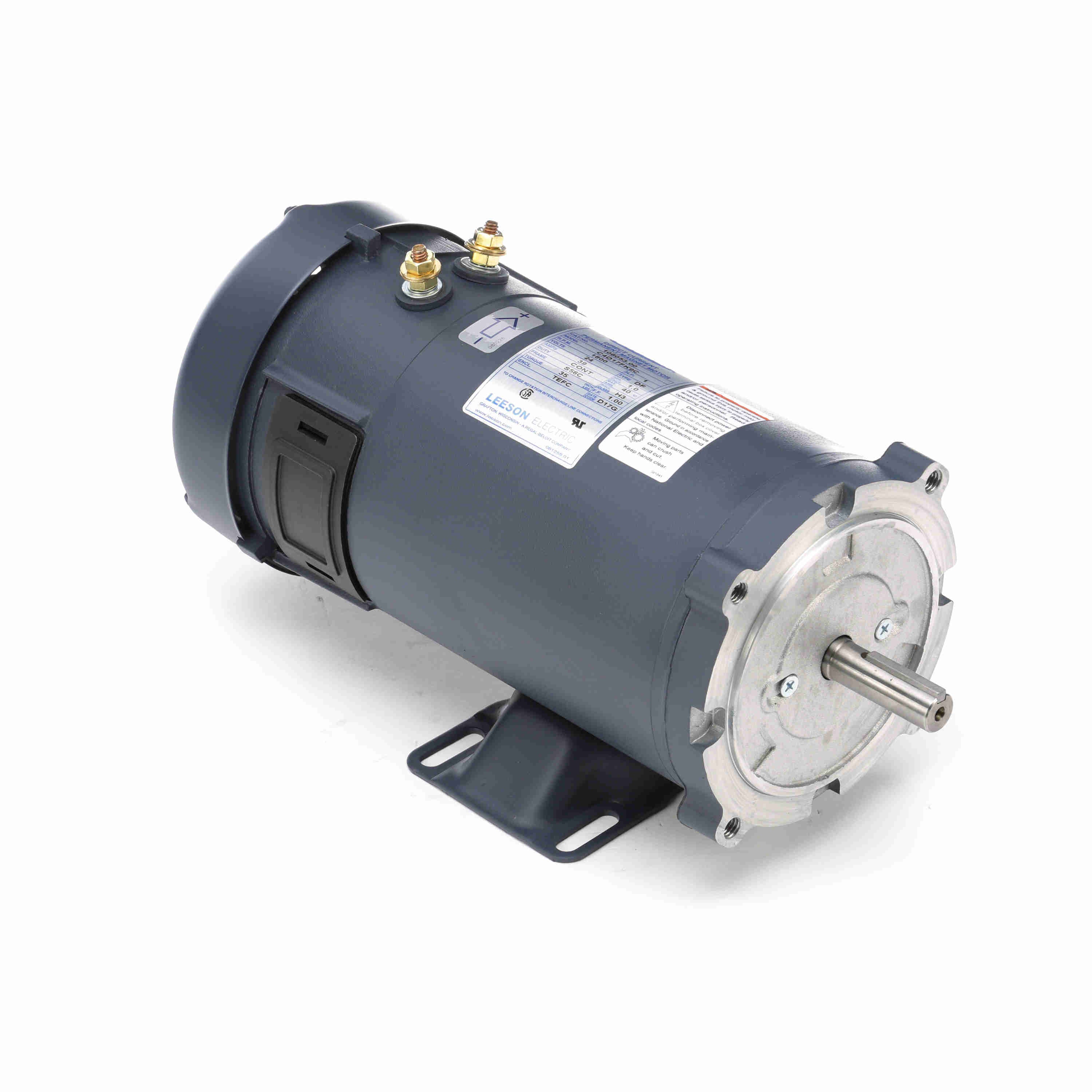

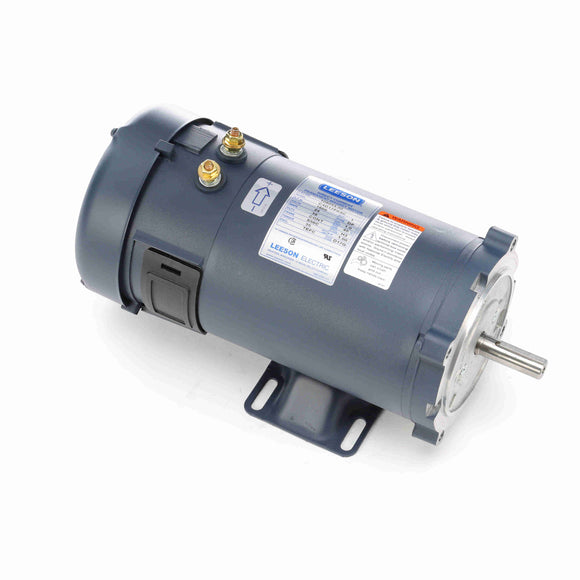

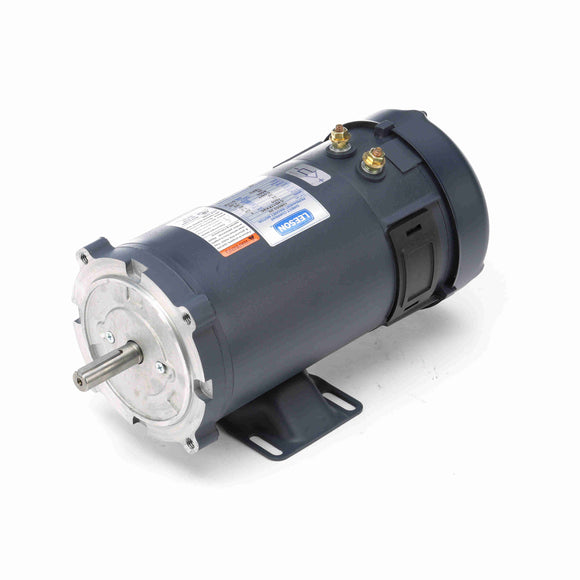

| Model : | C4D17FK9E | Catalog No : | 108053.00 |
| Part Description : | ..1HP..1800RPM.S56C.TEFC.24V...CONT.40C.1.0SF.RIGID C.C4D17FK9.....DC NEMA LOW VOLTAGE........ | Category : | Low Voltage |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 1 Hp | Output KW : | 0.75 kW |
| Voltage : | 24 V | Current : | 39.0 A |
| Speed : | 1800 rpm | Service Factor : | 1 |
| Efficiency : | 81.3 % | Duty : | Continuous |
| Insulation Class : | H | Frame : | S56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
Technical Specifications
Technical Specifications
| Rotation : | Reversible | Mounting : | Rigid C base |
| Overall Length : | 13.82 in | Frame Length : | 6.47 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.06 in |
| UPC : | 691720006764 | Weight : | 34.00 LB |
