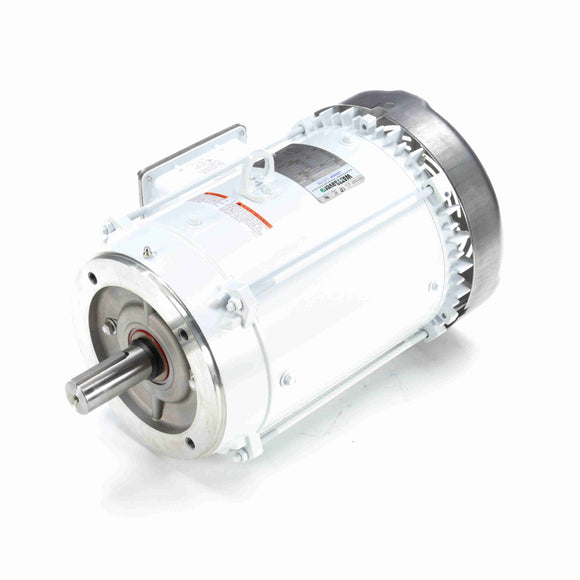

Leeson Washguard Electric Motor, 7.5 HP, 1800 RPM-1

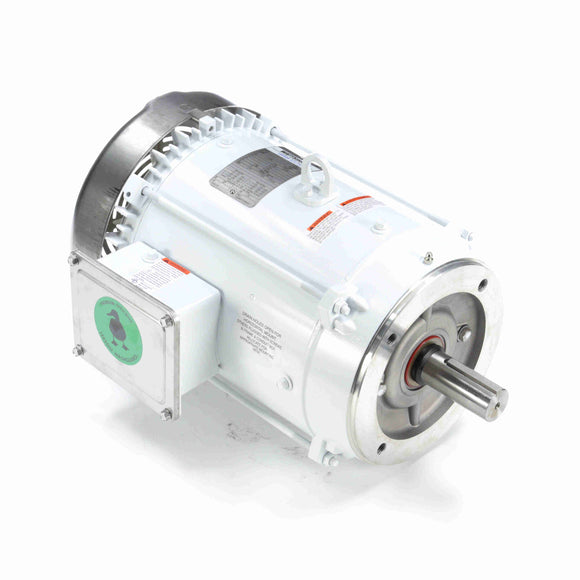

Leeson Washguard Electric Motor, 7.5 HP, 1800 RPM-2

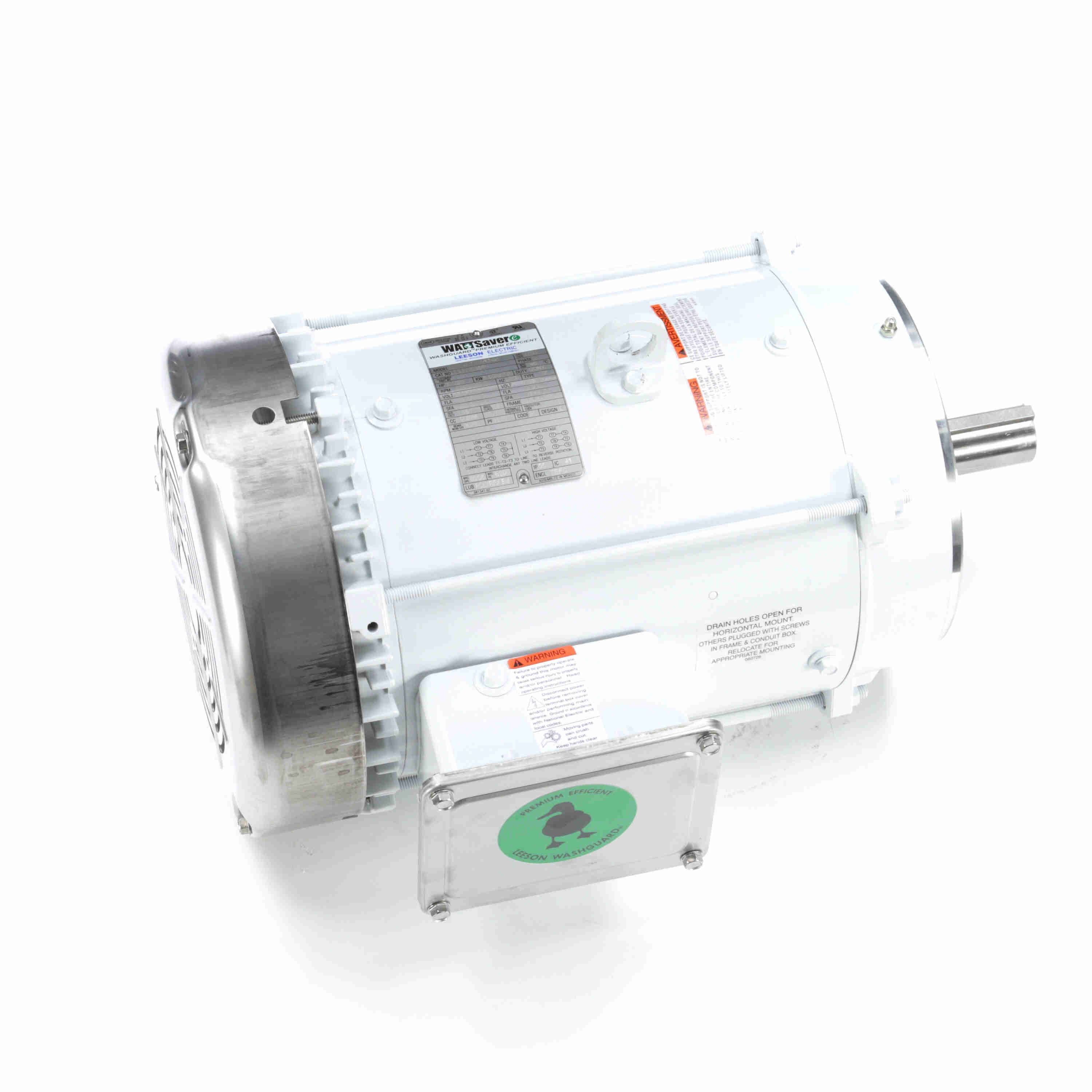

Leeson Washguard Electric Motor, 7.5 HP, 1800 RPM-3

Leeson Washguard Electric Motor, 7.5 HP, 1800 RPM

$1,669.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 141266.00 Barcode: 691720051887

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • Washdown brakemotors and pump motors available
General Specifications
Model : C213T17WC4A Catalog No : 141266.00
Part Description : ..7.5HP..1800RPM.213TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15 S.F..C FACE......WASHDOWN DUTY........ Category : General Purpose
Stock : No
Nameplate Specifications
Output HP : 7.50 Hp Output KW : 5.6 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 19.6/9.8 A Speed : 1765 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 91.7 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : H Frame : 213TC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Round Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 18.77 in Frame Length : 9.65 in
Shaft Diameter : 1.375 in Shaft Extension : 3.12 in
Assembly/Box Mounting : F1/F2 CAPABLE UPC : 691720051887
Weight : 135.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 67.50 635.0 52.90 238.0 0 0.00 42.6 7.50
Pull-Up 57.00 570.0 49.00 221.0 900 0.00 0.0 7.50
1/3 63.00 630.0 48.70 219.0 600 0.00 0.0 7.50
No Load 5.50 55.0 0.00 0.0 1,800 0.00 5.0 7.50
Break-Down 41.00 410.0 75.00 338.0 1,600 0.00 72.5 7.50
2/3 57.00 570.0 54.00 243.0 1,200 0.00 0.0 7.50
Full Load 10.00 100.0 22.20 100.0 1,770 0.00 0.0 7.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.90
  • 0.190
  • 0.0
  • 4.9
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 5.30
  • 1.620
  • 86.4
  • 38.4
  • 1,792
  • 0.0
  • 5.50
  • 50 %
  • 6.40
  • 3.080
  • 90.6
  • 60.4
  • 1,785
  • 0.0
  • 11.00
  • 75 %
  • 7.90
  • 4.570
  • 91.6
  • 72.6
  • 1,775
  • 0.0
  • 16.60
  • 100 %
  • 9.80
  • 6.115
  • 91.7
  • 78.3
  • 1,765
  • 50.0
  • 22.30
  • 115 %
  • 11.40
  • 7.020
  • 91.1
  • 77.3
  • 1,765
  • 70.0
  • 25.50
  • 125 %
  • 11.80
  • 7.715
  • 90.8
  • 82.1
  • 1,762
  • 85.0
  • 28.00
