Features
- USDA-approved epoxy painted motors
- NEMA motors
- AC washdown
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- Washdown brakemotors and pump motors available
General Specifications

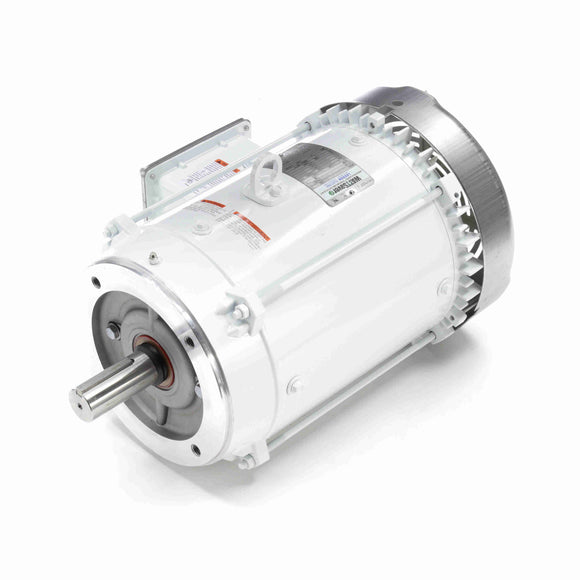

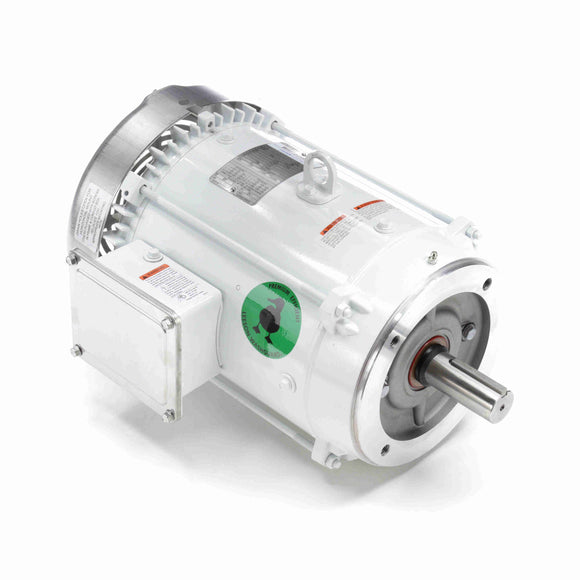

| Model : | C213T17WC5A | Catalog No : | 141267.00 |
| Part Description : | ..7.5HP..3600RPM.213TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15 S.F..C FACE......WASHDOWN DUTY........ | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 7.50 Hp | Output KW : | 5.6 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 18.6/9.3 A | Speed : | 3525 rpm |
| Service Factor : | 1 | Phase : | 3 |
| Efficiency : | 89.5 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | H | Frame : | 213TC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6309 |
| Opp Drive End Bearing Size : | 6206 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Reversible |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 18.77 in | Frame Length : | 9.65 in |
| Shaft Diameter : | 1.375 in | Shaft Extension : | 3.12 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720051894 |
| Weight : | 147.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 60.00 | 645.0 | 19.00 | 170.0 | 552 | 0.00 | 0.0 | 7.50 |
| 1/3 | 58.00 | 624.0 | 25.00 | 223.0 | 1,200 | 0.00 | 0.0 | 7.50 |
| No Load | 4.10 | 44.0 | 0.00 | 0.0 | 3,600 | 0.00 | 0.0 | 7.50 |
| Locked-Rotor | 63.00 | 677.0 | 19.30 | 172.0 | 0 | 0.00 | 0.0 | 7.50 |
| 2/3 | 48.00 | 516.0 | 30.00 | 268.0 | 2,400 | 0.00 | 0.0 | 7.50 |
| Break-Down | 38.00 | 409.0 | 33.00 | 295.0 | 3,130 | 0.00 | 74.7 | 7.50 |
| Full Load | 9.30 | 100.0 | 11.20 | 100.0 | 3,525 | 0.00 | 0.0 | 7.50 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 4.10
- 0.260
- 0.0
- 8.0
- 3,600
- 0.0
- 0.00
- 25 %
- 4.50
- 1.680
- 81.8
- 46.9
- 3,585
- 0.0
- 2.70
- 50 %
- 5.80
- 3.160
- 88.1
- 68.4
- 3,565
- 0.0
- 5.50
- 75 %
- 7.40
- 4.700
- 88.9
- 79.7
- 3,545
- 0.0
- 8.30
- 100 %
- 9.30
- 6.265
- 89.5
- 84.6
- 3,525
- 55.0
- 11.20
- 115 %
- 10.20
- 6.950
- 89.9
- 85.5
- 3,520
- 70.0
- 12.50
- 125 %
- 11.40
- 7.910
- 88.1
- 87.1
- 3,505
- 85.0
- 14.00
