Features
- USDA-approved epoxy painted motors
- NEMA motors
- AC washdown
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Washdown brakemotors and pump motors available
- UL recognized and CSA certified
General Specifications

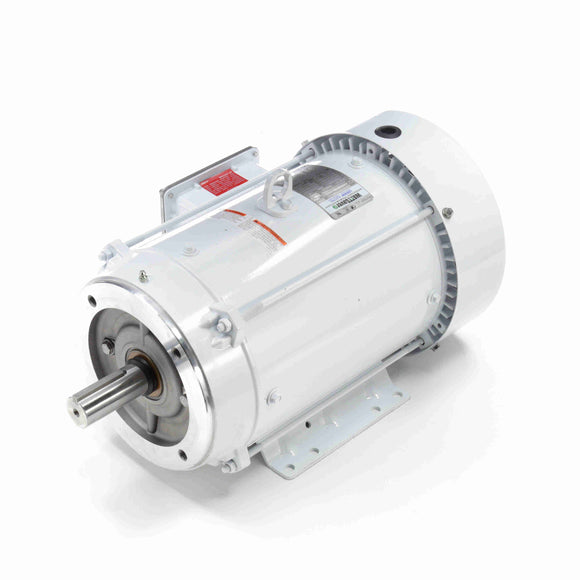

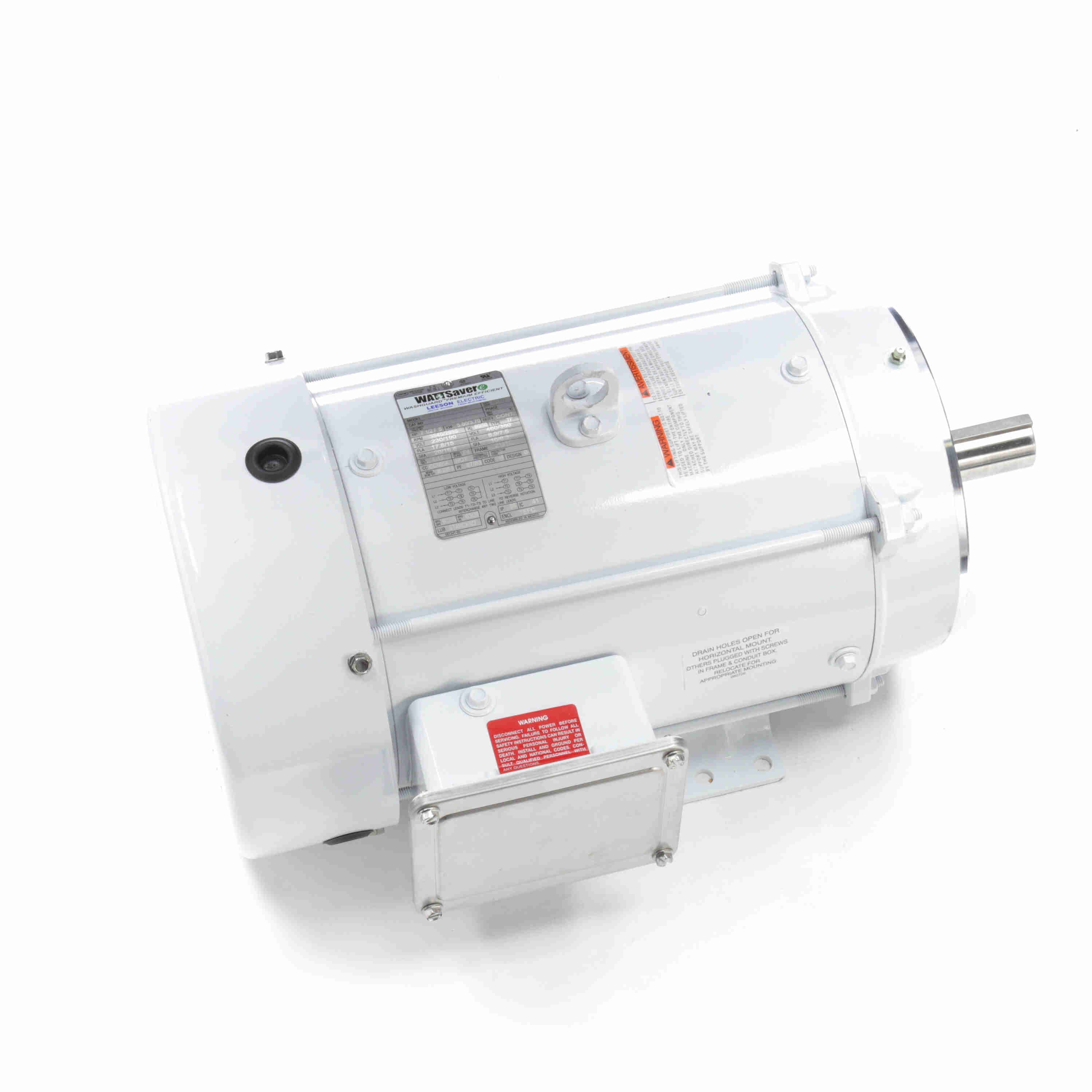

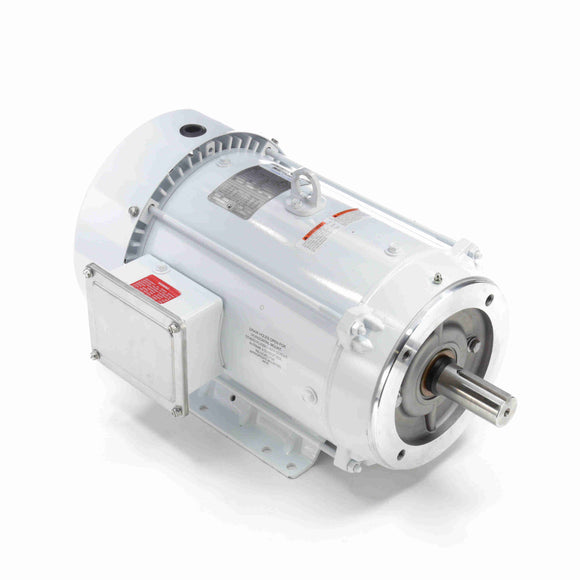

| Model : | C213T34WK6A | Catalog No : | 141120.00 |
| Part Description : | ..7 1/2HP..3600RPM.213TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID-C......WASHDOWN DUTY........ | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 7.50 Hp | Output KW : | 5.6 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 17.8/8.9 A | Speed : | 3540 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 90.2 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | H | Frame : | 213TC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6309 |
| Opp Drive End Bearing Size : | 6206 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Inverter Rated | Starting Method : | Line Or Inverter |
| Poles : | 2 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 20.57 in | Frame Length : | 11.15 in |
| Shaft Diameter : | 1.375 in | Shaft Extension : | 3.38 in |
| Assembly/Box Mounting : | F1/F2 CAPABLE | UPC : | 691720303429 |
| Weight : | 140.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| 1/3 | 60.00 | 674.0 | 20.00 | 180.0 | 1,200 | 7.50 | ||
| 2/3 | 54.00 | 607.0 | 25.00 | 225.0 | 2,400 | 7.50 | ||
| Locked-Rotor | 63.50 | 713.0 | 24.00 | 216.0 | 0 | 40.0 | 7.50 | |
| Break-Down | 40.00 | 449.0 | 38.00 | 342.0 | 3,250 | 72.0 | 7.50 | |
| Full Load | 8.90 | 100.0 | 11.10 | 100.0 | 3,540 | 7.50 | ||
| No Load | 3.00 | 34.0 | 0.00 | 0.0 | 3,600 | 7.50 | ||
| Pull-Up | 57.00 | 640.0 | 22.00 | 198.0 | 1,800 | 7.50 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 3.00
- 0.200
- 0.0
- 9.0
- 3,600
- 0.0
- 0.00
- 25 %
- 4.00
- 1.500
- 80.0
- 54.0
- 3,585
- 0.0
- 2.50
- 50 %
- 5.00
- 3.000
- 86.5
- 74.5
- 3,575
- 0.0
- 5.50
- 75 %
- 7.00
- 4.500
- 89.5
- 83.0
- 3,560
- 0.0
- 8.50
- 100 %
- 8.90
- 6.000
- 90.2
- 87.0
- 3,540
- 40.0
- 11.10
- 115 %
- 10.00
- 6.500
- 90.2
- 88.0
- 3,535
- 60.0
- 12.50
- 125 %
- 11.00
- 7.500
- 89.5
- 89.0
- 3,530
- 0.0
- 14.00
