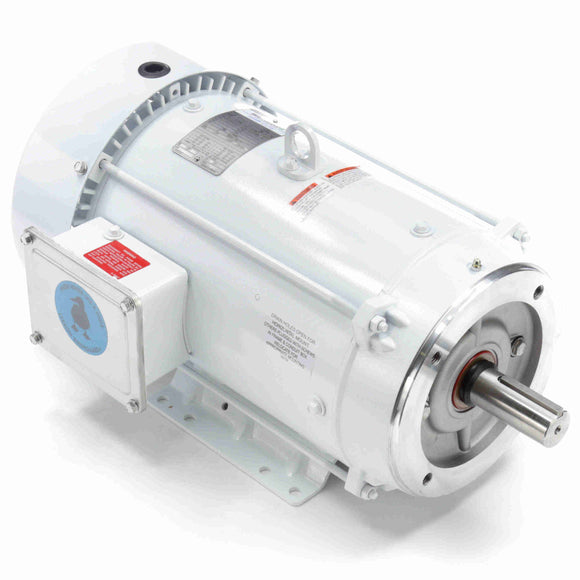

Leeson Washguard Electric Motor, 10 HP, 3600 RPM

$2,199.97

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 140823.00 Barcode: 691720980095

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model : C215T34WK9A Catalog No : 140823.00
Part Description : ..10HP..3525RPM.215TC.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C215T34WK9A.....WASHGUARD.NOT....... Category : General Purpose
Stock : No
Nameplate Specifications
Output HP : 10 Hp Output KW : 7.5 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 23.6/11.8 A Speed : 3535 rpm
Service Factor : 1.15 Phase : 3
Efficiency : 91.7 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : H Frame : 215TC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 309
Opp Drive End Bearing Size : 206 UL : Recognized
CSA : Y CE : Y
IP Code : 55
Technical Specifications
Electrical Type : Squirrel Cage Inverter Rated Starting Method : Line Or Inverter
Poles : 2 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 21.82 in Frame Length : 12.40 in
Shaft Diameter : 1.375 in Shaft Extension : 3.38 in
Assembly/Box Mounting : F1/F2 CAPABLE UPC : 691720980095
Weight : 164.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
1/3 76.00 644.0 26.00 174.0 1,200 10.00
No Load 3.50 30.0 0.00 0.0 3,600 10.00
Pull-Up 72.00 610.0 27.00 181.0 1,800 10.00
2/3 68.00 576.0 32.00 215.0 2,400 10.00
Locked-Rotor 80.00 678.0 30.00 201.0 0 40.0 10.00
Full Load 11.80 100.0 14.90 100.0 3,535 10.00
Break-Down 50.00 424.0 46.00 309.0 3,175 73.0 10.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.50
  • 0.300
  • 0.0
  • 8.5
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 4.50
  • 2.000
  • 88.0
  • 58.5
  • 3,585
  • 0.0
  • 3.50
  • 50 %
  • 6.50
  • 4.000
  • 91.7
  • 78.5
  • 3,570
  • 0.0
  • 7.50
  • 75 %
  • 9.00
  • 6.000
  • 92.4
  • 86.0
  • 3,555
  • 0.0
  • 11.00
  • 100 %
  • 11.80
  • 8.000
  • 91.7
  • 87.0
  • 3,535
  • 50.0
  • 14.90
  • 115 %
  • 13.00
  • 9.500
  • 91.7
  • 89.0
  • 3,530
  • 75.0
  • 17.00
  • 125 %
  • 14.00
  • 10.000
  • 91.7
  • 90.0
  • 3,525
  • 95.0
  • 18.50
